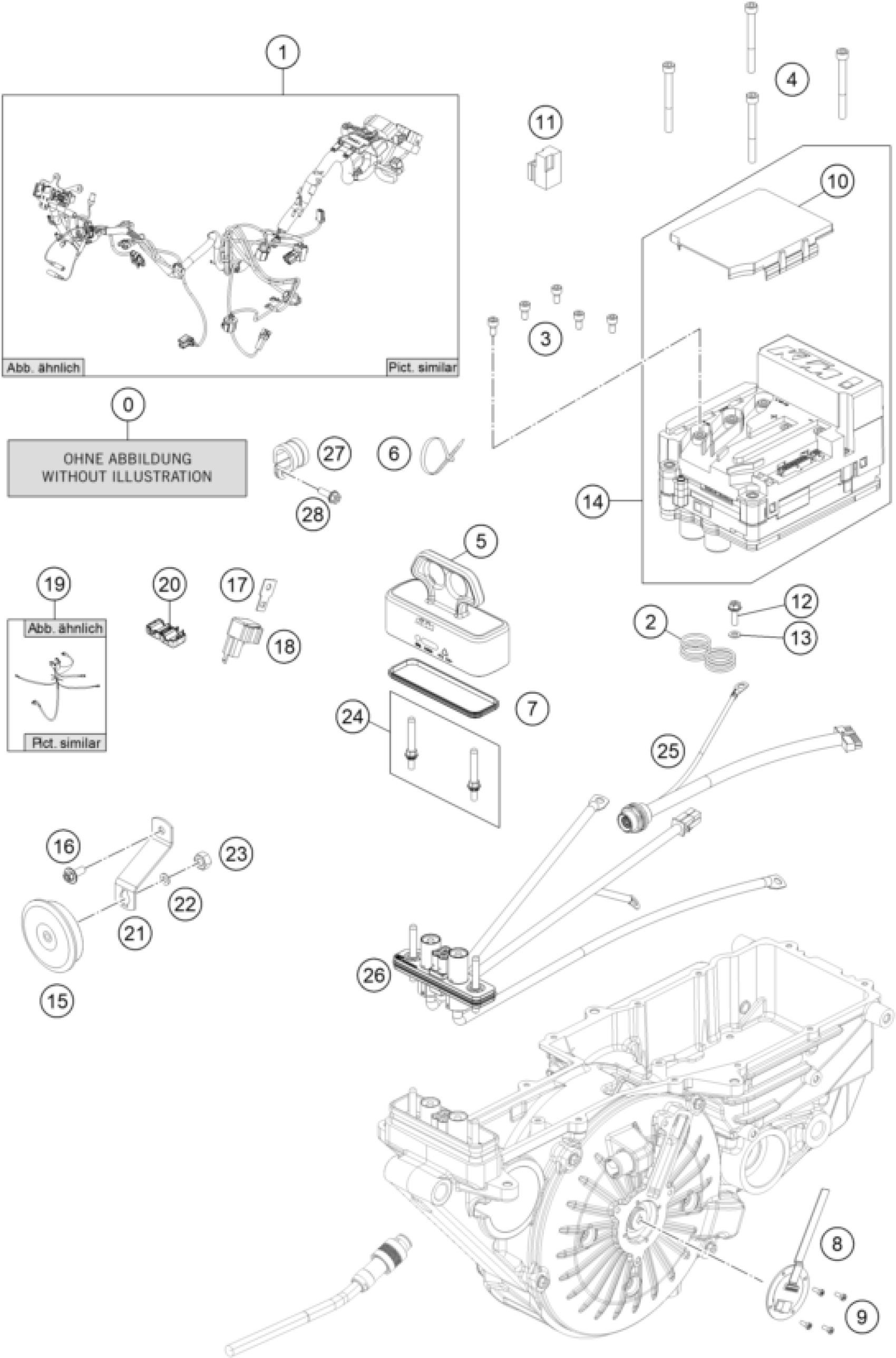

KTM FREERIDE E-XC 2015 WIRING HARNESS Diagram

#

Description
Price

6

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

MAIN WIRING HARNESS CPL. EXC

70011075250

Unavailable

2

o-ring 22.00X2.00 NBR70

0770220020

Unavailable

3

AH SCREW DIN 0912 M5X10

0912050107

Unavailable

4

HH collar screw M6x60 TX30

0025060606

Unavailable

5

HV-PLUG COVER CAP

70029001005

Unavailable

6

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

6

Cable tie 200/4.6mm black

44011076200

Unavailable

7

SEAL HV-PLUG

70045002100

Unavailable

8

SPEED SENSOR

70045061000

Unavailable

9

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

Unavailable

10

COVER SMALL ENGINE ELECTRONIC

70045160050

Unavailable

12

HH collar screw M5x16 TX30

0025050166

Unavailable

13

WASHER DIN0125-A 5,3

0125050003

Unavailable

14

ENGINE ELECTRONIC ASSY

70045160100

Unavailable

15

DC HORN 12V 07

50311060200

Unavailable

16

HH collar screw M6x15 TX30

0024060156

Unavailable

21

HORN BRACKET EXC 08

78011061000

Unavailable

22

WASHER DIN0125-A 5,3

0125050003

Unavailable

23

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

17

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

18

FLASHER UNIT

76511030000

Unavailable

20

SNAP FERRITE

70011010000

Unavailable

19

FLASHER HARNESS

72511081000

Unavailable

24

CONTACT PIN (SET)

70045073050

Unavailable

0

WIRING HARNESS LIGHT

70011076000

Unavailable

27

CLAMP RSGU 18/15 03

59007439000

Unavailable

11

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

25

ENGINE WIRE HARNESS

70045070000

Unavailable

26

WIRING HARNESS ECU

70045073000

Unavailable

28

HH collar screw M5x16 TX30

0025050166

Unavailable
