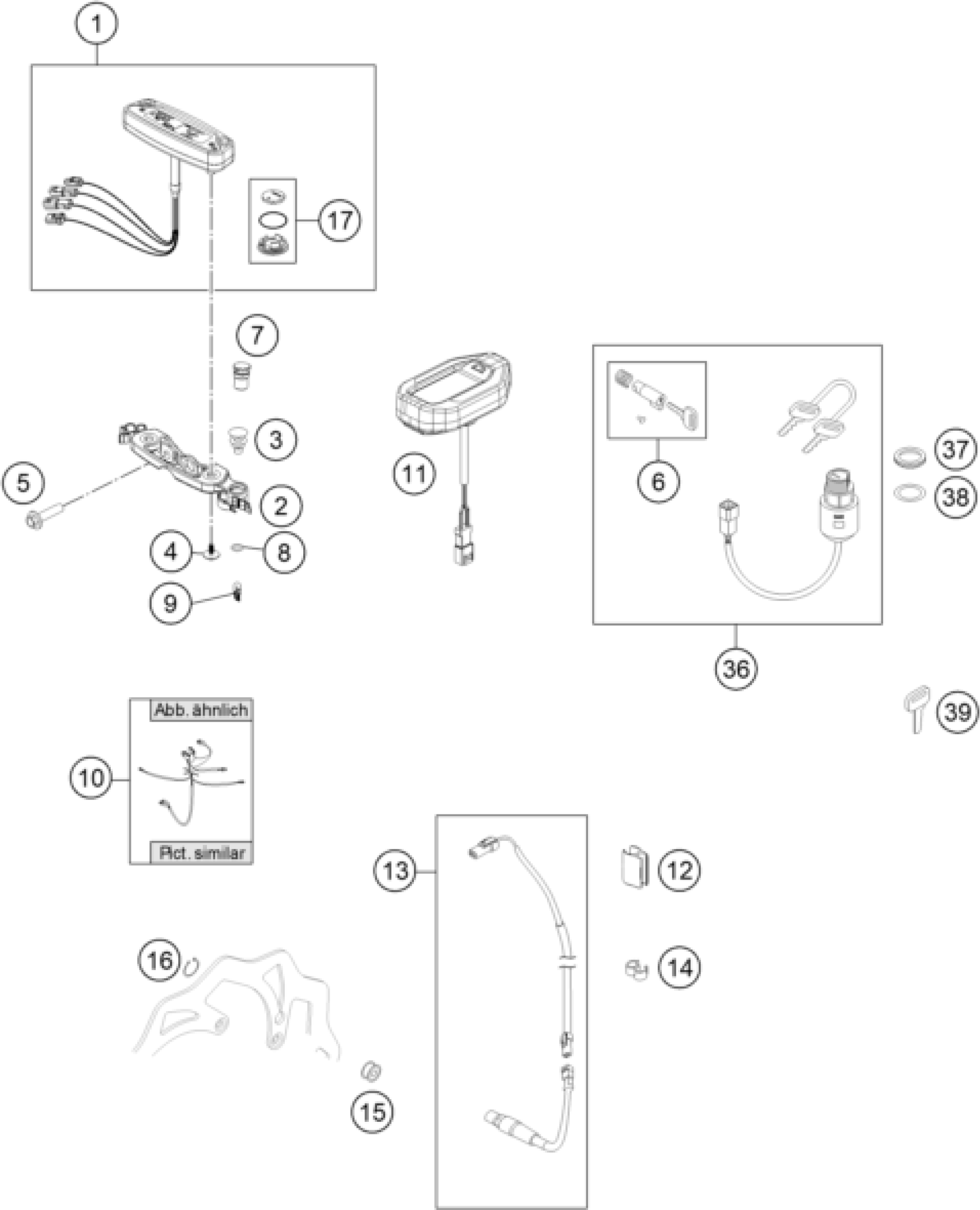

KTM FREERIDE E-XC 2015 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

2

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

Unavailable

4

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

5

HH collar screw M6x20 TX30

0025060206

Unavailable

37

IGNITION LOCK NUT M24X1

50311066050

Unavailable

39

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

1

SPEEDOMETER DIGITAL KM/H 21''

81314069100

Unavailable

36

LOCK SYSTEM

70011066044

Unavailable

3

Plug SFL16

50210086000

Unavailable

6

STEERING HEAD LOCK 08

78003035000

Unavailable

7

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

8

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

9

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

10

FLASHER HARNESS

72511081000

Unavailable

11

BATTERY CHARGING-LEVEL CONTROL

70045090000

Unavailable

12

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

14

CLIP 5/7 MM 06

60111094000

Unavailable

13

CABLE FOR SPEEDOMETER

81314068000

Unavailable

15

MAGNET FOR SPEEDOMETER

81314069050

Unavailable

16

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

38

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

17

BATTERY COVER F. SPEEDOMETER

81314069010

Unavailable
