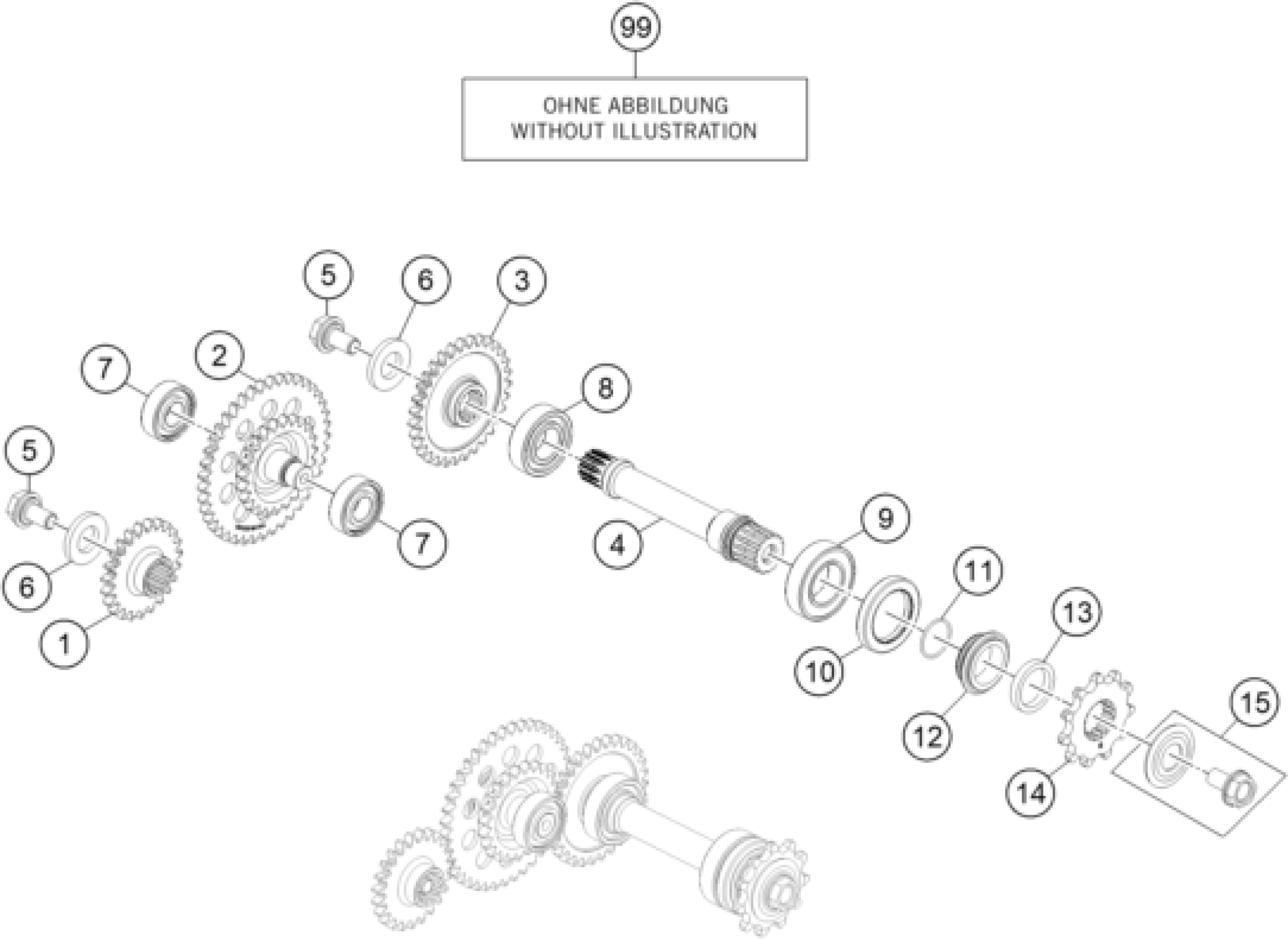

KTM FREERIDE E-SX 2015 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

5

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

15

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

1

MAIN GEAR T23

70045024000

Unavailable

6

WASHER 17X32X4 03

60039040010

Unavailable

8

BALL BEARING 6004 C3

0625204212

Unavailable

7

BALL BEARING 6202 C0 2

0625062022

Unavailable

9

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

2

IDLER GEAR Z23/Z41

70045023100

Unavailable

4

COUNTER SHAFT

70045022200

Unavailable

3

COUNTER GEAR T31

70045025000

Unavailable

14

SPROCKET

50033029011

Unavailable

12

SPACER SLEEVE COUNTER

78133014000

Unavailable

11

O-RING 22X1,5 NBR70

0770220015

Unavailable

10

radial shaft seal 32x47x7BSL V

0760324773

Unavailable

13

SPACER SLEEVE 25X32X5

70045026000

Unavailable

99

REP. KIT E-ENGINE

70030098000

Unavailable
