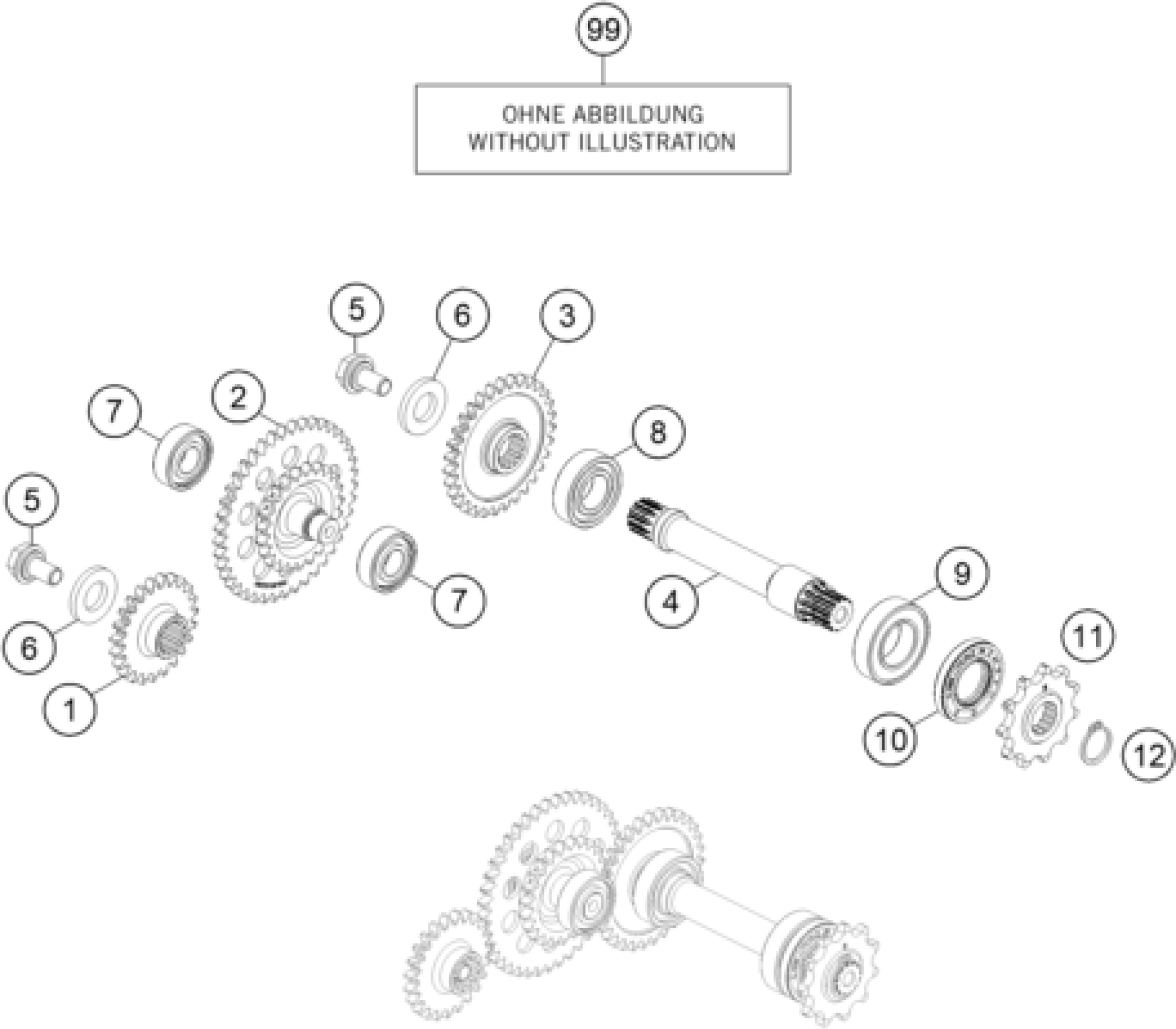

KTM FREERIDE E-SX 2014 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN GEAR T23

70045024000

Unavailable

2

IDLER GEAR Z23/Z41

70045023100

Unavailable

3

COUNTER GEAR T31

70045025000

Unavailable

4

COUNTERSHAFT

70045022100

Unavailable

5

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

6

WASHER 17X32X4 03

60039040010

Unavailable

7

BALL BEARING 6202 C0 2

0625062022

Unavailable

8

BALL BEARING 6004 C3

0625204212

Unavailable

9

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

10

SHAFT SEAL RING 25X47X7 NBR

0760254770

Unavailable

11

SPROCKET 10Z

70033029010

Unavailable

12

CIRCLIP AS20X1,75

49033091000

Unavailable

99

REP. KIT E-ENGINE

70030098000

Unavailable
