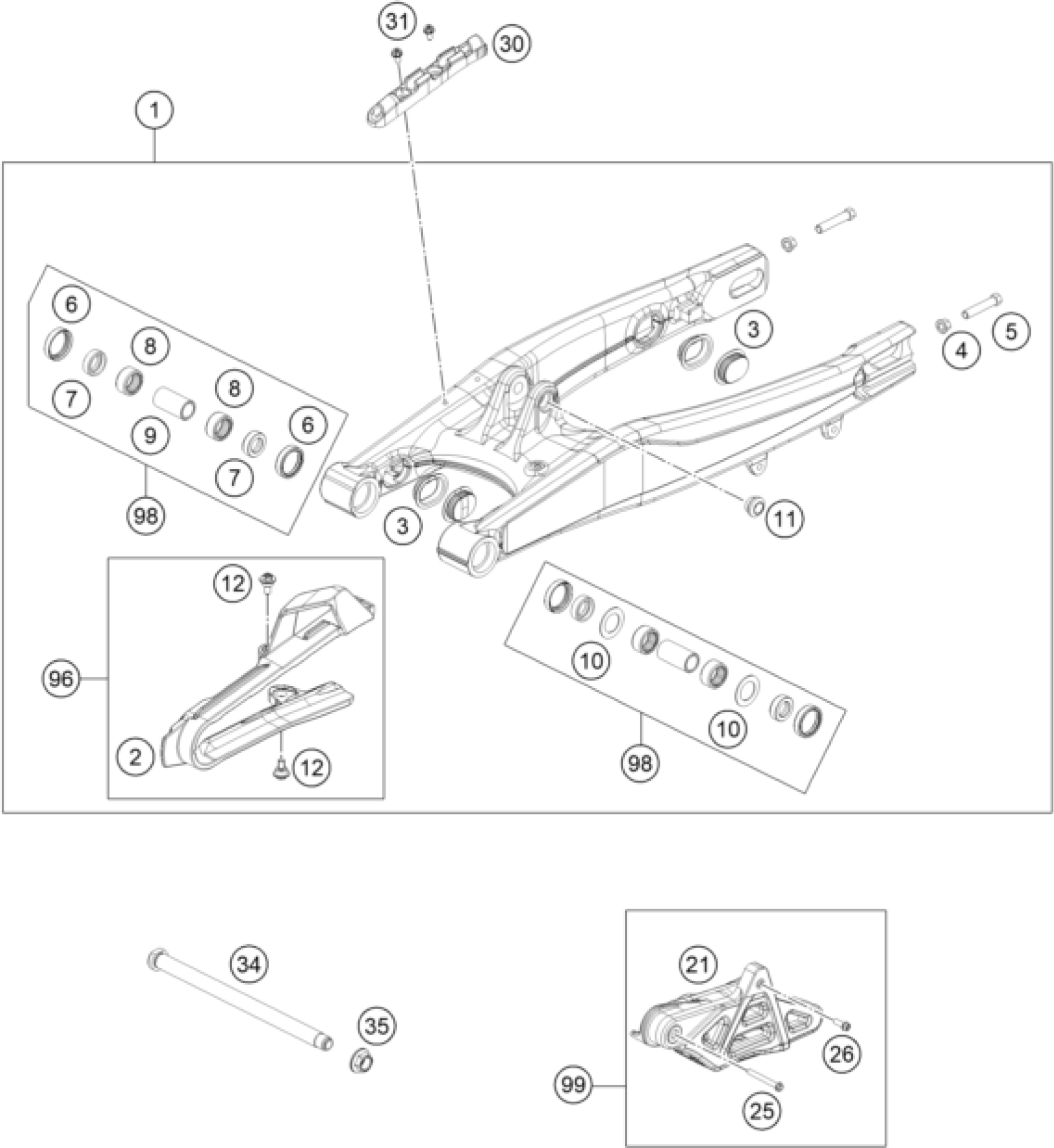

KTM FREERIDE E-SX 2014 SWING ARM Diagram

#

Description
Price

1

SWINGARM CPL.

70004030044

Unavailable

2

CHAIN GUIDE GUARD

70004066000

Unavailable

3

Locking cap swingarm

77204041000

Unavailable

4

flanged nut M8 WS10

46030045000

Unavailable

5

HH SCREW M8X40 WS=10

50203030090

Unavailable

6

radial shaft seal 25x32x7

0760253270

Unavailable

7

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

8

NEEDLE BUSH HK2012V

59004031000

Unavailable

9

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

10

Shim 20x31.9x1

59033080000

Unavailable

11

Threaded bush M12 d20

50180105

Unavailable

12

Special screw M6x15x5.5

83008100015

Unavailable

21

Chain cuide EXC

78104070100

Unavailable

25

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

26

HH collar screw M6x20 TX30

0025060206

Unavailable

30

BRAKE HOSE GUIDE

70013047000

Unavailable

31

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

34

SWING ARM BOLT L=239 '12

70004037000

Unavailable

35

hex nut M14x1.5 WS17

77204087000

Unavailable

96

CHAIN GUARD KIT FREERIDE

70004066010

Unavailable

98

SWINGARM REP. KIT 105/85 SX

47004230010

Unavailable

99

Chain guide kit

77304070310

Unavailable
