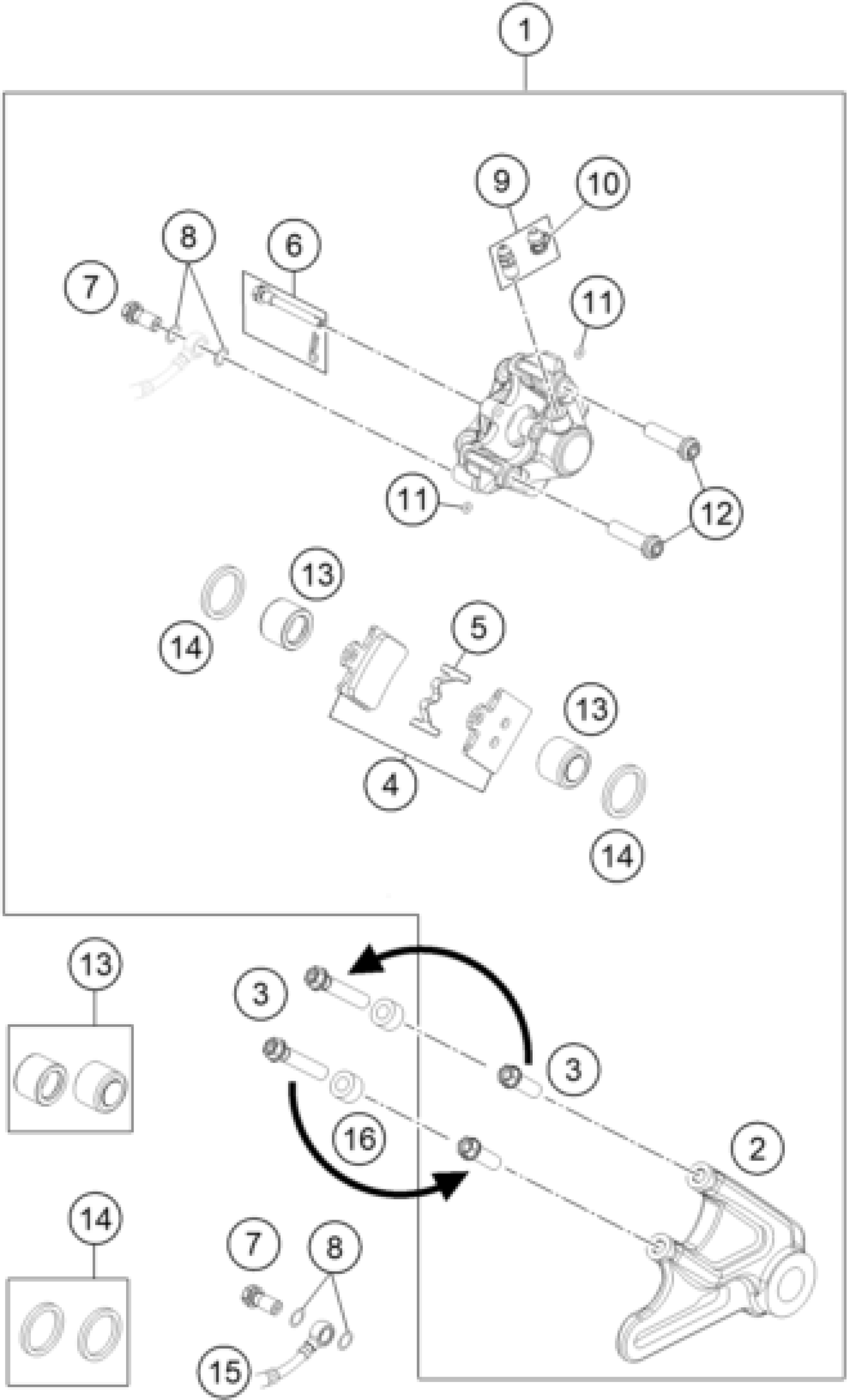

KTM FREERIDE E-SX 2014 REAR BRAKE CALIPER Diagram

#

Description
Price

2

BRAKE CALIPER SUPPORT CPL.

47013075000

Unavailable

3

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

8

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

14

REP. KIT SEAL. RINGS REAR 2011

47013081100

Unavailable

9

BLEEDER SCREW M8X1

47013085000

Unavailable

1

BREAK CALIPER REAR CPL. 2011

47013080300

Unavailable

4

BRAKE PADS REAR 85 SX 2011

47013090300

Unavailable

5

RETAINING SPRING 85 SX 2011

47013018000

Unavailable

6

SPECIAL SCREW WITH SPLINT PIN

47013092000

Unavailable

7

Hollow screw, brake cylinder 0

47013025000

Unavailable

10

CAP FOR BLEEDER SCREW

47013021000

Unavailable

11

O-RING 2,57X1,78

07700257178

Unavailable

12

SPECIAL SCREW CALIPER M8X30

47013084000

Unavailable

13

REPAIR KIT BRAKEPISTON 2011

47013083200

Unavailable

15

BRAKE HOSE REAR L=XXXMM 12

70013071000

Unavailable

16

SPACER SLEEVE F. BRAKE FRONT

70013098050

Unavailable

3

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable
