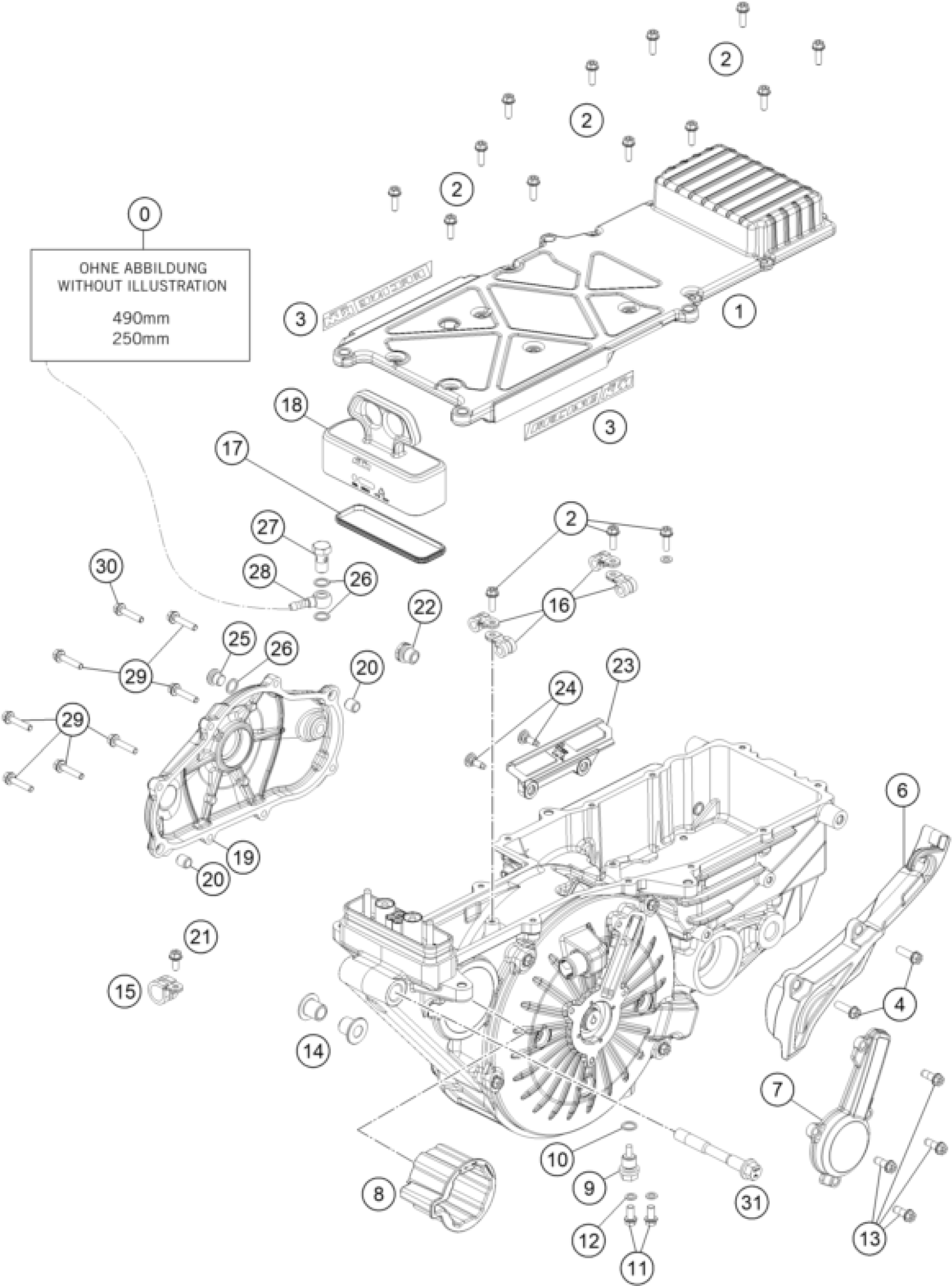

KTM FREERIDE E-SX 2014 ENGINE CASE Diagram

#

Description
Price

0

PVC-HOSE 6X9

50335030001

Unavailable

1

CASE COVER

70045062100

Unavailable

2

HH collar screw M5x16 TX30

0025050166

Unavailable

3

DECAL ENGINE COVER

70045099000

Unavailable

4

HH collar screw M8x20

0025080206

Unavailable

6

CHAIN SPROCKET GUARD

70003096000

Unavailable

7

ROTOR COVER OUTER

70045001100

Unavailable

8

WATER PUMP SUPPORT

70035158000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

10

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

HH collar screw M6x12 TX30

0025060126

Unavailable

12

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

13

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

14

BUSHING

70045058000

Unavailable

15

CLAMP RSGU 15/12

49007439000

Unavailable

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

Unavailable

17

SEAL HV-PLUG

70045002100

Unavailable

18

HV-PLUG COVER CAP

70029001005

Unavailable

19

TRANSMISSION COVER

70045012100

Unavailable

20

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

21

HH collar screw M5x12 TX30

0025050126

Unavailable

22

BLEEDER VALVE M12X1,5

70045084000

Unavailable

23

CABLE COVER

70045005000

Unavailable

24

special screw M5x17

69008021060

Unavailable

25

PLUG DIN0908-M10X1 A2

0908100000

Unavailable

26

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

27

HOLLOW SCREW M10 X 1

54313025000

Unavailable

28

RING COMPONENT 10/6MM

49138493000

Unavailable

29

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

30

HH collar screw M5x20 TX30

0025050206

Unavailable

31

ENGINE BRACKET SCREW 85 SX

47003013000

Unavailable

0

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

Unavailable
