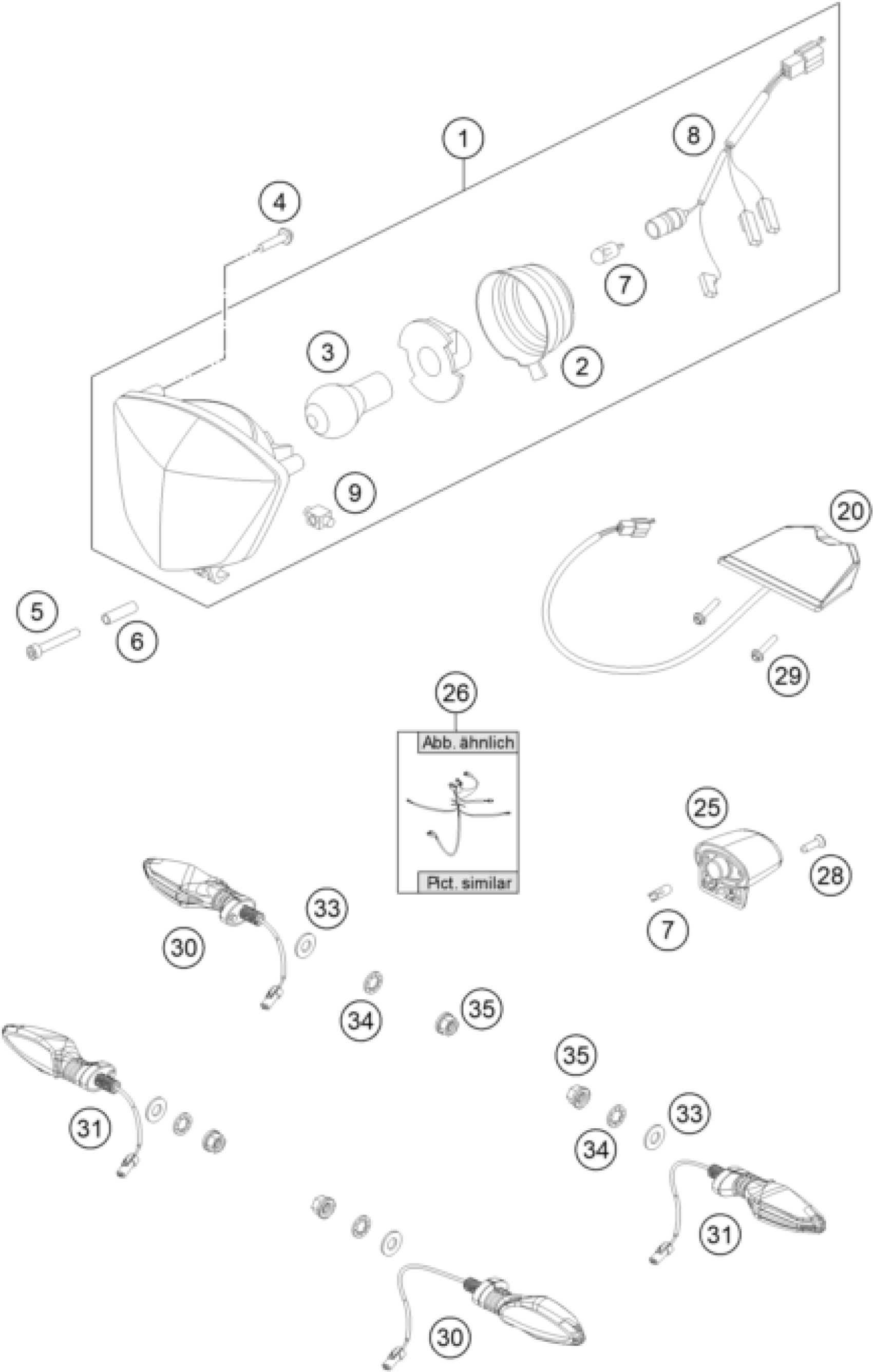

KTM FREERIDE E-SM 2015 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT

81214001000

Unavailable

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

$10.93

3

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

4

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.54

5

AH SCREW DIN912-M5X50 10.9

0912050503

$1.69

6

DIST. HOSE F. HEAD LIGHT MASK

72008008000

$2.54

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

8

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

9

INSERT FOR HEAD LIGHT SUPPORT

81208003010

Unavailable

20

REAR LIGHT

78114040000

$121.64

25

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

26

FLASHER HARNESS

72511081000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.69

29

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.54

30

FLASHER CPL. FR.LS/REAR R/S

76014025000

Unavailable

31

FLASHER CPL. FR.RS/REAR L/S

76014026000

Unavailable

33

washer DIN 125 A 10.5

0125100003

$2.54

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.69

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.54
