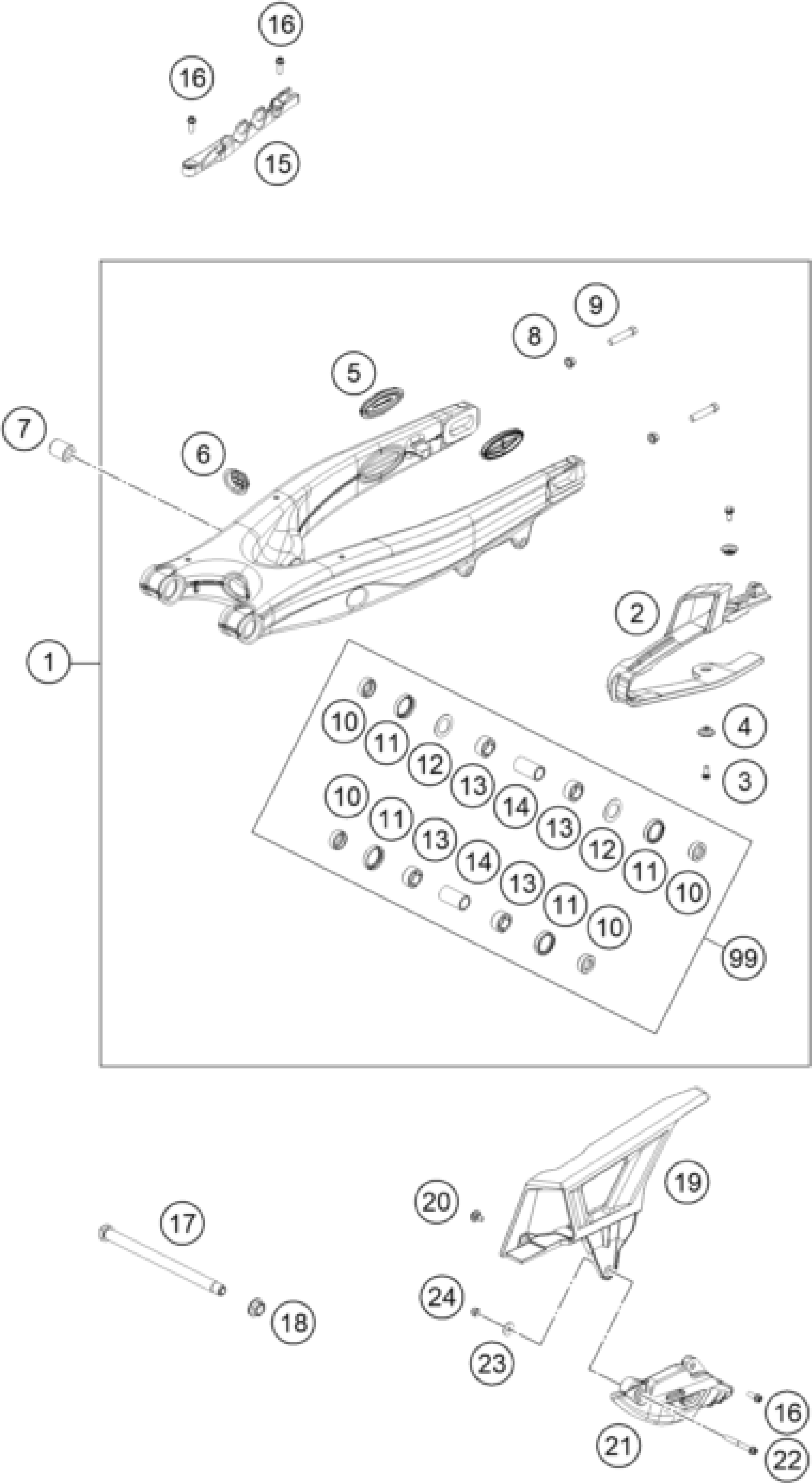

KTM FREERIDE E 660W 2025 SWING ARM Diagram

#

Description
Price

1

Swingarm cpl. Freeride E

A13004030044

Unavailable

2

Chain slider

A13004066000

Unavailable

3

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

4

Chain slider bushing

77304066150

Unavailable

5

Locking cap swingarm

A46004041000

Unavailable

6

Locking cap swingarm

77204041000

Unavailable

7

Sliding bushing shock absorber

A13004030010

Unavailable

8

flanged nut M8 WS10

46030045000

Unavailable

9

HH SCREW M8X40 WS=10

50203030090

Unavailable

10

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

11

radial shaft seal 25x32x7

0760253270

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

13

NEEDLE BUSH HK 2012

50203097000

Unavailable

14

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

15

Brake line guide

A46004042000

Unavailable

16

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

17

Swingarm pivot, 85 SX

47104037100

Unavailable

18

hex nut M14x1.5 WS17

77204087000

Unavailable

19

Chain guard

A13004060000

Unavailable

20

special screw M6x12x3

83008000012

Unavailable

21

Chain guide EXC

A49004070100C1

Unavailable

22

HH collar screw M6x50 TX30

0025060506

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

24

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

99

SWINGARM REP. KIT

A13004030110

Unavailable
