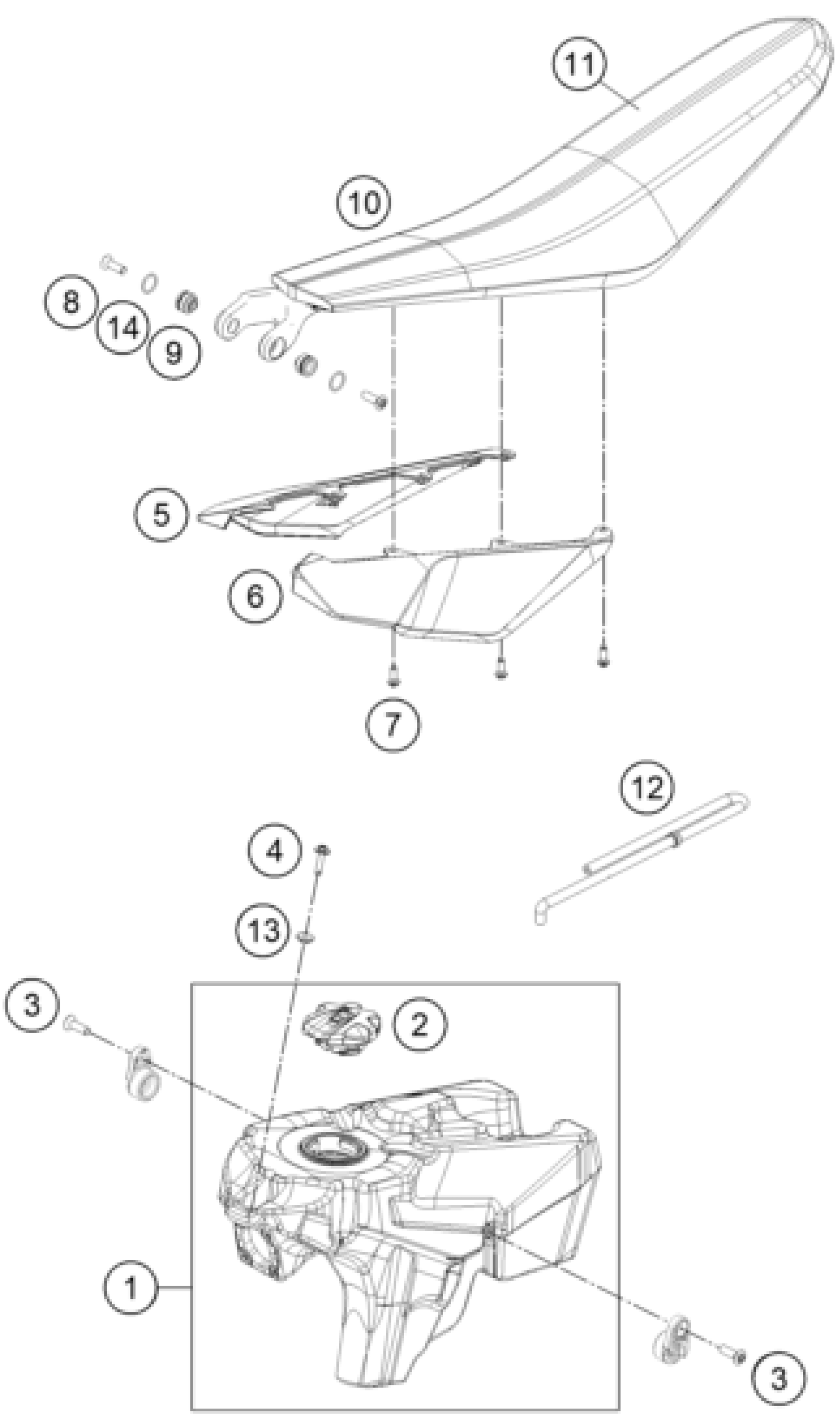

KTM FREERIDE 350 2016 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. FREERIDE

7200701304499

Unavailable

2

TANK PLUG CPL. 14

78107008044X4

Unavailable

3

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

4

COLLAR SCREW M6X27 TX

0024060273

Unavailable

7

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

8

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

9

BUSHING

70003001057

Unavailable

5

AKKU COV.R/S WH.FREER.250/350

7000702505128A

Unavailable

6

AKKUCOVER L/S WH.FREER.250/35

7000702505028A

Unavailable

10

SEAT HIGH CPL. '13

70007040100

Unavailable

11

SEAT COVER

70007040150

Unavailable

12

TANK BREATHER HOSE+VALVE

72007029000

Unavailable

13

SPACER BUSHING 03

54808020000

Unavailable

14

o-ring 18.00x2.00 NBR70

0770180020

Unavailable
