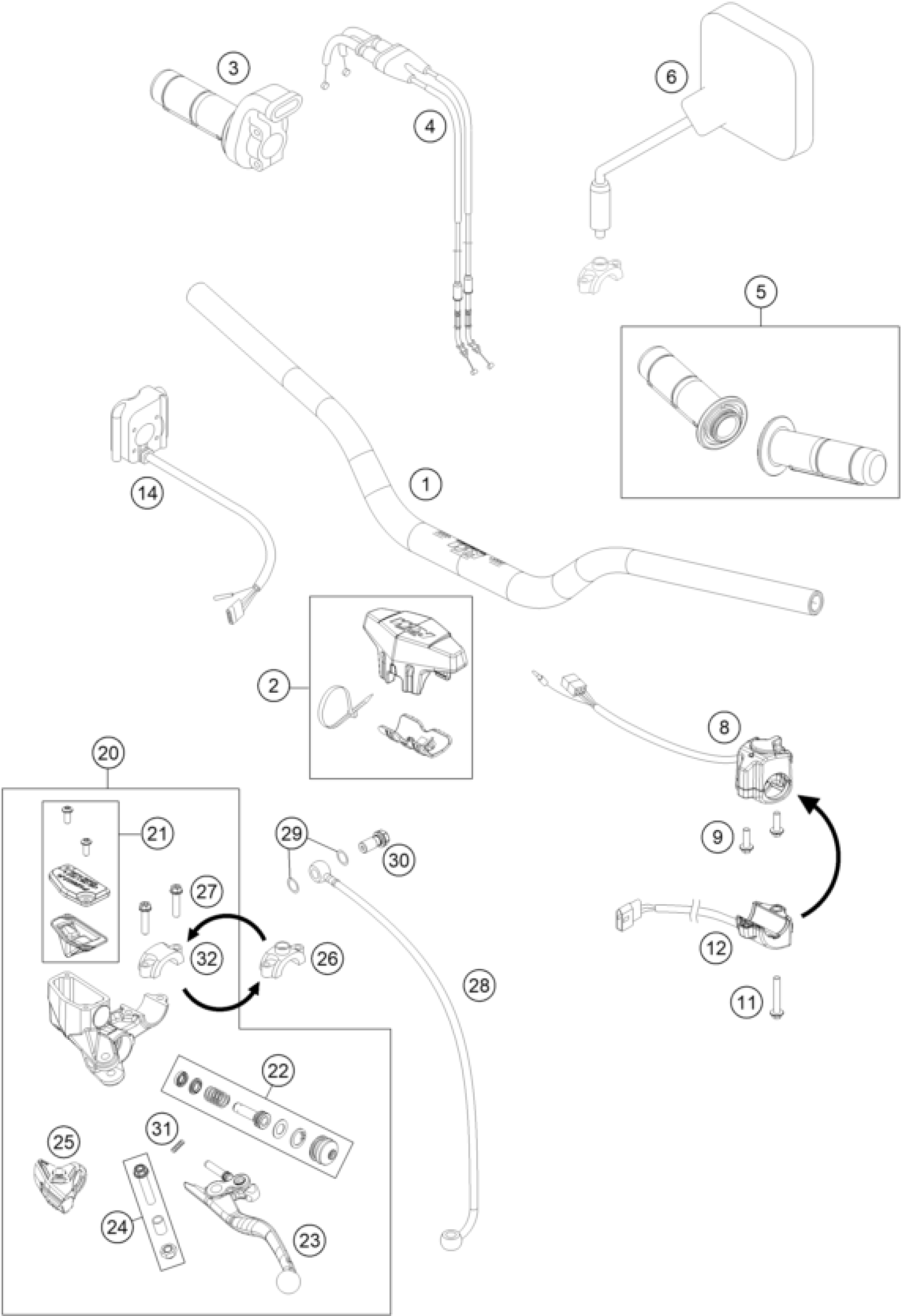

KTM FREERIDE 350 2016 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR BLACK D=28MM

7000200100030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

THROTTLE GRIP CPL.

78102010000

Unavailable

4

THROTTLE CABLE FREERIDE 350 13

72002091100

Unavailable

5

GRIP SET DUAL COMPOUND

63002021100

Unavailable

6

Rear view mirror left

58012040000

Unavailable

6

Rear view mirror right

58012140000

Unavailable

8

LIGHT SWITCH

78111070000

Unavailable

9

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

11

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

12

FLASHER SWITCH

78111029000

Unavailable

14

START-STOP SWITCH

77711074000

Unavailable

20

MASTER CYLINDER CPL. 10MM

72002030100

Unavailable

21

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

22

REP. KIT PISTON 10MM

72002032000

Unavailable

23

Lever cmpl.

72013002000

Unavailable

24

LEVER SCREW CPL.

70002038000

Unavailable

25

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

26

Clamp for mirror

58012040150

Unavailable

27

HH collar screw M6x25 TX30

0025060256

Unavailable

28

CLUTCH PIPE

72032063000

Unavailable

29

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

30

Hollow screw, brake cylinder 0

47013025000

Unavailable

31

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

32

CLAMP

72013005000

Unavailable
