Partiron

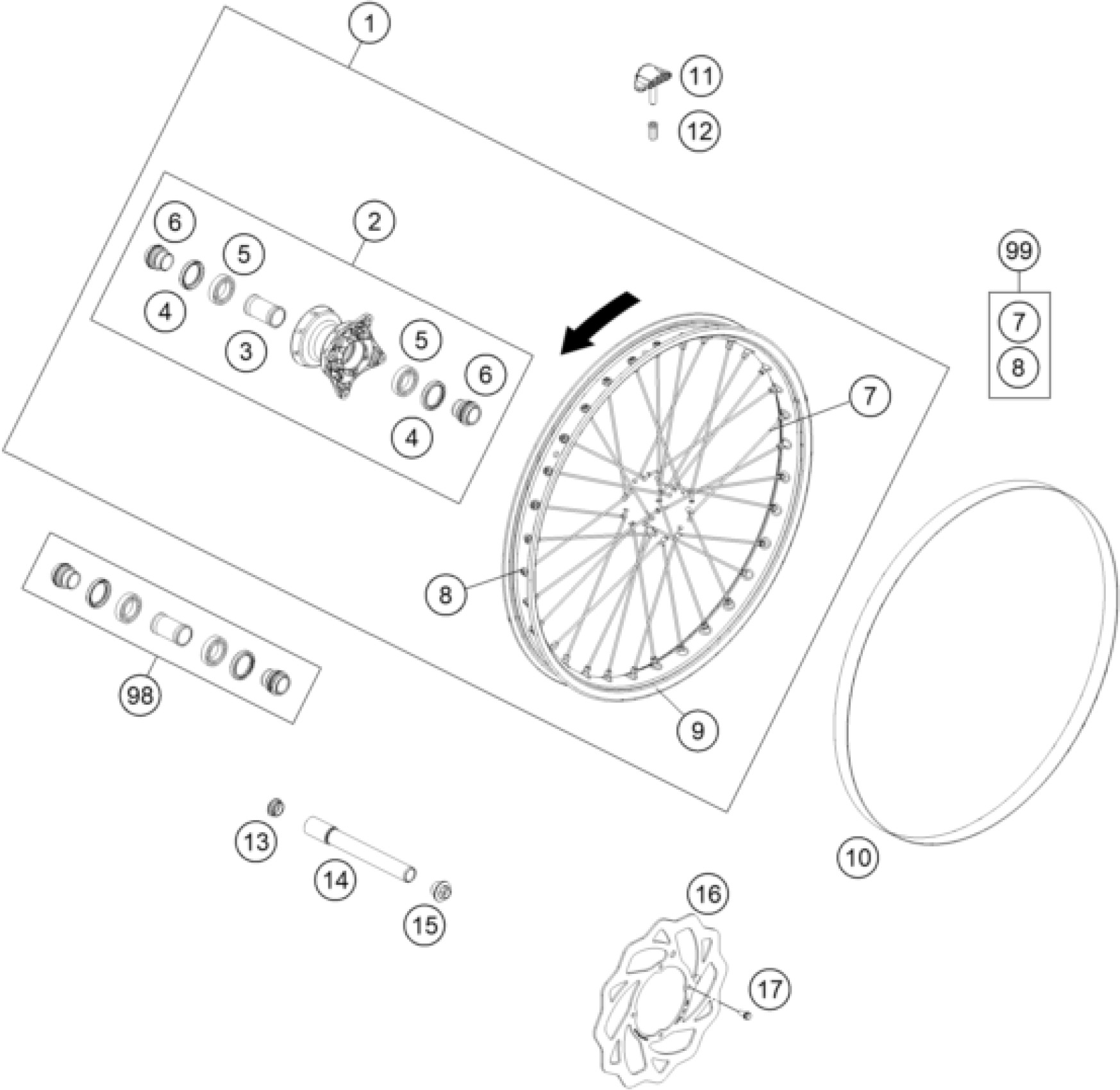

KTM FREERIDE 350 2016 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 14

70009001144

Unavailable

2

FRONT WHEEL HUB CPL. 12

70009010044

Unavailable

3

BEAR.SPACER TUBE FRONT D22MM

70009011000

Unavailable

4

SHAFT SEAL RING 32X42X7 BSL

0760324271

Unavailable

5

BALL BEARING 6905 J1LLUC3

0625069050

Unavailable

6

SPACER BUSHING D=22MM

70009012000

Unavailable

7

SPOKE FRONT 232MM BLACK

7000907123230

Unavailable

8

Spoke nipple M4.5 AL

77109072000

Unavailable

9

FRONT RIM 21X1,6-32

70009070100

Unavailable

10

Tube protector 21"

50309073000

Unavailable

11

RIM LOCK 1,60''

78109090000

Unavailable

12

NUT FOR WHEEL HOLDER

77110090050

Unavailable

13

PLUG BUSHING SW17 '12

70009081050

Unavailable

14

AXLE FRONT D=22 '12

70009081000

Unavailable

15

AXLESCREW M20X1.5 SW17

70009082000

Unavailable

16

BRAKE DISC FRONT D=260MM

72509060000

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

98

FRONT WHEEL REP. KIT

70009015000

Unavailable

99

SPOKE KIT FRONT '21'

00050000961

Unavailable
