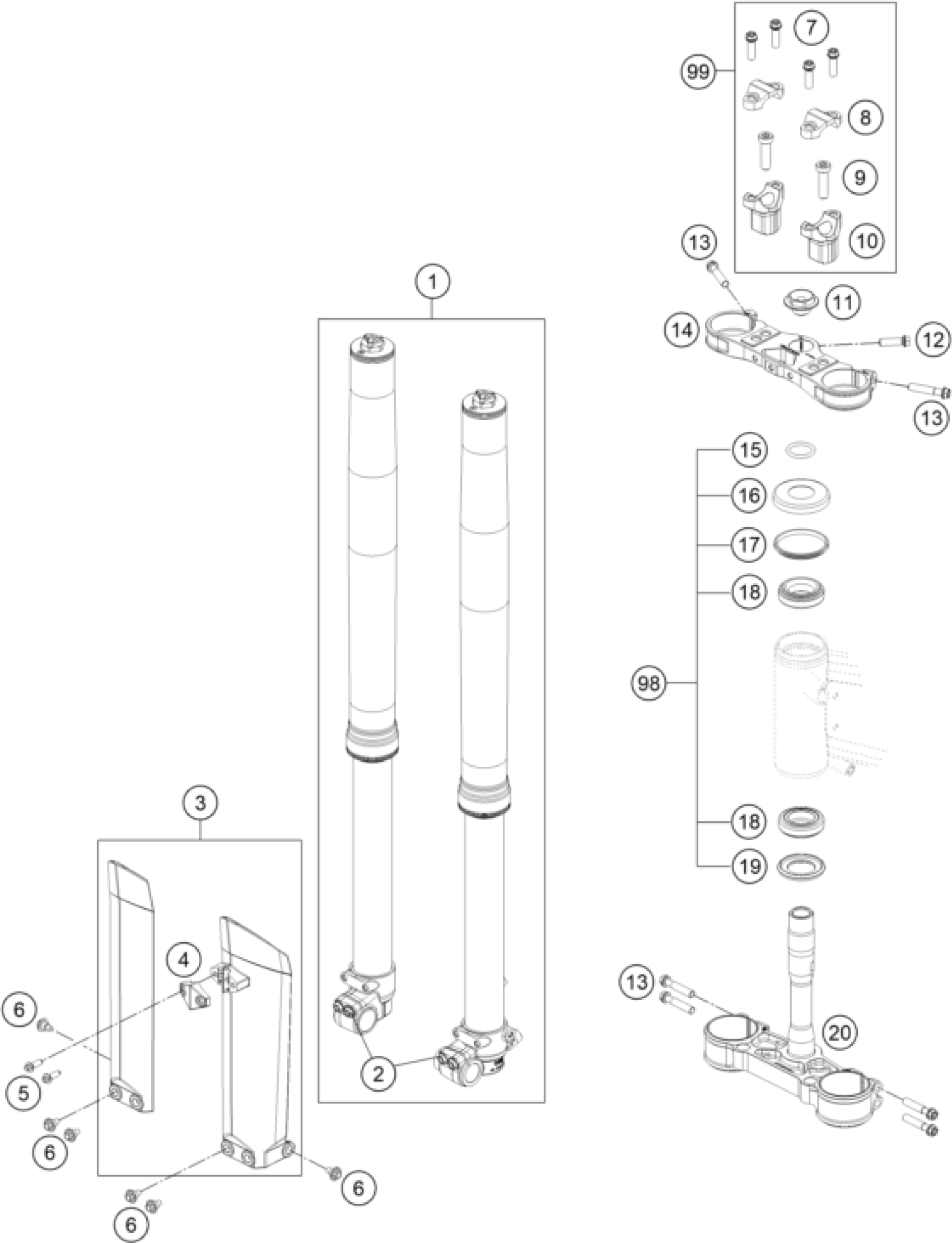

KTM FREERIDE 350 2016 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK FREERIDE 350

05187N4001

Unavailable

2

HH collar screw M8x20

0025080206

Unavailable

3

FORK PROTECTOR SET 85SX WHITE

4710109400028

Unavailable

4

CLAMP FOR BRAKE HOSE

4710108500028

Unavailable

5

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

6

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

7

HH collar screw M8x25

0025080256

Unavailable

8

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

9

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

10

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

Unavailable

11

COLLAR SCREW M20X1,5 WS17 AL

72001036000

Unavailable

12

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

13

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

15

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

16

STEERING HEAD COVER

78101086000

Unavailable

17

STEARING HEAD GASKET TOP

54601184000

Unavailable

14

TOP FORK PLATE BLACK

7000103402030

Unavailable

18

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

19

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

20

BOT.TRIPLE CLAMP CPL. BL. 20MM

7000103202030

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

99

HANDLEBAR SUPPORT KIT FREERIDE

00050000926

Unavailable
