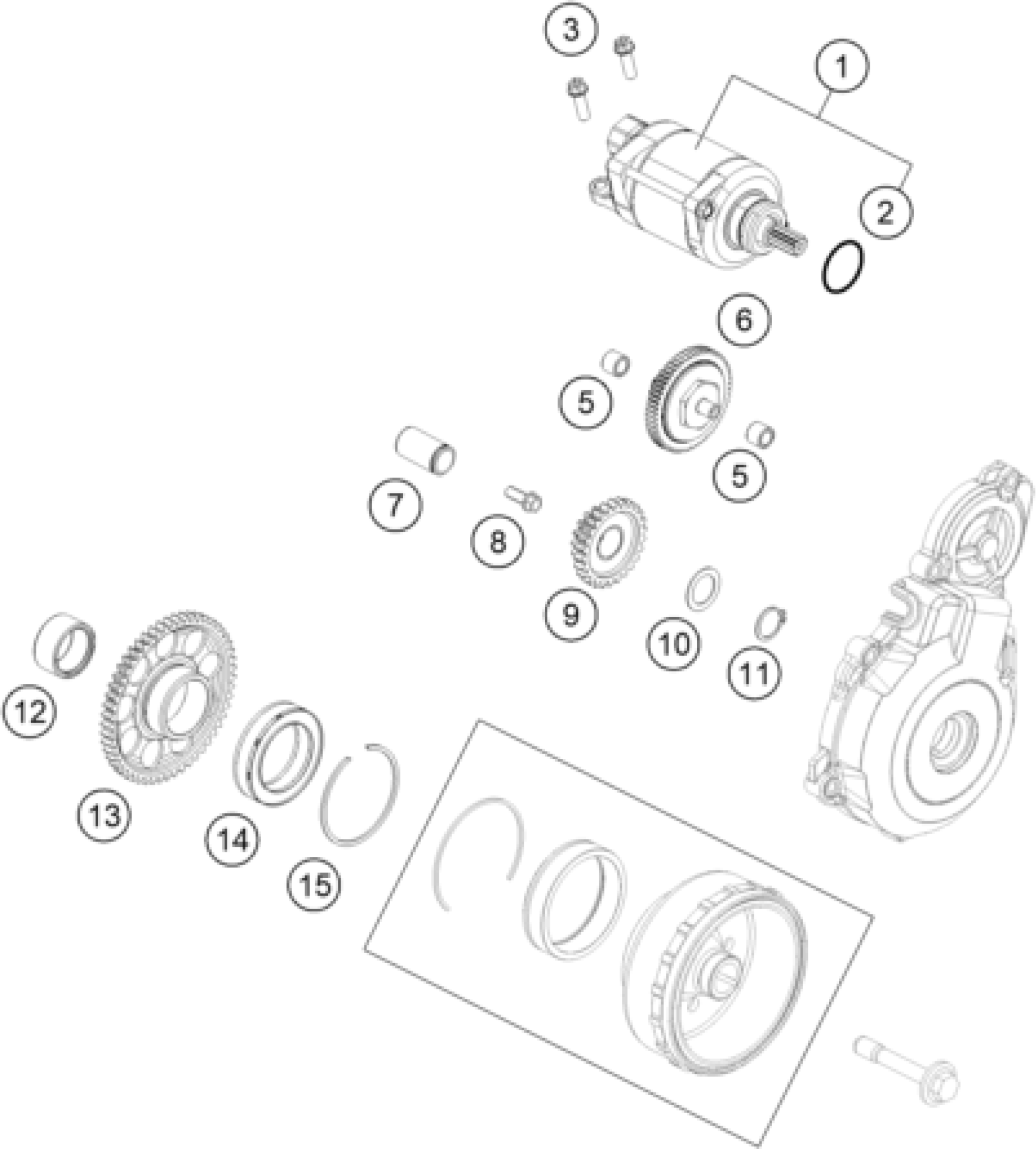

KTM FREERIDE 350 2016 ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE CPL.

77240001100

Unavailable

2

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

3

HH collar screw M6x25 TX30

0025060256

Unavailable

5

NEEDLE BUSH HK 0810 DIN 618

0618081210

Unavailable

6

TORQUE LIMITER

77240116000

Unavailable

7

BUSHING PIN

59040028000

Unavailable

8

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

9

STARTER INTERMEDIATE GEAR

77240122000

Unavailable

10

STOP DISK 17,2X25X1

54633090000

Unavailable

11

CIRCLIP DIN0471-17X1

0471170010

Unavailable

12

NEEDLE BUSH HK2516 25/32/16 02

0618253216

Unavailable

13

FREEWHEELER GEAR

77840120000

Unavailable

15

CIRCLIP DIN0472-57X1,50

0472057150

Unavailable

14

FREE WHEEL 03

80040026000

Unavailable
