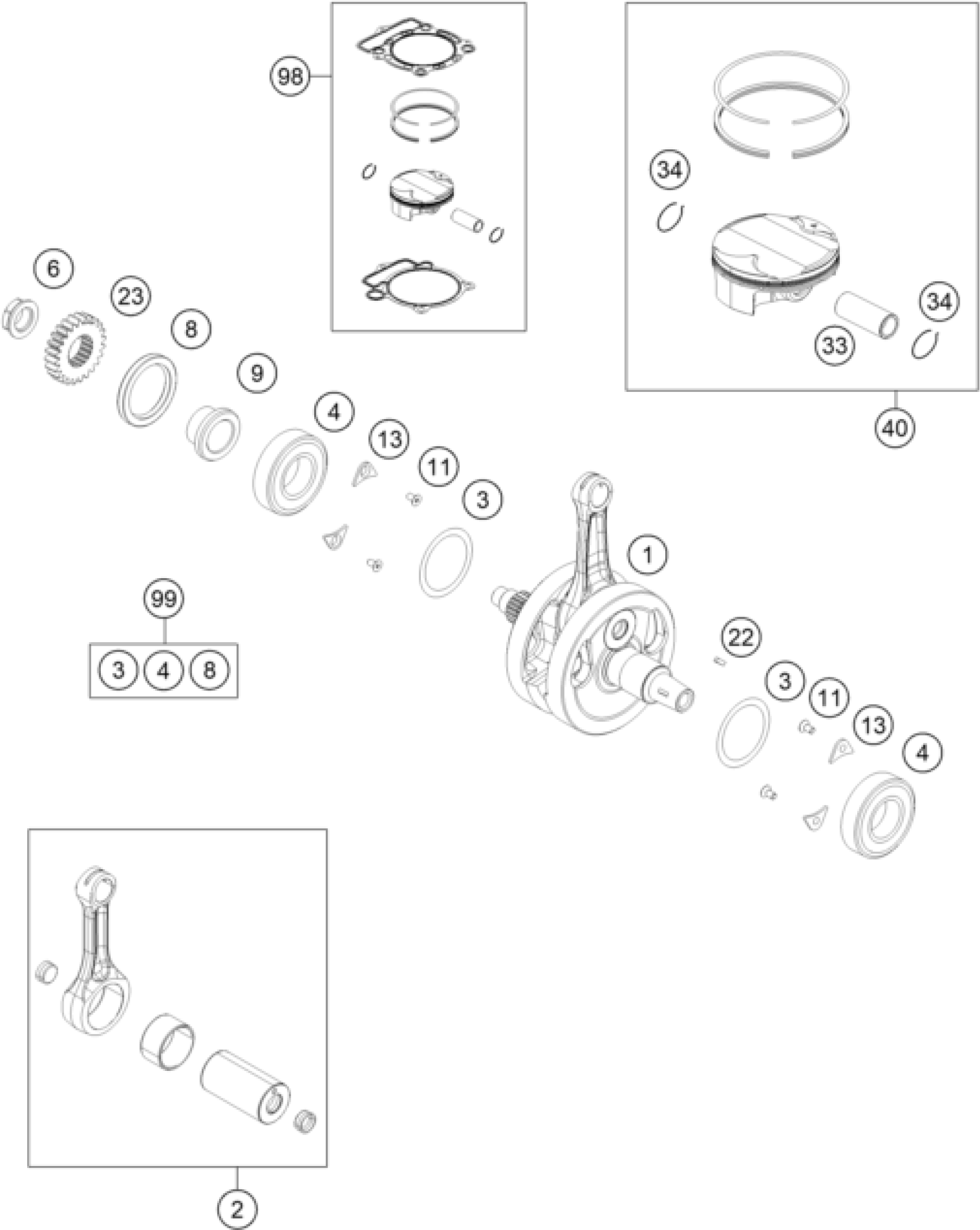

KTM FREERIDE 350 2016 CRANKSHAFT, PISTON Diagram

#

Description
Price

2

CONNECTING ROD REPAIR SET

77830015044

Unavailable

1

CRANKSHAFT CPL.

77530018200

Unavailable

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

Unavailable

6

NUT PRIMARY WHEEL

77230029000

Unavailable

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

Unavailable

9

SPACER BUSHING PRIMARY GEAR

77232022000

Unavailable

11

hex lobe countersunc screw M5x

0019050106S

Unavailable

13

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

23

PRIMARY GEAR 24T.

77232023024

Unavailable

33

PISTON PIN 350

77230133000

Unavailable

34

SNAP RING 18X1,5

54830074000

Unavailable

40

PISTON I CPL. 350

77530107100 I

Unavailable

40

PISTON II CPL. 350

77530107100 II

Unavailable

98

PISTON KIT GR.I 350 EXC-F12-13

00050000200

Unavailable

98

PISTON KIT GR.II 350 EXC-F 12

00050000201

Unavailable

99

CRANKSHAFT REP.KIT 250/350EXCF

00050002317

Unavailable
