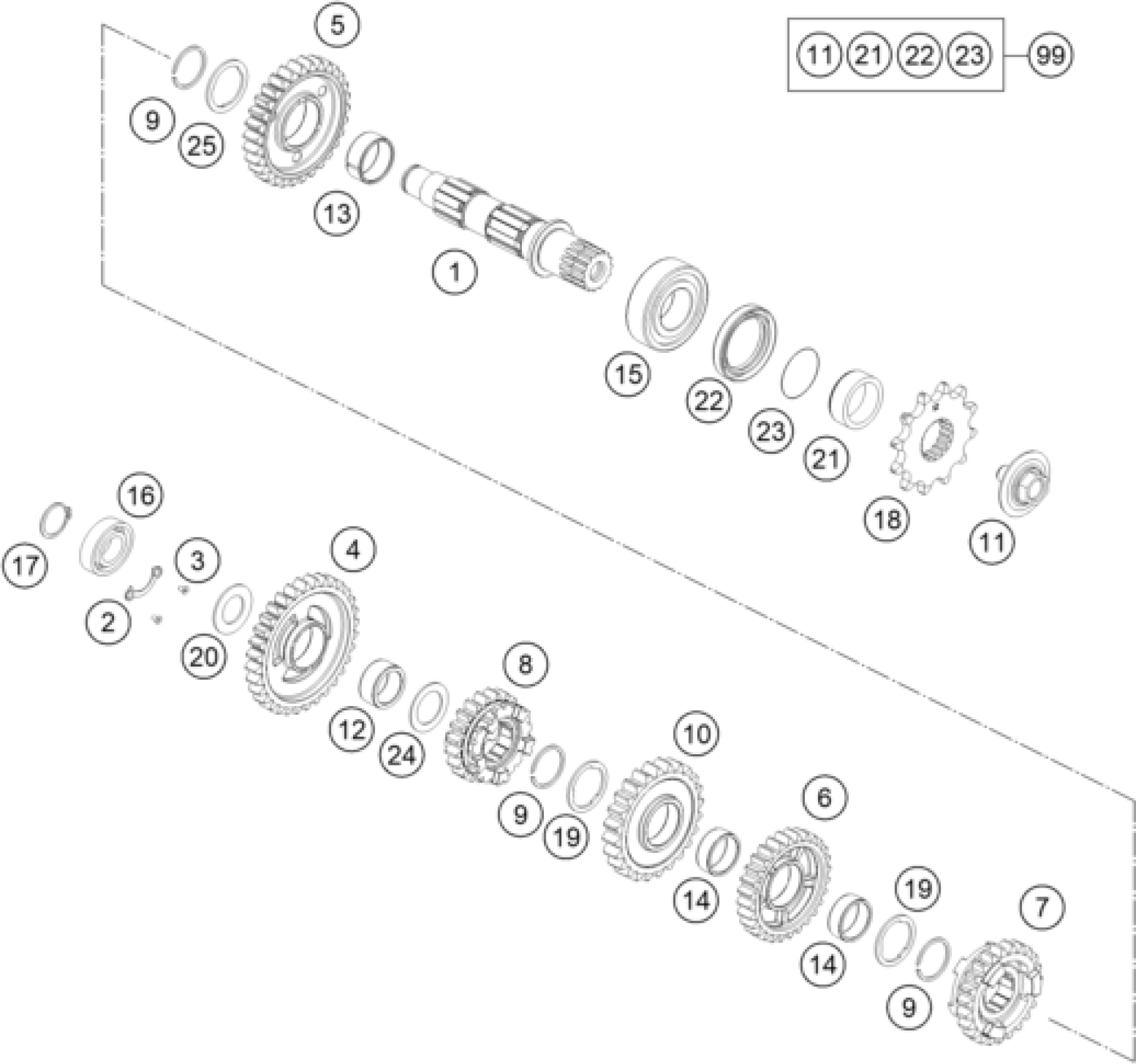

KTM FREERIDE 350 2015 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT

77733110000

Unavailable

2

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

3

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

4

IDLER GEAR 1ST G. T=32

77733011000

Unavailable

5

IDLER GEAR 2ND G. T=30

77733112000

Unavailable

6

IDLER GEAR 4.G. Z=28

77733114100

Unavailable

7

SLIDING GEAR 5.G.,Z=23

77733115100

Unavailable

8

SLIDING GEAR 6TH GEAR, 20T

72033016000

Unavailable

9

CIRCLIP WS24

0417024000

Unavailable

10

IDLER GEAR 3.G. Z=24

77733113100

Unavailable

11

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

12

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

13

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

14

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

15

cylindrical roller bearing NJ2

49030023000

Unavailable

16

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

17

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

18

FRONT SPROCKET 12-T

50033029012

Unavailable

19

STOP DISC 23,4X31X1,5

77733043000

Unavailable

20

STOP DISK 17,2X30X1,3

77233020000

Unavailable

21

SPACER BUSHING 12MM

54633014100

Unavailable

22

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

23

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

24

STOP DISC 20,2X30X1

54833080000

Unavailable

25

STOP DISC 24X32X1,5

77733044000

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
