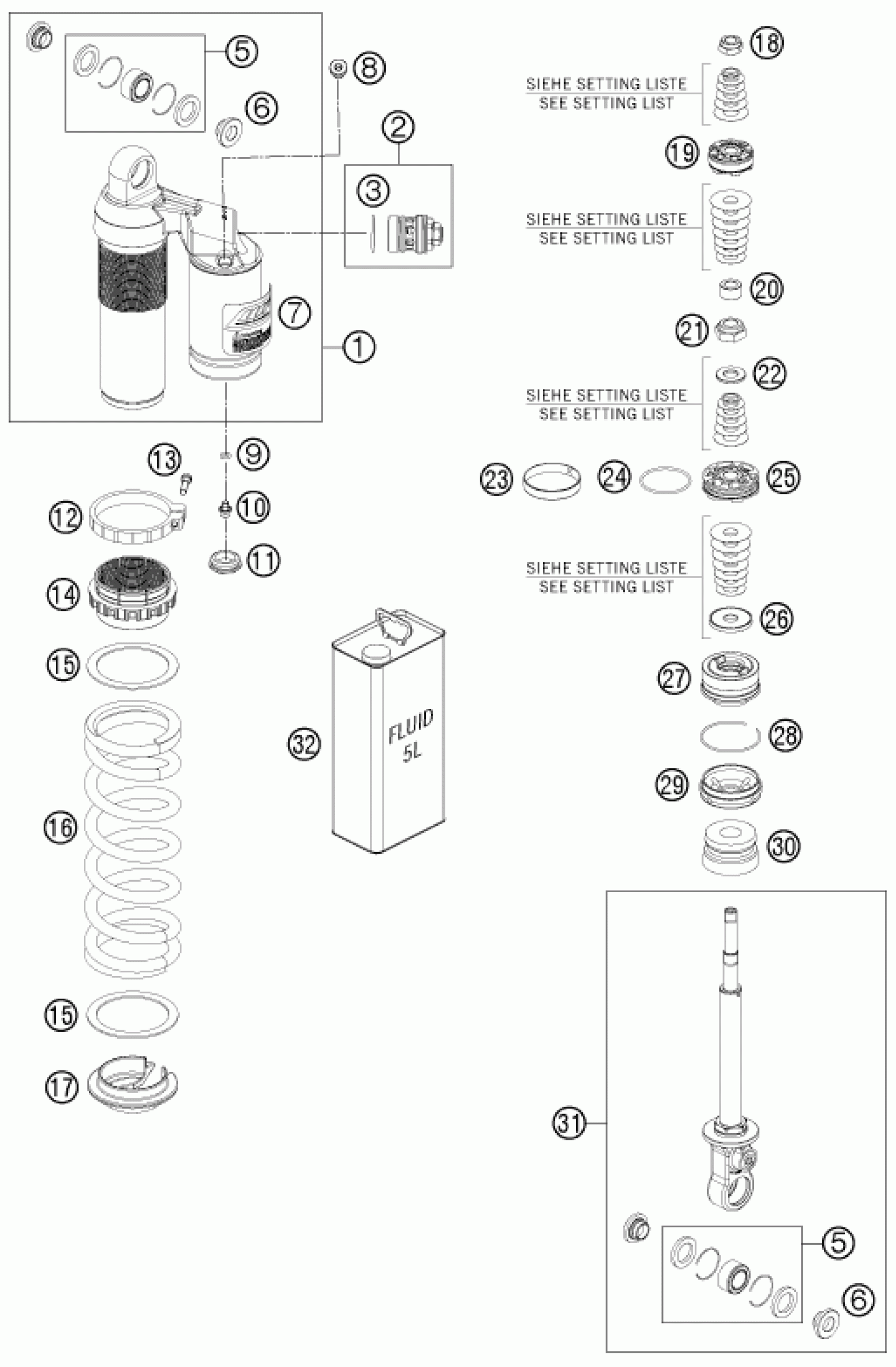

KTM FREERIDE 350 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK CASE CPL.

46181018S1

Unavailable

2

DCC compression adjustment SX

50180213S15

Unavailable

3

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

5

Ball joint bearing kit top 12m

R12012

Unavailable

6

Distance bush 12x15/18,5/24,5x

46181105

Unavailable

7

Sticker WP warning 47x63

52000087

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

9

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

10

HS lock screw M5x6

36120151

Unavailable

11

Rubber cap do not open 22x5,5

46811208

Unavailable

12

Clamp d61

46181014

Unavailable

13

HS cylinder-head screw M5x20 D

14460042

Unavailable

14

Spring retainer M55x2x71x35 pl

46181013

Unavailable

15

Washer 58,6x73,6x1,5

50180410

Unavailable

16

SPRING 55/63/71 N/MM SET

91010324S

Unavailable

16

SPRING 58/66/74 N/MM SET

91010323S

Unavailable

16

Spring 66 N/MM SET

91010311S

Unavailable

17

Spring retainer 28x56x15

46180349

Unavailable

18

PISTON ROD NUT M10X1

46180356

Unavailable

19

Piston 10,05x35,5x13,7 3,5/5,5

14460016

Unavailable

20

Bush 10x17x10

46181016

Unavailable

21

Piston rod nut M12x1

46810474

Unavailable

22

Washer 12x24x2,5

46811258

Unavailable

23

Piston ring 43,95x45,95x8

46811206

Unavailable

24

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

25

Piston 12,05x45,5x12,6 4,5/7

46810560

Unavailable

26

Rebound disc 12x35x4 h0

14460017

Unavailable

27

Sealholder 46x28 cpl.

46180669S

Unavailable

28

Round-wire snap ring 49x1,5

46810010

Unavailable

29

Cover 46,12x6,2 h15,7

46180338

Unavailable

30

Rubber pad 17,2x45,2x30 black

46180365

Unavailable

31

MONOSHOCK LOWER PART

46180520S4

Unavailable

32

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable
