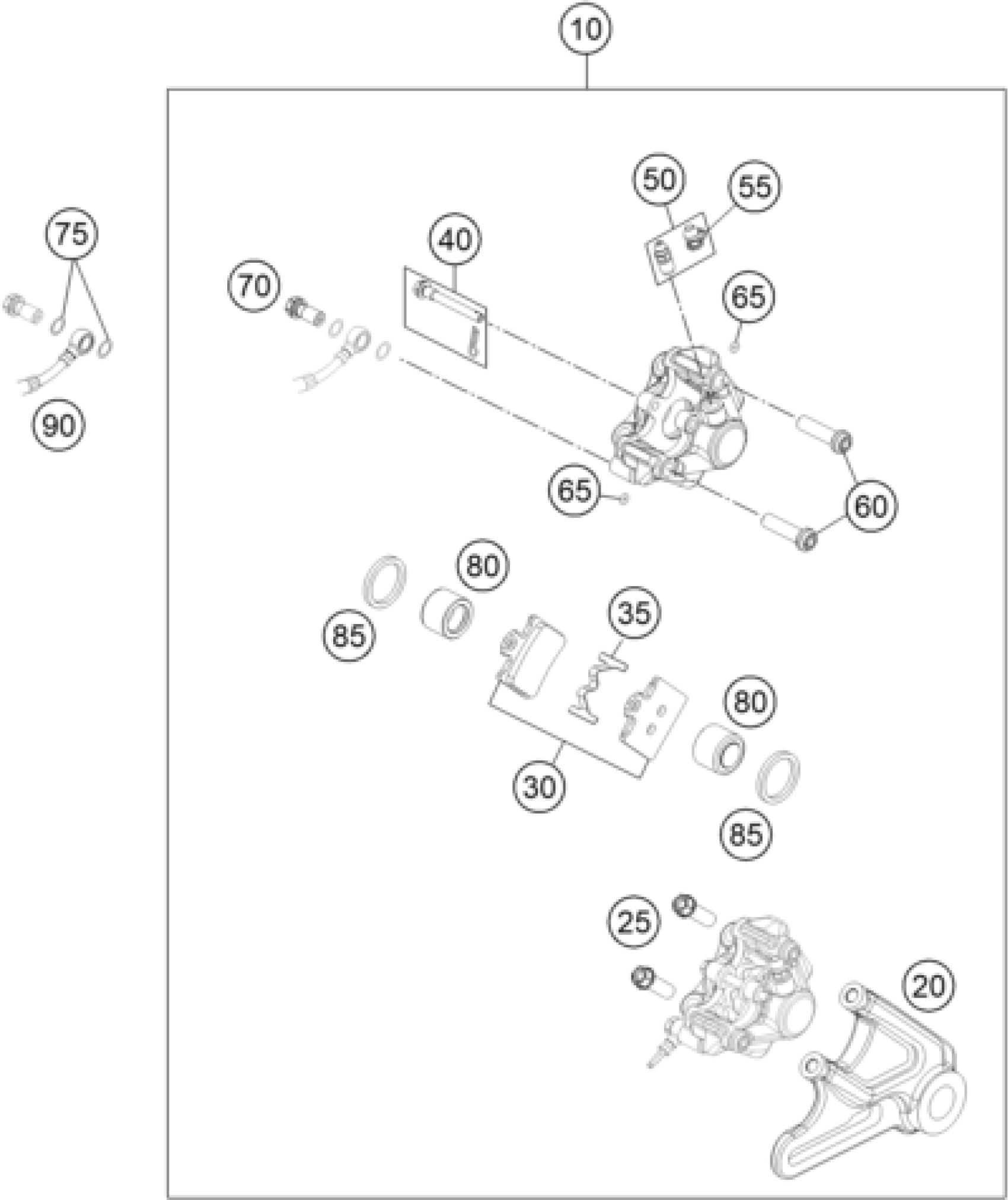

KTM FREERIDE 350 2015 REAR BRAKE CALIPER Diagram

#

Description
Price

10

BREAK CALIPER REAR CPL. 2011

47013080300

Unavailable

20

BRAKE CALIPER SUPPORT CPL.

47013075000

Unavailable

25

HH collar screw M8x25

0025080256

Unavailable

30

BRAKE PADS REAR 85 SX 2011

47013090300

Unavailable

35

RETAINING SPRING 85 SX 2011

47013018000

Unavailable

40

SPECIAL SCREW WITH SPLINT PIN

47013092000

Unavailable

50

BLEEDER SCREW M8X1

47013085000

Unavailable

55

CAP FOR BLEEDER SCREW

47013021000

Unavailable

60

SPECIAL SCREW CALIPER M8X30

47013084000

Unavailable

65

O-RING 2,57X1,78

07700257178

Unavailable

70

Hollow screw, brake cylinder 0

47013025000

Unavailable

75

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

80

REPAIR KIT BRAKEPISTON 2011

47013083200

Unavailable

85

REP. KIT SEAL. RINGS REAR 2011

47013081100

Unavailable

90

REAR BRAKE HOSE L=540MM DOT

72013071100

Unavailable
