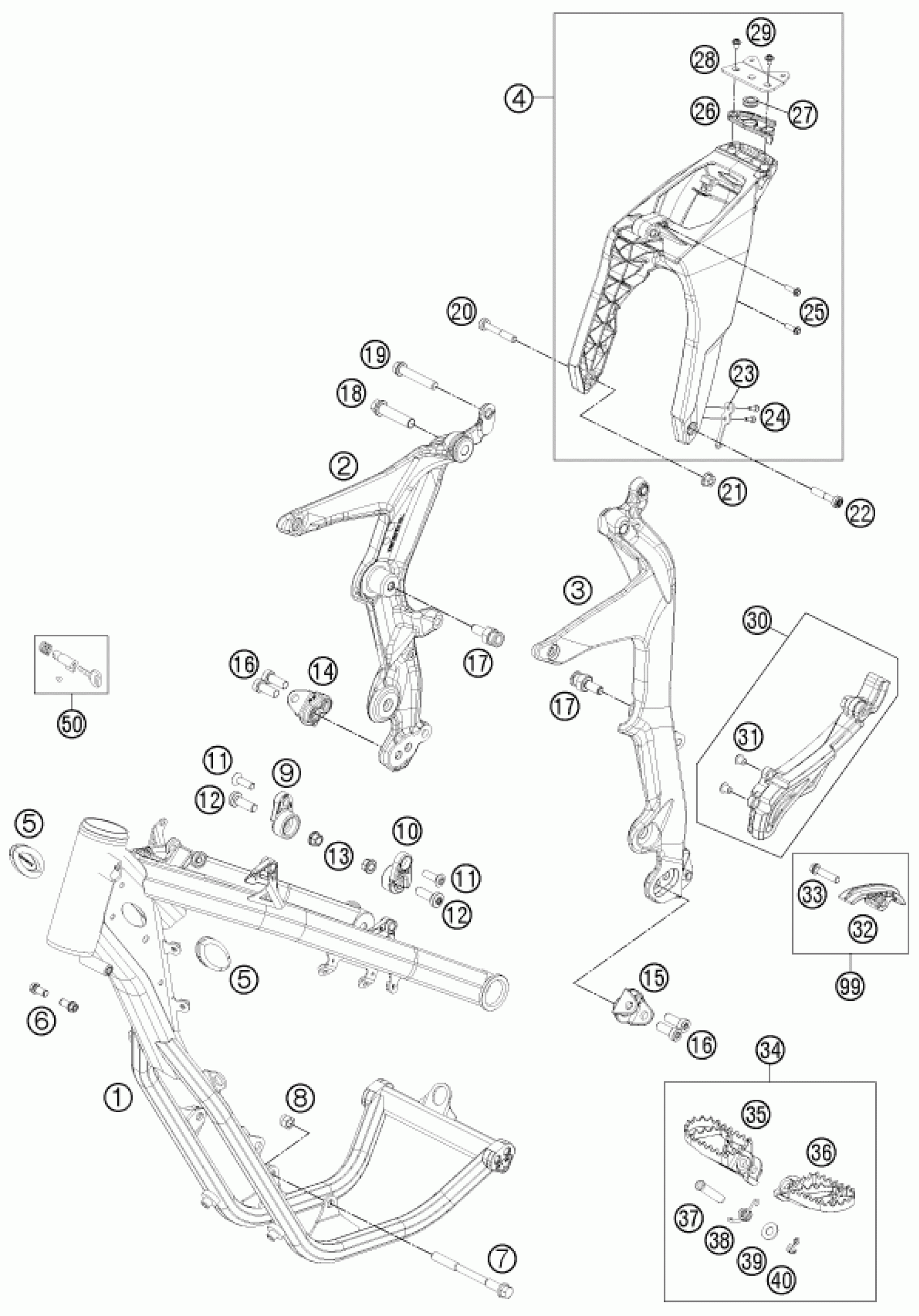

KTM FREERIDE 350 2015 FRAME Diagram

#

Description
Price

1

FRAME ''720N1'' 20

7200300110004

Unavailable

2

CONNECTION BRACKET R/S 14

70003001152

Unavailable

3

CONNECTION BRACKET L. VMT

70003101051

Unavailable

4

SUBFRAME CPL.

70003002033

Unavailable

5

CLOSING COVER SWINGARM SM 03

58404041000

Unavailable

6

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

7

engine brac.scr. M10x115

77203014000

Unavailable

8

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

9

FUEL TANK CARRIER R/S

72007015000

Unavailable

10

FUEL TANK CARRIER L/S

72007014000

Unavailable

11

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

12

AH collar screw M10x30 ISA45

0035100309S

Unavailable

13

COLLAR NUT M10 WS=13

54630044000

Unavailable

14

FOOTREST MOUNTING R/S '12

70003039100

Unavailable

15

FOOTREST MOUNTING L/S '12

70003038100

Unavailable

16

AH collar screw M10x25 ISA45

0032100256S

Unavailable

17

SPECIAL SCREW M10 SW19

72003001059

Unavailable

18

MONOSHOCK SCREW TOP M12X80

70004016000

Unavailable

19

HH COLLAR SCREW M10X56 WS13 08

69004094000

Unavailable

20

AH collar screw M8x50 ISA45

0035080506S

Unavailable

21

Self locking nut M8 10.9

54310086200

Unavailable

22

AH-COLLAR SCREW M8X40 ISA45

0035080406

Unavailable

23

SIDE STAND SPRING PLATE 12

70003024050

Unavailable

24

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

25

PLASTIC SCREW K7X25 PT1447

0016070253

Unavailable

26

SEAT LOCKING MECHANISM

70007039000

Unavailable

27

BUSHING QUICK LOCK

70007039060

Unavailable

28

BRACKET QUICK LOCK

70007039050

Unavailable

29

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

30

SPROCKET COVER

72003096000

Unavailable

31

COLLAR BUSHING 6,3X8X13X9,5

45239060050

Unavailable

32

CHAIN SLIDING PIECE BELOW CPL.

70003053000

Unavailable

33

HH collar screw M8x35 TX40

0025080356

Unavailable

34

FOOTREST L/S + R/S CPL. 09

78003040033

Unavailable

35

FOOTREST R/S 08

78003041050

Unavailable

36

FOOTREST L/S 08

78003040050

Unavailable

37

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

38

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

39

washer DIN 125 A 10.5

0125100003

Unavailable

40

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

STEERING HEAD LOCK 08

78003035000

Unavailable

99

CHAIN SLIDING KIT BELOW

70003053010

Unavailable
