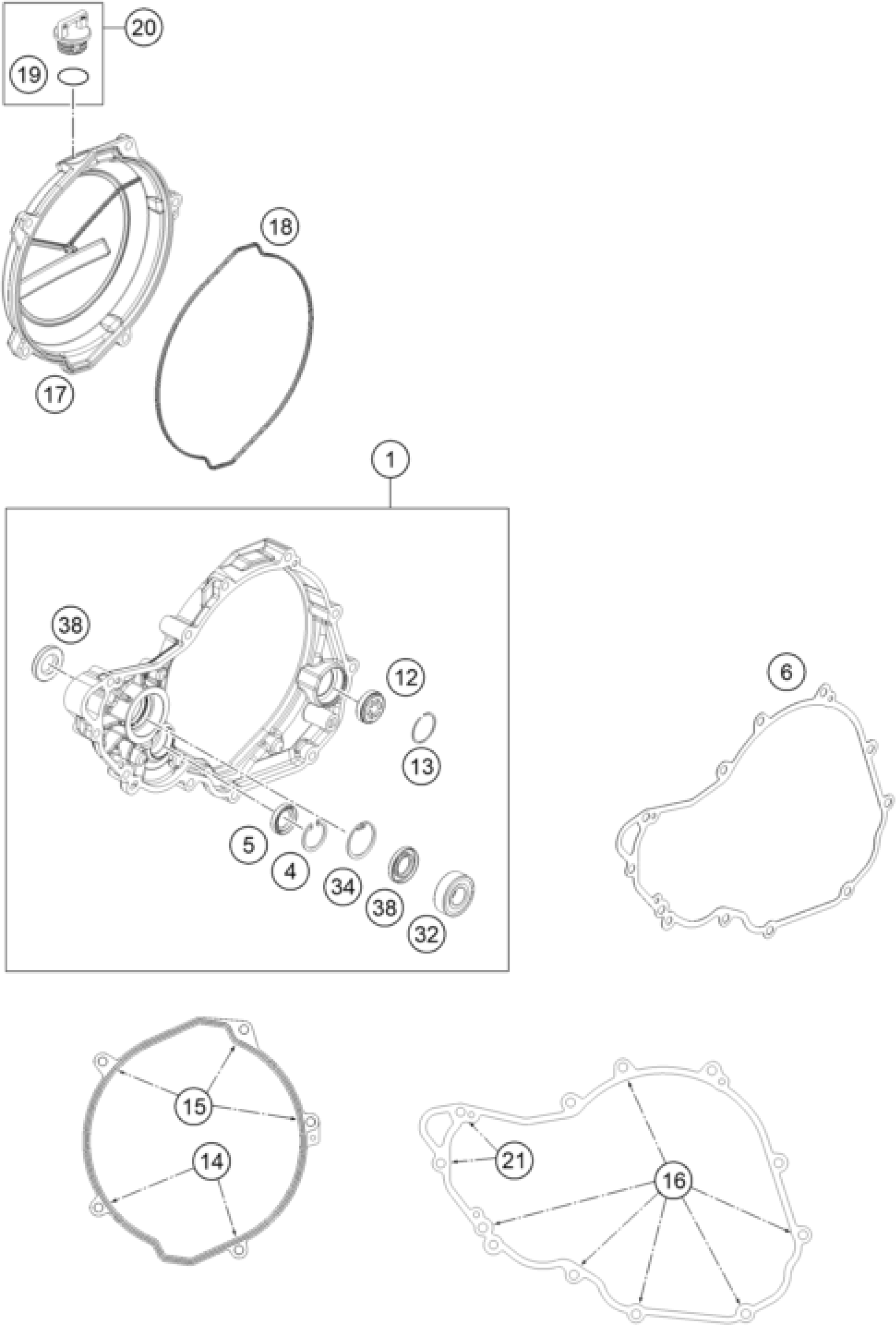

KTM FREERIDE 350 2015 CLUTCH COVER Diagram

#

Description
Price

12

OIL LEVEL GLASS

59030019100

Unavailable

13

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

14

HH collar screw M6x20 TX30

0025060206

Unavailable

15

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

6

CLUTCH COVER GASKET

77730025000

Unavailable

19

O-RING 19,00X3,00 NBR

0770191015

Unavailable

20

OIL FILLER CAP M24x3 W. O-R

58030120000

Unavailable

21

HH collar screw M6x40 TX30

0025060406

Unavailable

32

BALL BEARING 6202 C0 2

0625062022

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

CLUTCH COVER OUTSIDE

7723002600015

Unavailable

18

GASKET FOR OUTER CLUTCH COVER

77230027000

Unavailable

1

CLUTCH COVER CPL.

77730001144

Unavailable

4

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

5

SHAFT SEAL RING 14X24X5 VITON

0760142450

Unavailable

34

CIRCLIP 30X1,2

0472300120

Unavailable

38

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

Unavailable
