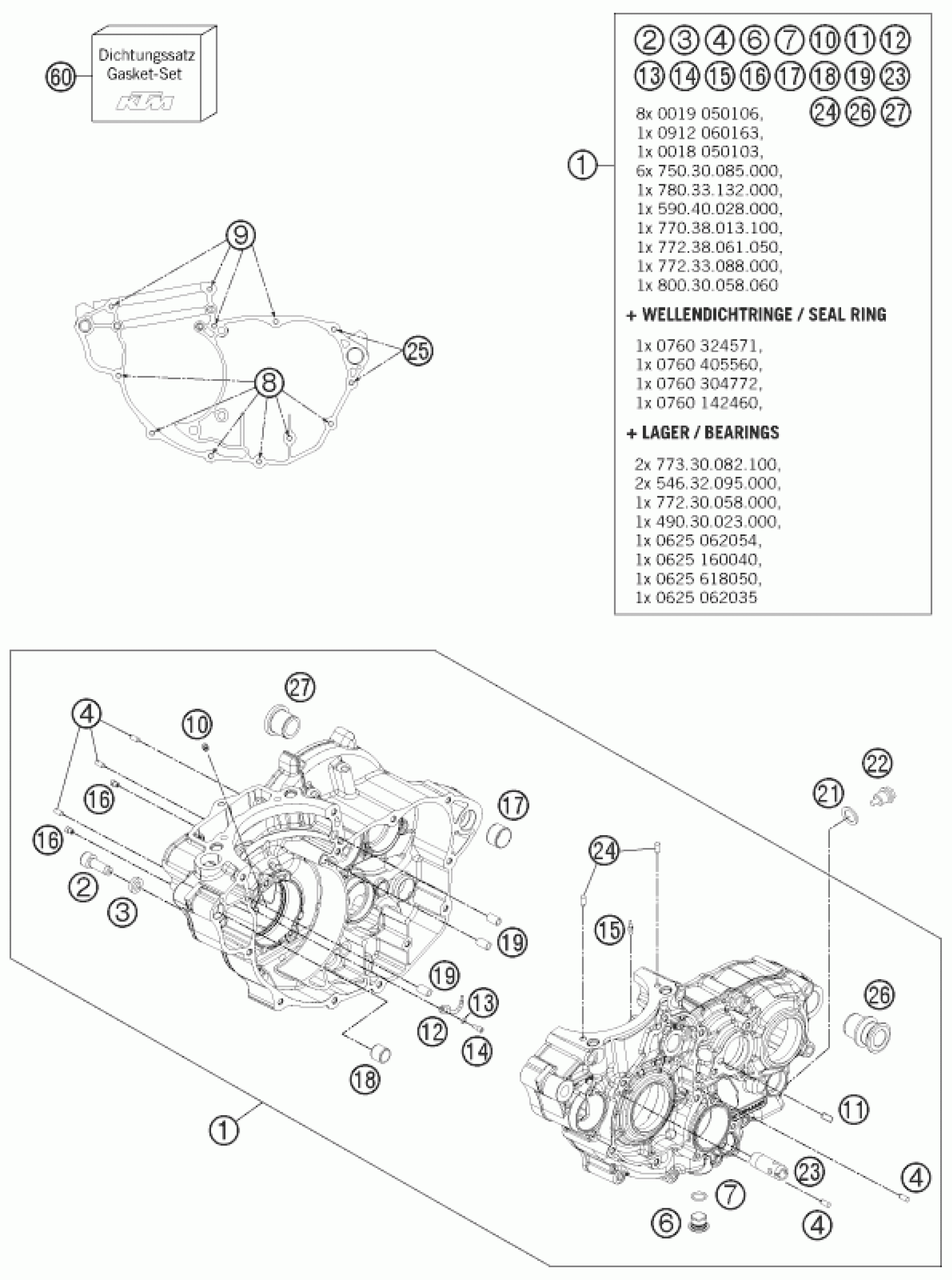

KTM FREERIDE 350 2014 ENGINE CASE Diagram

#

Description
Price

19

dowel sleeve 6x8x11.5

59030023000

Unavailable

26

CASE BUSH L/S

72030010000

Unavailable

21

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.54

1

ENGINE CASE CPL.

72030100044

Unavailable

2

LOCATING SCREW M8 L=23

58030080000

$17.66

3

CU-SEAL RING 8 X 14 X 3

58030081000

$2.54

4

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.39

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

7

O-ring 11x1.5 VITON

0770110015

$5.23

8

HH collar screw M6x55 TX30

0025060556

$3.39

9

HH COLLAR SCREW M6X65 TX30

0025060656

$2.54

10

OIL JET ''60'' M4

80030058060

$11.87

11

THROTTLE M5X10X0,5

77230066000

$9.72

12

OIL JET CURVED SIZE 50

81230064050

Unavailable

13

O-RING 3,5X2,00 NBR

0770035020

$1.69

14

AH.SCREW DIN0912-M 4X10

0912040103

$2.54

15

oil jet 50 M5

60030063050

$9.44

16

JET 100 BING(44-031/180) M4

59030058000

$4.24

17

DOWEL 17 X 19 X 12

59030024000

$5.23

18

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

22

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

23

OIL INTAKEPIPE

77038022000

$6.91

24

CYLINDER ROLLER ZRO 5X8

0402050080

$2.54

25

HH COLLAR SCREW M6X85 TX30

0025060856

$3.39

60

GASKET SET 350 SX-F

77230099000

$274.79

27

CASE BUSH R/S

72030011000

Unavailable
