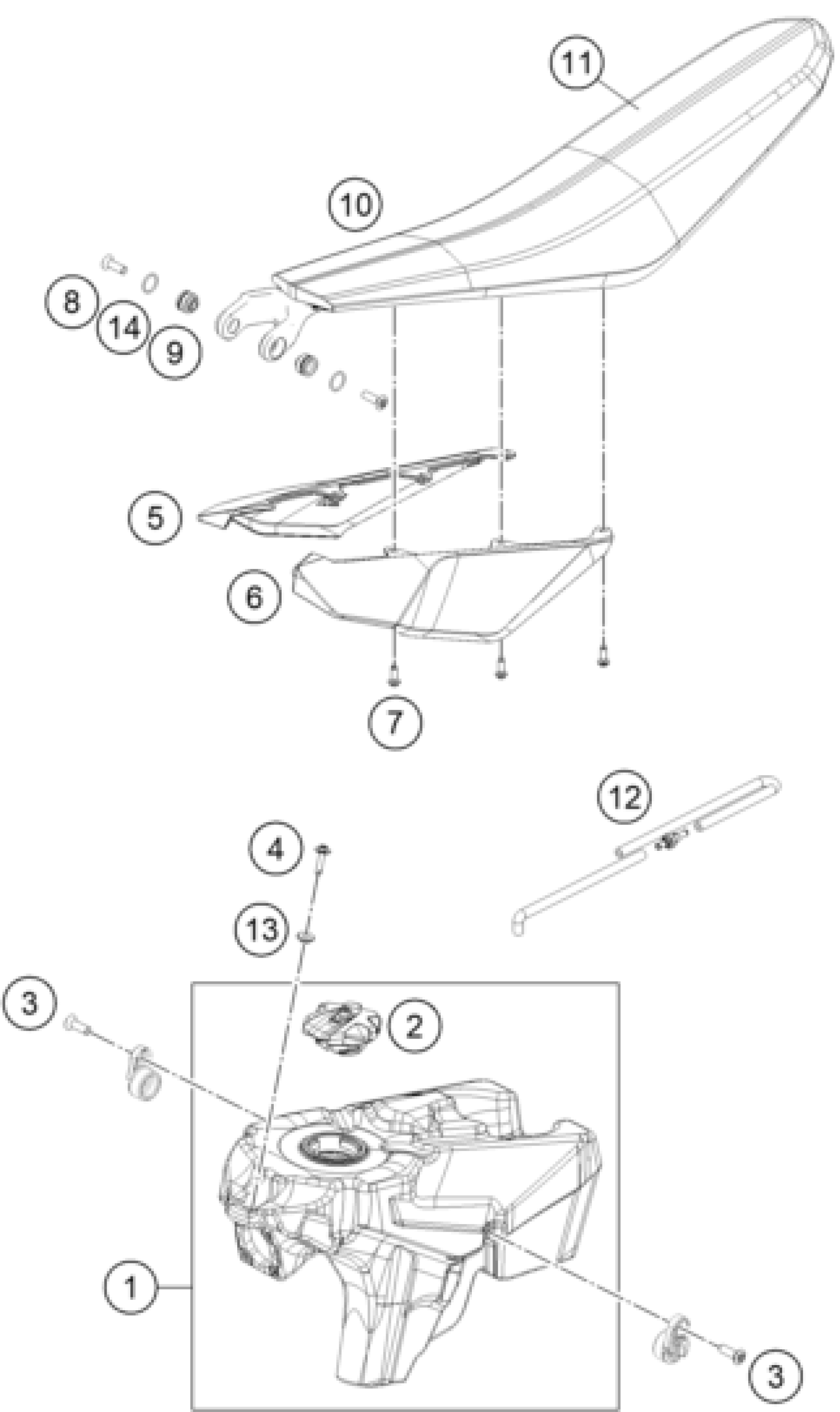

KTM Freeride 350 2012 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. FREERIDE

7200701304499

Unavailable

2

TANK PLUG ORANGE/BLACK

78007008044X4

Unavailable

3

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.69

4

COLLAR SCREW M6X27 TX

0024060273

$3.39

12

TANK BREATHER HOSE+VALVE

72007029000

$39.17

13

SPACER BUSHING 03

54808020000

$4.24

5

ACCU COVER R/S BLACK FREER. 12

7000702505130A

Unavailable

6

ACCU COVER L/S BLACK FREER. 12

7000702505030A

Unavailable

7

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

8

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.39

9

BUSHING

70003001057

$9.81

10

SEAT HIGH CPL. '13

70007040100

$156.51

11

SEAT COVER

70007040150

$57.59

14

o-ring 18.00x2.00 NBR70

0770180020

$2.54
