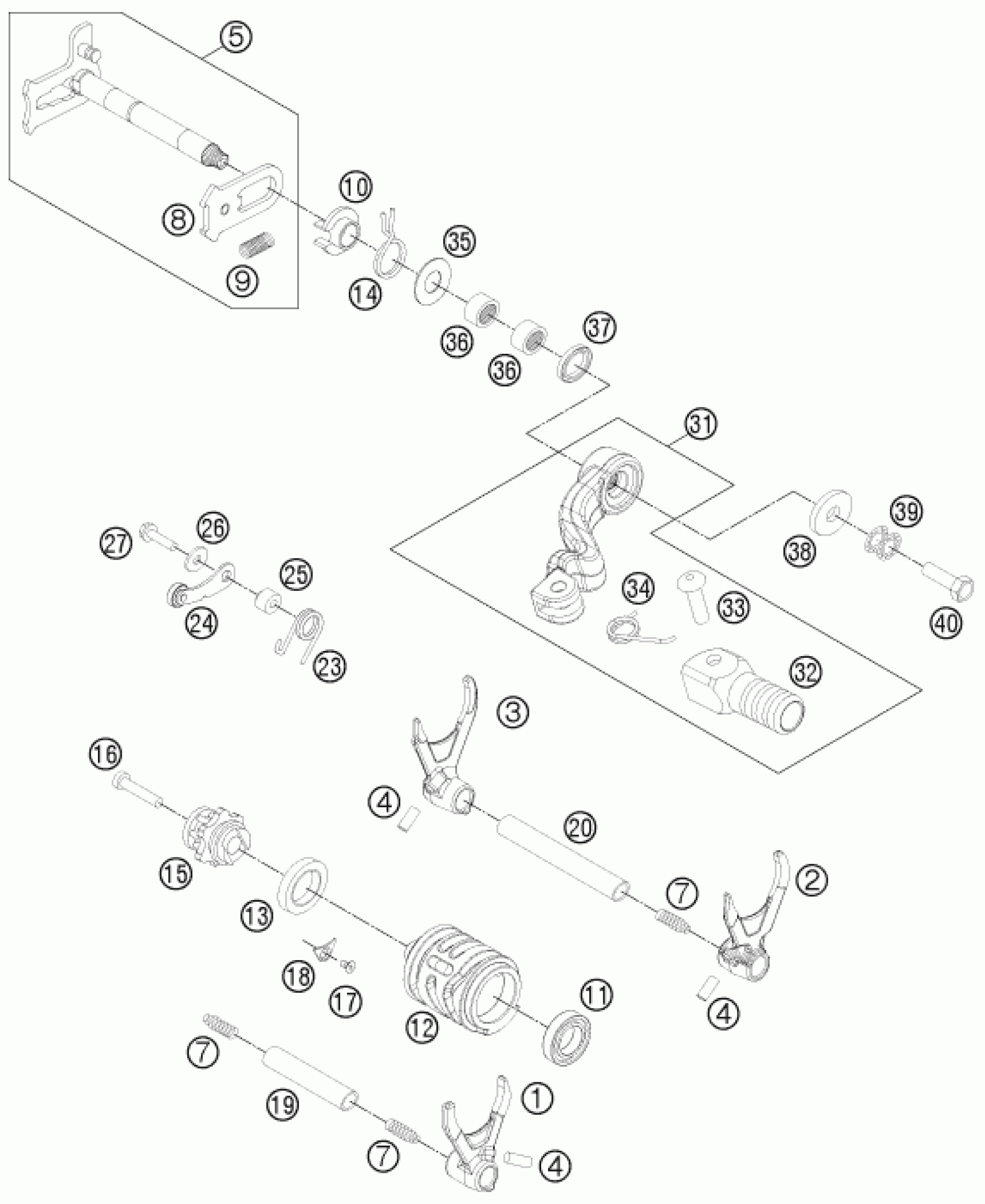

KTM Freeride 350 2012 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 5./6.G.

54834201000

$61.42

2

SHIFT FORK 2./4.G.

54834202000

$61.80

3

SHIFT FORK 1./3. G.

54834203000

$61.80

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.24

5

SHIFTING SHAFT CPL. 03

54834005044

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

$4.24

8

SLIDING PLATE CPL.

54634008044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

$1.69

10

SPRING GUIDE

54634020000

$6.44

11

BALL BEARING 6903 C4

0625069034

$20.37

12

SHIFTING DRUM

54834212000

$89.00

13

BALL BEARING 61805 C3

0625618050

$43.94

14

RETURN SPRING 03

54834014000

$4.24

15

SHIFT LOCATING DRUM CPL.

77234015000

$47.12

16

AH SCREW DIN0912-M 6X35

0912060353

$2.54

17

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

18

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

$13.74

23

ARRESTING LEVER SPRING 03

60034023000

$2.54

24

LOCATING LEVER CPL. 08

50334024144

$14.58

25

SLEEVE FOR LOCKING LEVER

54634052300

$3.39

26

washer DIN 9021 A - 5.3

0021050003

$1.69

27

HH collar screw M5x20 TX30

0025050206

$2.54

31

SHIFTING LEVER CPL.

72034031000

$73.11

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

34

SHIFTING LEVER SPRING 250

54634032100

$3.39

35

STOP DISK 14X30X1

54634050000

$2.54

36

needle sleeve HK 1412 14x20x12

54632095000

$7.00

37

radial shaft seal 14x24x6 B

0760142460

$9.25

38

STEEL WASHER 6,4X17X3

50232050001

$5.23

39

Pair of washers M6 NORDLOCK

50233041000

$4.24

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.54
