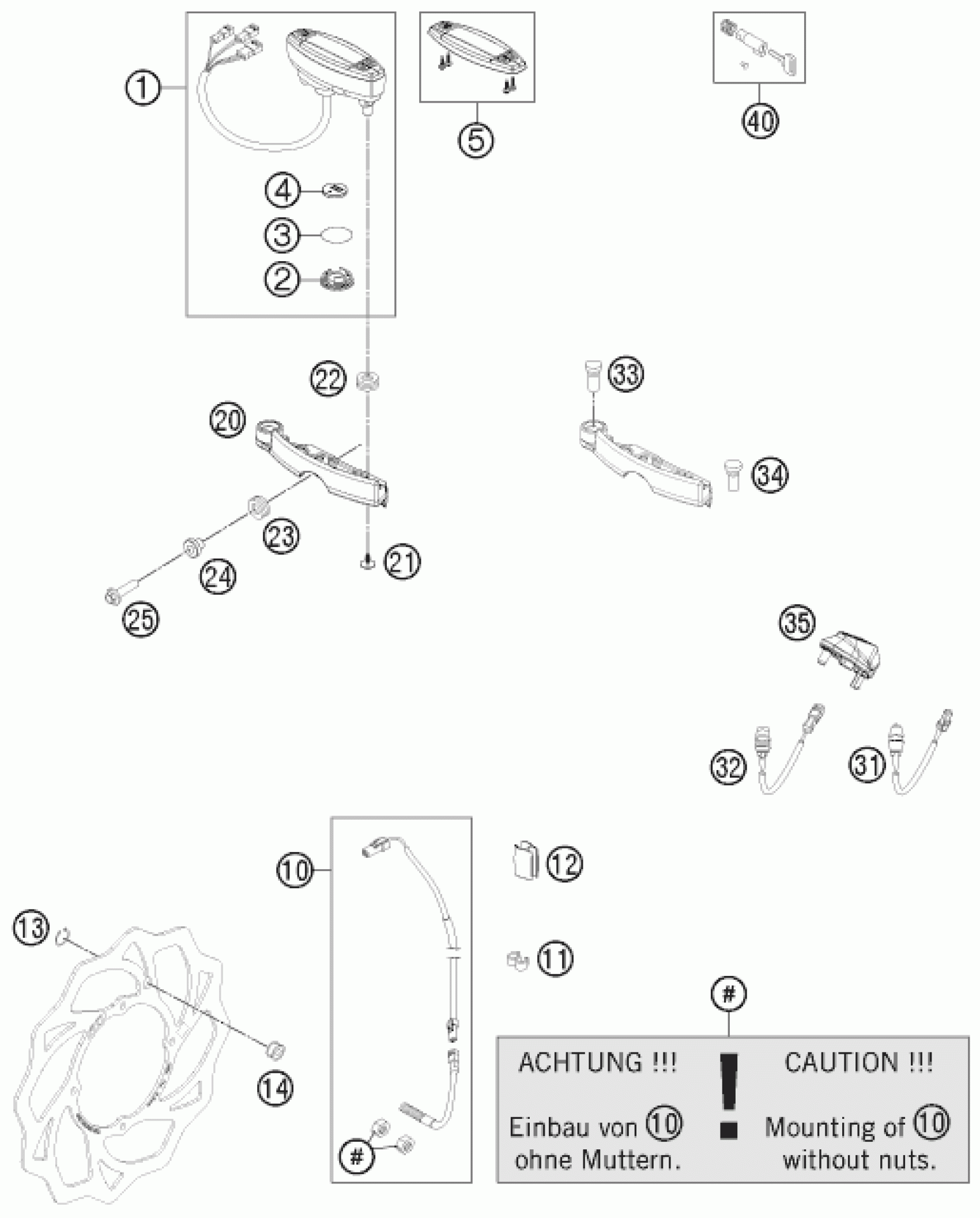

KTM Freeride 350 2012 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

O-RING 26,00X1,40

0770260014

Unavailable

4

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

5

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLIP 5/7 MM 06

60111094000

Unavailable

12

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

14

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

31

CABLE INDICATOR LIGHT LED

72014083000

Unavailable

32

CABLE INDICATOR LIGHT

72014096000

Unavailable

33

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

20

SPEEDOMETER BRACKET XC-W 08

54814060100

Unavailable

21

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

BUSHING F. SPROCKET COVER RAC.

59030060050

Unavailable

25

HH collar screw M6x20 TX30

0024060206

Unavailable

34

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

40

STEERING HEAD LOCK 08

78003035000

Unavailable

35

HOLDER INDICATOR LIGHT

72014098000

Unavailable
