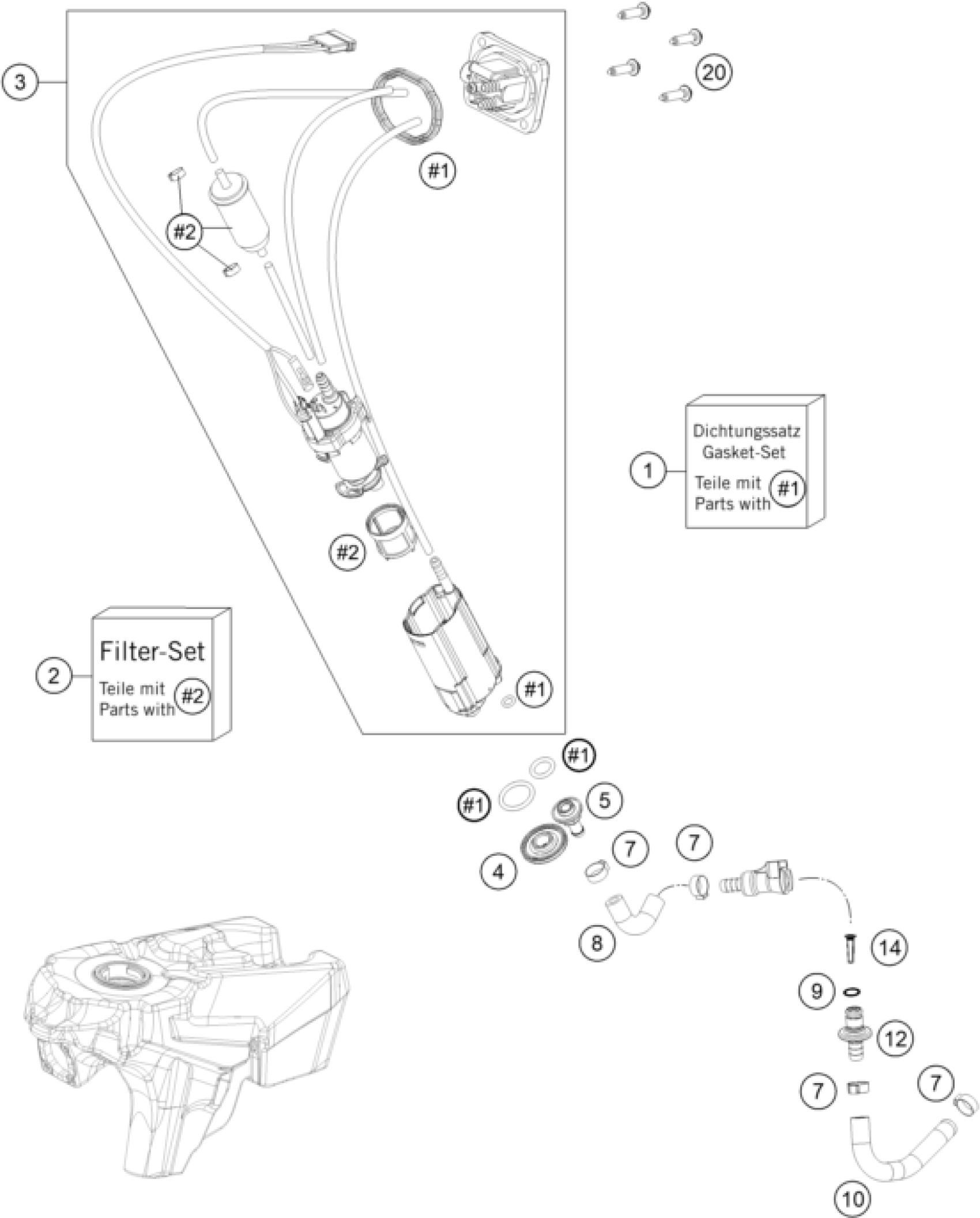

KTM Freeride 350 2012 FUEL PUMP Diagram

#

Description
Price

1

GASKET KIT

78107089000

Unavailable

2

FILTER KIT

81207090000

Unavailable

3

FUEL PUMP CPL. EXC

78107088000

Unavailable

4

NUT F. FUEL PUMP M12

78107088014

$10.00

5

FUEL CONNECTOR M8

78107088017

$12.71

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

FUEL HOSE TANK

78107116000

Unavailable

9

O-ring VITON f. plug CPC 0

58507012000

$4.24

10

FUEL PREFORMED HOSE DKK

72007016000

Unavailable

11

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

Fuel connection

77707010000

$15.14

20

EJOT PT SCREW K60X25-Z SW6

0017060253

Unavailable

14

FUEL FILTER

78141013190

$6.79
