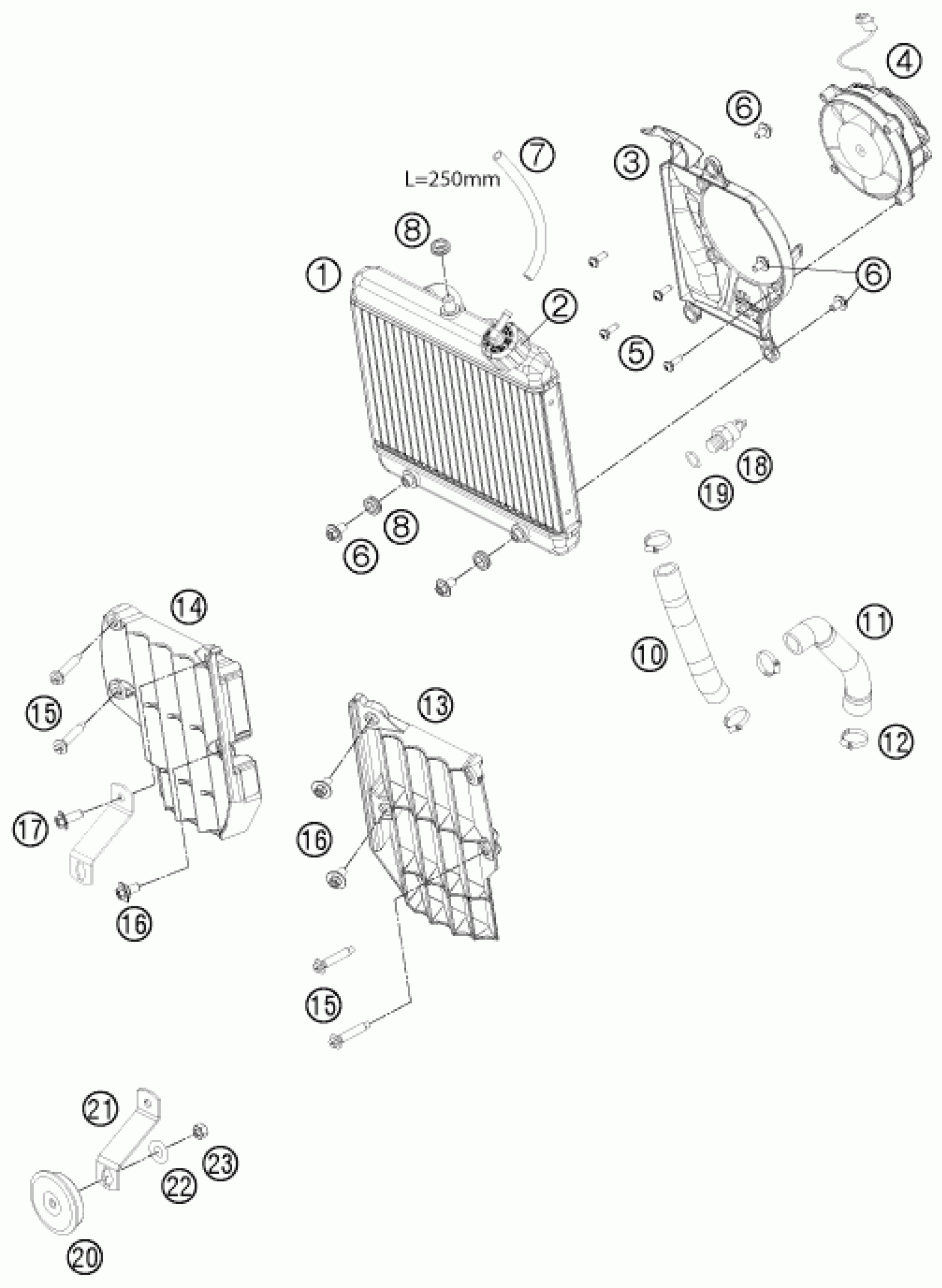

KTM Freeride 350 2012 COOLING SYSTEM Diagram

#

Description
Price

2

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

17

HH collar screw M6x15 TX30

0024060156

Unavailable

20

DC HORN 12V 07

50311060200

Unavailable

21

HORN BRACKET EXC 08

78011061000

Unavailable

22

WASHER DIN0125-A 5,3

0125050003

Unavailable

23

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

16

special screw M6x12x3

83008000012

Unavailable

19

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

10

PREFORMED HOSE CYL.-RADIATOR

72035026000

Unavailable

11

PREFORMED HOSE ENGINE/COOLER

72035025000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

RADIATOR PROTECTOR L/S BLACK

7203503400030

Unavailable

14

RADIATOR PROTECTOR R/S BLACK

7203503500030

Unavailable

15

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

1

RADIATOR

72035010000

Unavailable

3

FAN COWL

72035044000

Unavailable

4

FAN CPL. 12V LC4 2000

58435041000

Unavailable

5

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

6

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

7

PVC-HOSE 6X9

50335030001

Unavailable

8

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

Unavailable

18

THERMOSWITCH 95-100 DG

78035045000

Unavailable
