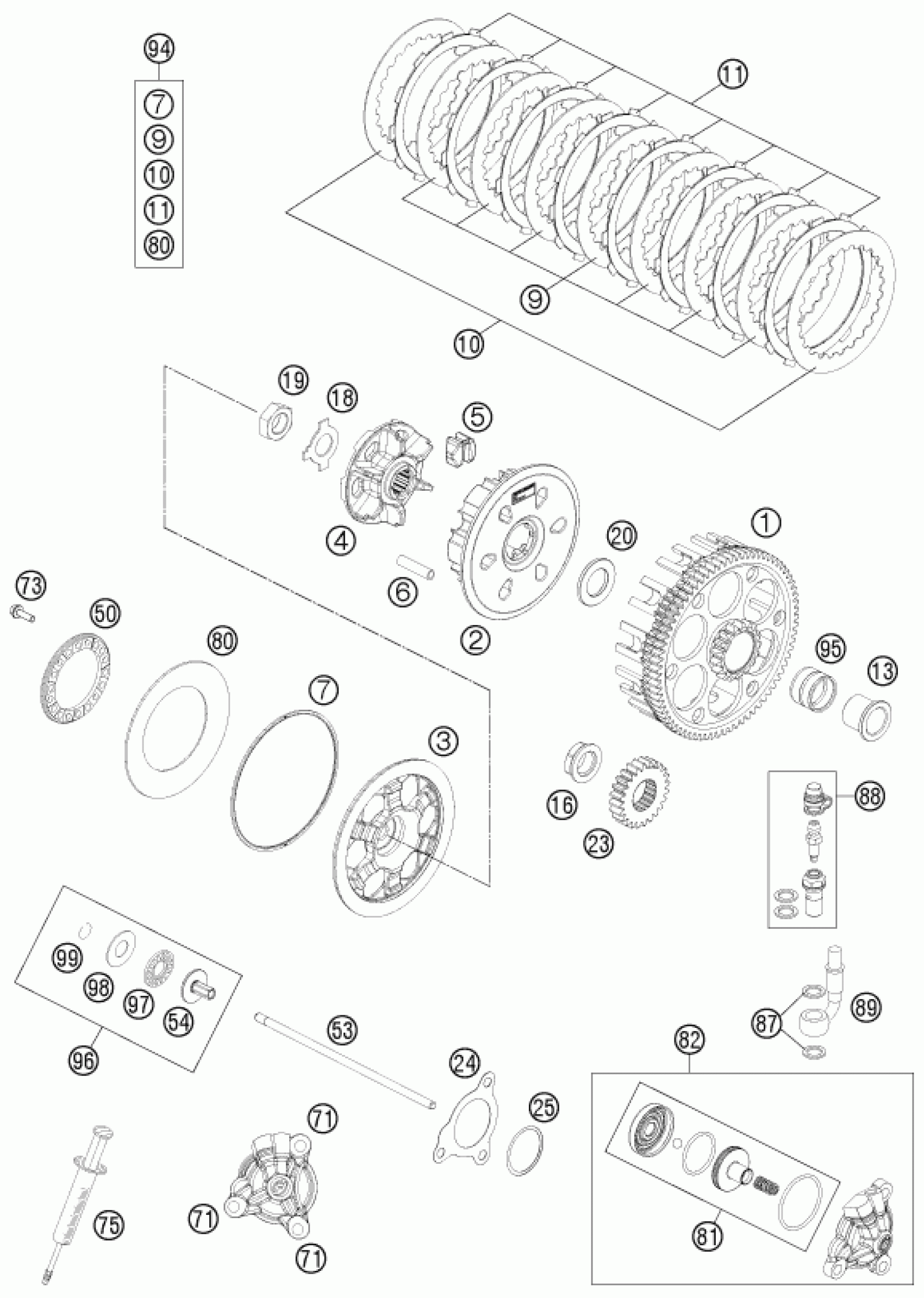

KTM Freeride 350 2012 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH CPL.

77232001073

Unavailable

2

INNER CLUTCH HUB

78132002008

Unavailable

3

PRESSURE PLATE

78132003000

Unavailable

4

HUB

78132002111

Unavailable

5

DAMPING RUBBER

78132025100

$4.24

6

SLEEVE 7,5X33.4

78132004000

$4.24

7

WASHER 112X118X1.5

78132013000

$10.84

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

11

LINING DISC 2MM 04

59032011100

Unavailable

13

INNER RING

77232015000

Unavailable

16

NUT PRIMARY WHEEL

77230029000

Unavailable

18

LOCK WASHER

56532018000

$6.26

94

CLUTCH KIT 450 SX-F/EXC 12

78132011110

Unavailable

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

WASHER 21,8 X 37 X 5,1

77232009000

$8.13

23

PRIMARY GEAR 24T.

77232023024

$94.52

24

GASKET F. OUTPUT CYLINDER

77232062000

$4.24

25

O-ring 30x1.5 NBR 70

0770300015

$2.54

50

SPRING RING

72032006000

Unavailable

53

PUSH ROD

77232054000

$16.54

54

PRESSURE PIECE

78032057000

Unavailable

71

HH collar screw M6x16 TX30

0025060166

$3.39

73

HH collar screw M5x16 TX30

0025050166

$2.54

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

BELLEVILLE SPRING 71X115X1,5 I

78132005000

$31.97

81

PISTON CPL.

72032066000

$65.07

82

OUTPUT CYLINDER CPL.

72032061044

Unavailable

87

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.39

88

BLEEDER SCREW CPL.

72032064000

$31.97

89

CLUTCH PIPE

72032063000

$113.69

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

96

PRESSURE PIECE CPL. 08

78032057044

$26.08

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

99

CIRCLIP DIN7993-RW12

0993012000

$3.39
