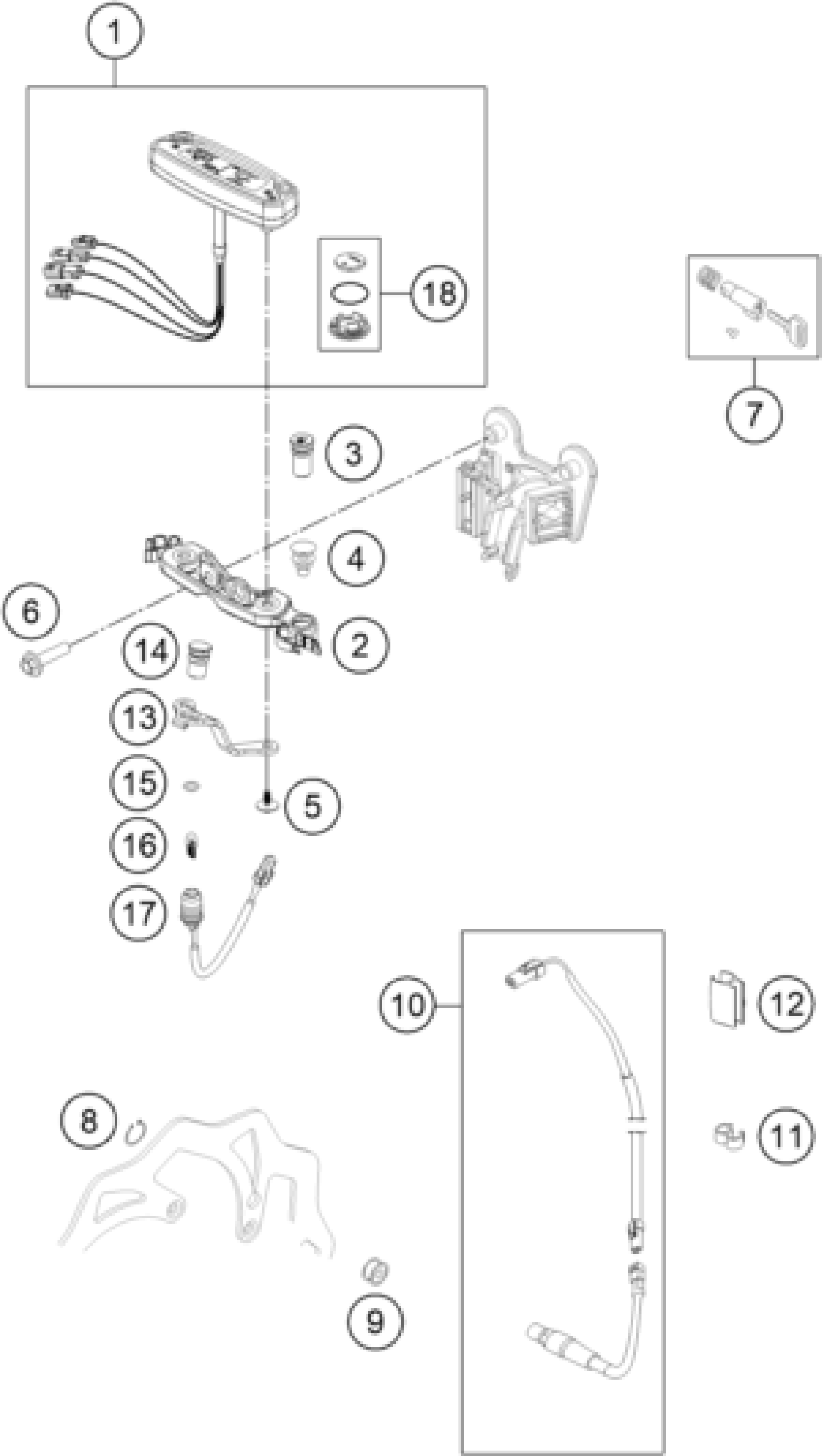

KTM FREERIDE 250 R 2014 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

13

BRACKET FOR CONTROL LIGHT

72514087000

Unavailable

14

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

5

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

STEERING HEAD LOCK 08

78003035000

Unavailable

8

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

9

MAGNET FOR SPEEDOMETER

81314069050

Unavailable

10

CABLE FOR SPEEDOMETER

81314068000

Unavailable

11

CLIP 5/7 MM 06

60111094000

Unavailable

12

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

18

BATTERY COVER F. SPEEDOMETER

81314069010

Unavailable

1

DIGITAL SPEEDOMETER

81314069000

Unavailable

2

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

Unavailable

3

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

4

Plug SFL16

50210086000

Unavailable

15

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

16

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

17

CABLE INDICATOR LIGHT

77711091000

Unavailable
