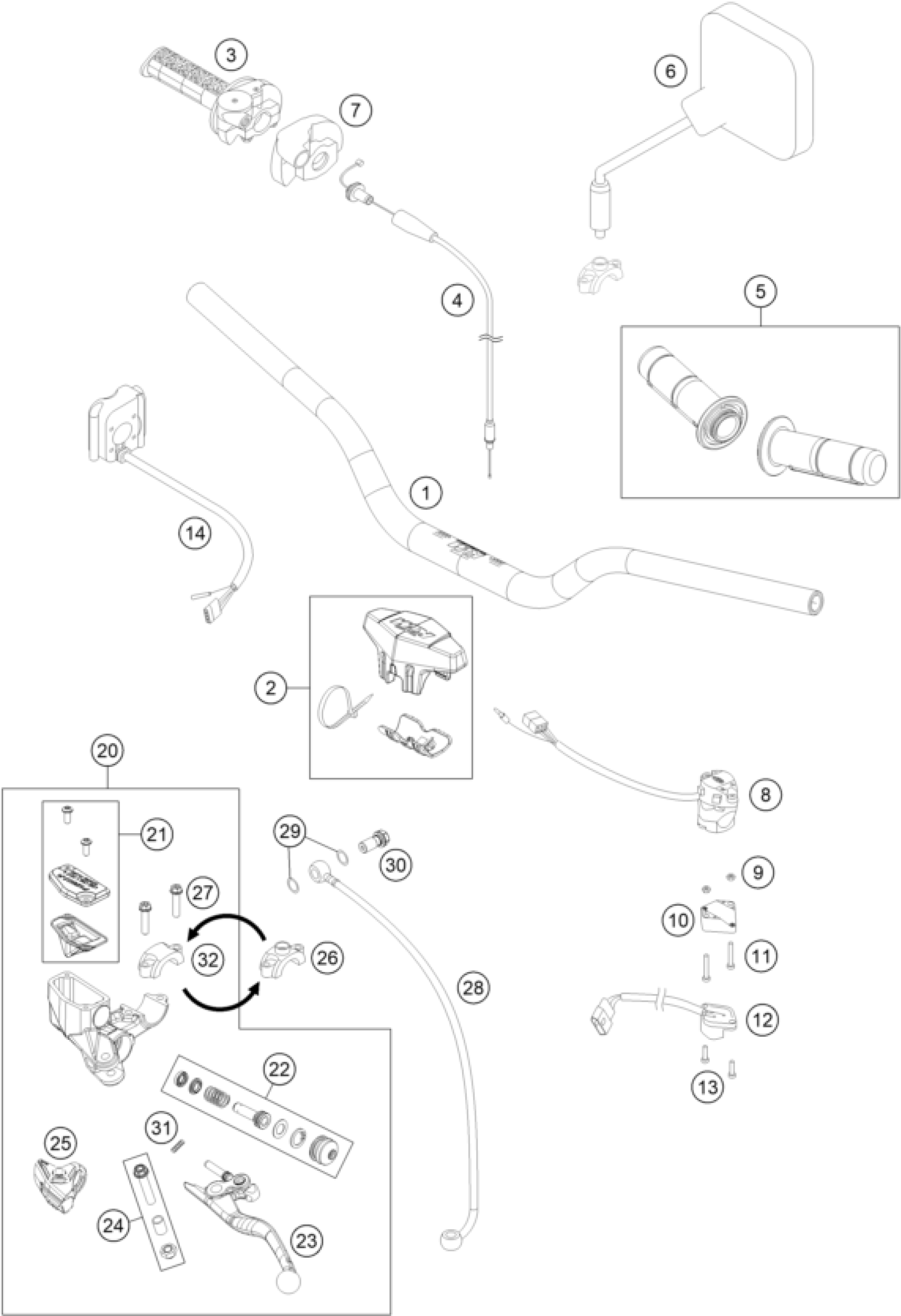

KTM FREERIDE 250 R 2014 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR BLACK D=28MM

7000200100030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

THROTTLE GRIP CPL. 2ST. 13

51502010200

Unavailable

4

THROTTLE CABLE 2T.DOM/KEIH.

51502091100

Unavailable

5

GRIP SET DUAL COMPOUND

63002021100

Unavailable

6

Rear view mirror left

58012040000

Unavailable

6

Rear view mirror right

58012140000

Unavailable

7

PROTECTION COVER '97

50302020000

Unavailable

8

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

9

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

10

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

11

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

12

FLASHER SWITCH CEV '98

50311029000

Unavailable

13

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

14

START-STOP SWITCH

77711074000

Unavailable

20

MASTER CYLINDER CPL. 10MM

72002030100

Unavailable

21

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

22

REP. KIT PISTON 10MM

72002032000

Unavailable

23

Lever cmpl.

72013002000

Unavailable

24

LEVER SCREW CPL.

70002038000

Unavailable

25

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

26

Clamp for mirror

58012040150

Unavailable

27

HH collar screw M6x25 TX30

0025060256

Unavailable

28

CLUTCH PIPE

47132063000

Unavailable

29

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

30

Hollow screw, brake cylinder 0

47013025000

Unavailable

31

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

32

CLAMP

72013005000

Unavailable
