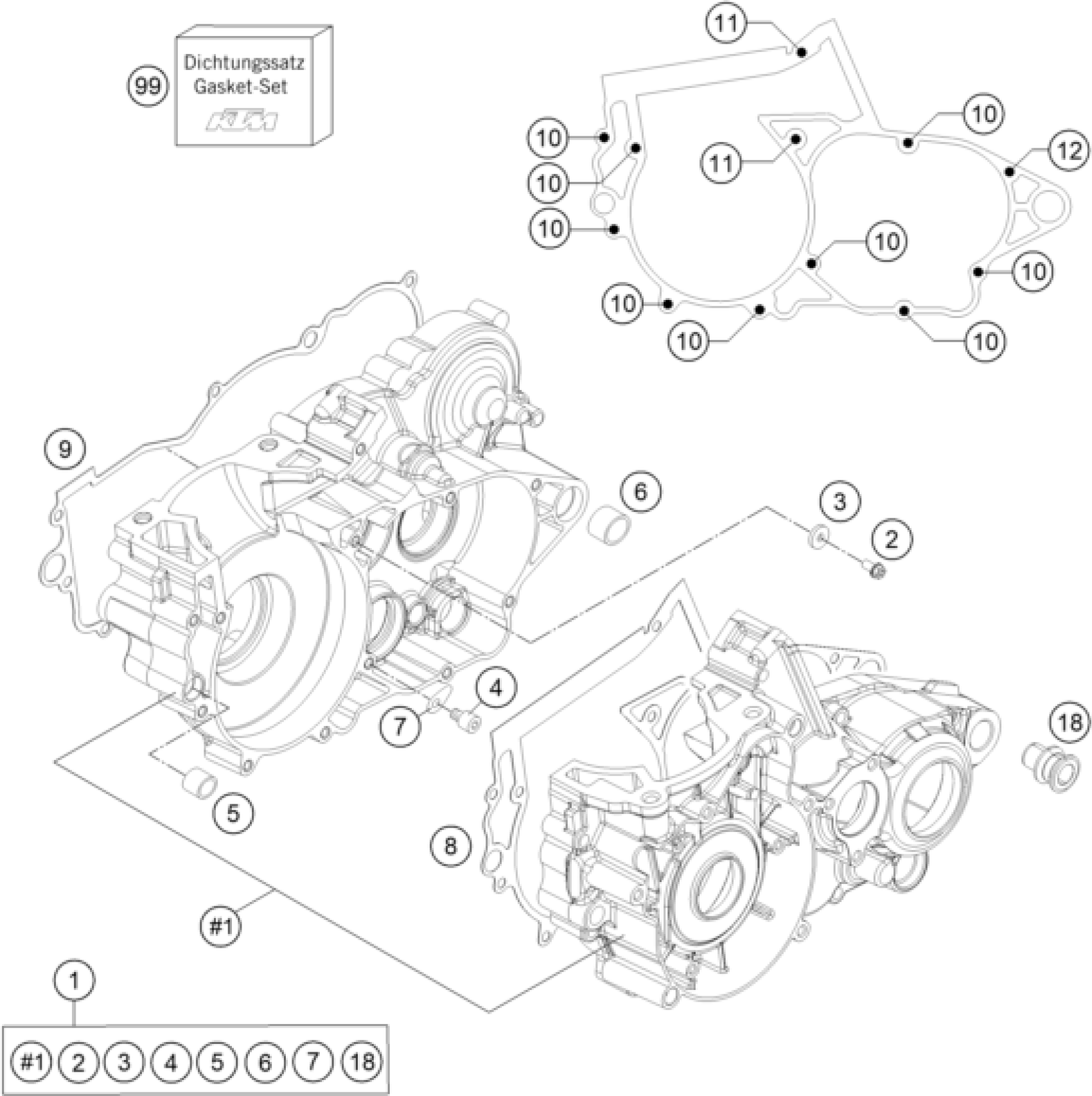

KTM FREERIDE 250 R 2014 ENGINE CASE Diagram

#

Description
Price

5

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

1

ENGINE CASE FREERIDE 2S. 14

72530000033

Unavailable

7

RETAINING PLATE

54634049000

Unavailable

18

CASE BUSH L/S

72530010000

Unavailable

8

ENGINE CASE GASKET 2003

54830039000

Unavailable

9

CLUTCH COVER GASKET INSIDE

54830024100

Unavailable

99

GASKET SET 250/300 08

55130099000

Unavailable

2

HH collar screw M6x12 TX30

0025060126

Unavailable

3

STEEL WASHER 6,4X17X3

50232050001

Unavailable

4

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

6

DOWEL 21X12 03

54830027000

Unavailable

10

HH collar screw M6x40 TX30

0025060406

Unavailable

11

HH collar screw M6x55 TX30

0025060556

Unavailable

12

HH collar screw M6x60 TX30

0025060606

Unavailable
