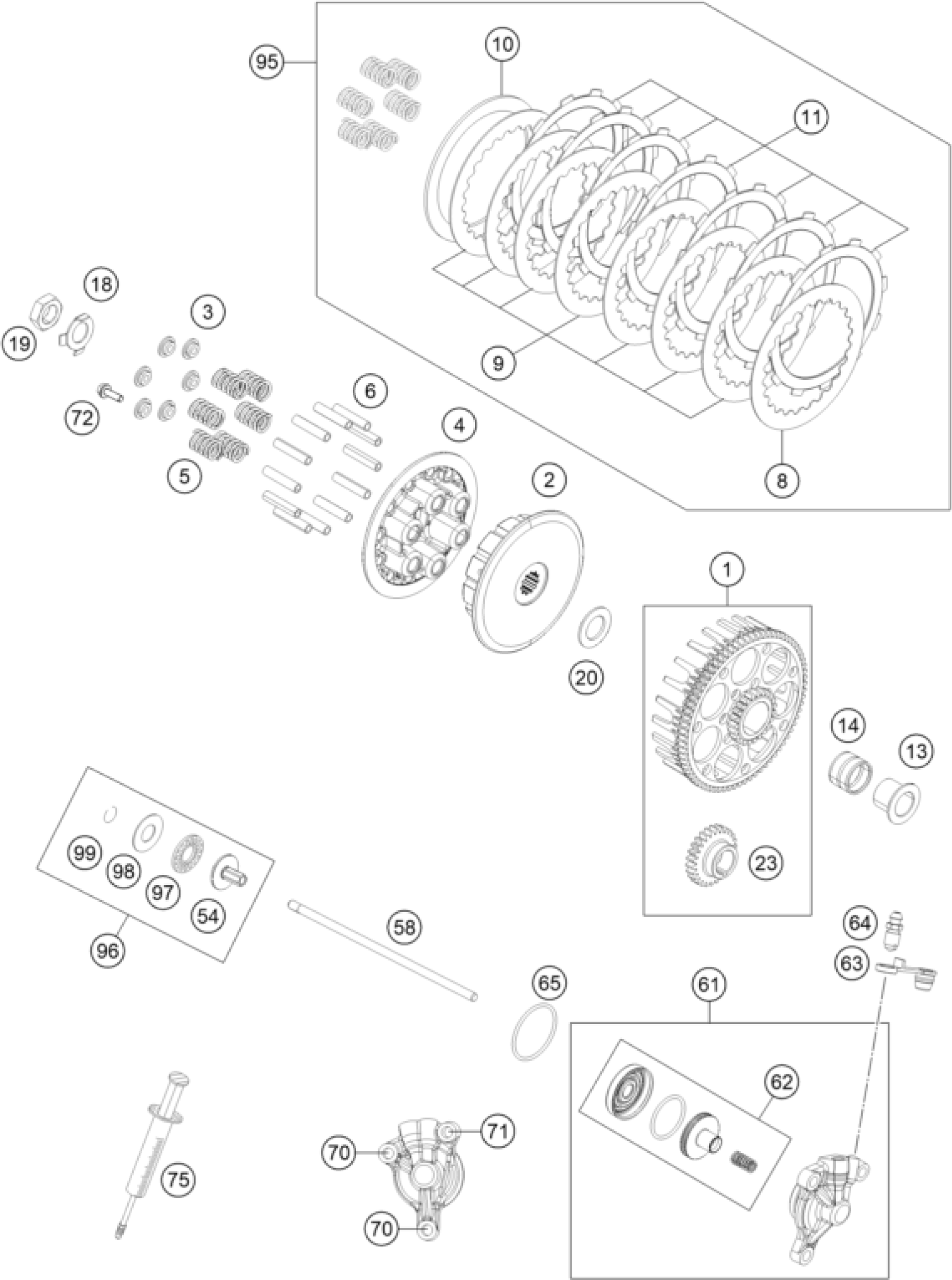

KTM FREERIDE 250 R 2014 CLUTCH Diagram

#

Description
Price

1

CLUTCH CAGE INCL. PRIM. WHEEL

54832024044

Unavailable

2

INNER CLUTCH HUB

77232002000

Unavailable

4

PRESSURE PLATE

77232003000

Unavailable

72

HH collar screw M6x25 TX30

0025060256

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

Unavailable

96

PRESSURE PIECE CPL. 08

78032057044

Unavailable

95

CLUTCH KIT 250 FREERIDE

72532010010

Unavailable

6

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

8

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

10

ALU DISC 3MM

72532010000

Unavailable

11

LINING DISC 1,95 MM

54832011100

Unavailable

13

INNER RING 21.65X26X24.5

54832015100

Unavailable

14

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

18

TAB WASHER

78132018000

Unavailable

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

20

WASHER 21.7 X 37 X 2.5

54832009000

Unavailable

23

PRIMARY GEAR 26T 2003

54832000026

Unavailable

54

PRESSURE PLATE 85 SX 2003

47032054000

Unavailable

71

HH collar screw M6x30 TX30

0025060306

Unavailable

70

HH collar screw M6x16 TX30

0025060166

Unavailable

98

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

3

Spring retainer 6.2X12X18X5.2

59032006050

Unavailable

64

BLEEDER SCREW M8X1

47013085000

Unavailable

61

OUTPUT CYLINDER CPL.

47132061044

Unavailable

62

Piston cmpl.

47132066000

Unavailable

58

PUSH ROD

54832054100

Unavailable

65

O-RING 31,47X1,78

0770031018

Unavailable

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

5

CLUTCH SPRING

77032005100

Unavailable

63

CAP FOR BLEEDER SCREW

47013021000

Unavailable
