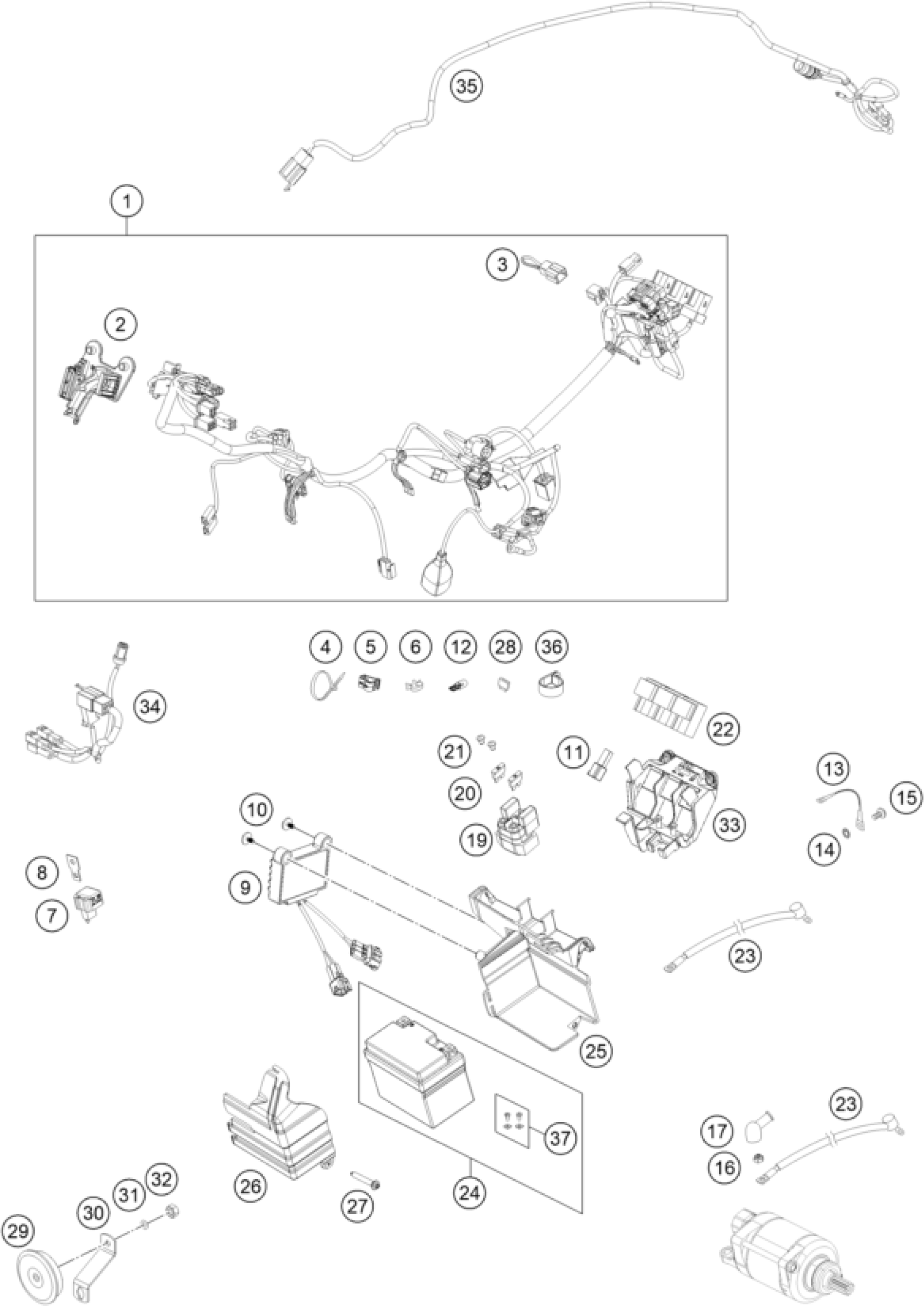

KTM Freeride 250 F 2020 WIRING HARNESS Diagram

#

Description
Price

1

Wiring harness cmpl. Freeride

72111075133

Unavailable

2

SUPPORT BRACKET

77711083000

Unavailable

3

Plug Key Lock

79611020000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

FLASHER UNIT

76511030000

Unavailable

8

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

9

VOLTAGE REGULATOR

79611034000

Unavailable

10

EJOT PT SCREW K50X12 WN5452

0081650121

Unavailable

11

END PLUG CAN-BUS 08

69011040000

Unavailable

12

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

13

GROUND CABLE

72511097000

Unavailable

14

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

15

COLLAR SCREW M6X12 TX

0024060123

Unavailable

16

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

17

Protection cap for starter eng

77240099000

Unavailable

19

Starter relay

76211058000

Unavailable

20

Plug-in fuse, big 20A

58011109120

Unavailable

21

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

22

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

23

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

24

battery 12V/24Wh

79111053000

Unavailable

25

Battery holding compartment

72111054000

Unavailable

26

Battery mounting cap

72111054010

Unavailable

27

SPECIAL SCREW T60 6X40 WS=6

0017060405

Unavailable

28

FUSE MINI 5A

75011088005

Unavailable

28

FUSE 10A 07

75011088010

Unavailable

29

DC HORN 12V 07

50311060200

Unavailable

30

HORN BRACKET EXC 08

78011061000

Unavailable

31

WASHER DIN0125-A 5,3

0125050003

Unavailable

32

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

33

Electric tray

72111052000

Unavailable

34

Flasher harness front

72111080000

Unavailable

35

Flasher harness rear

72111081000

Unavailable

36

Clamp D=25,4 mm

57013070500

Unavailable

37

screw kit

79111053010

Unavailable
