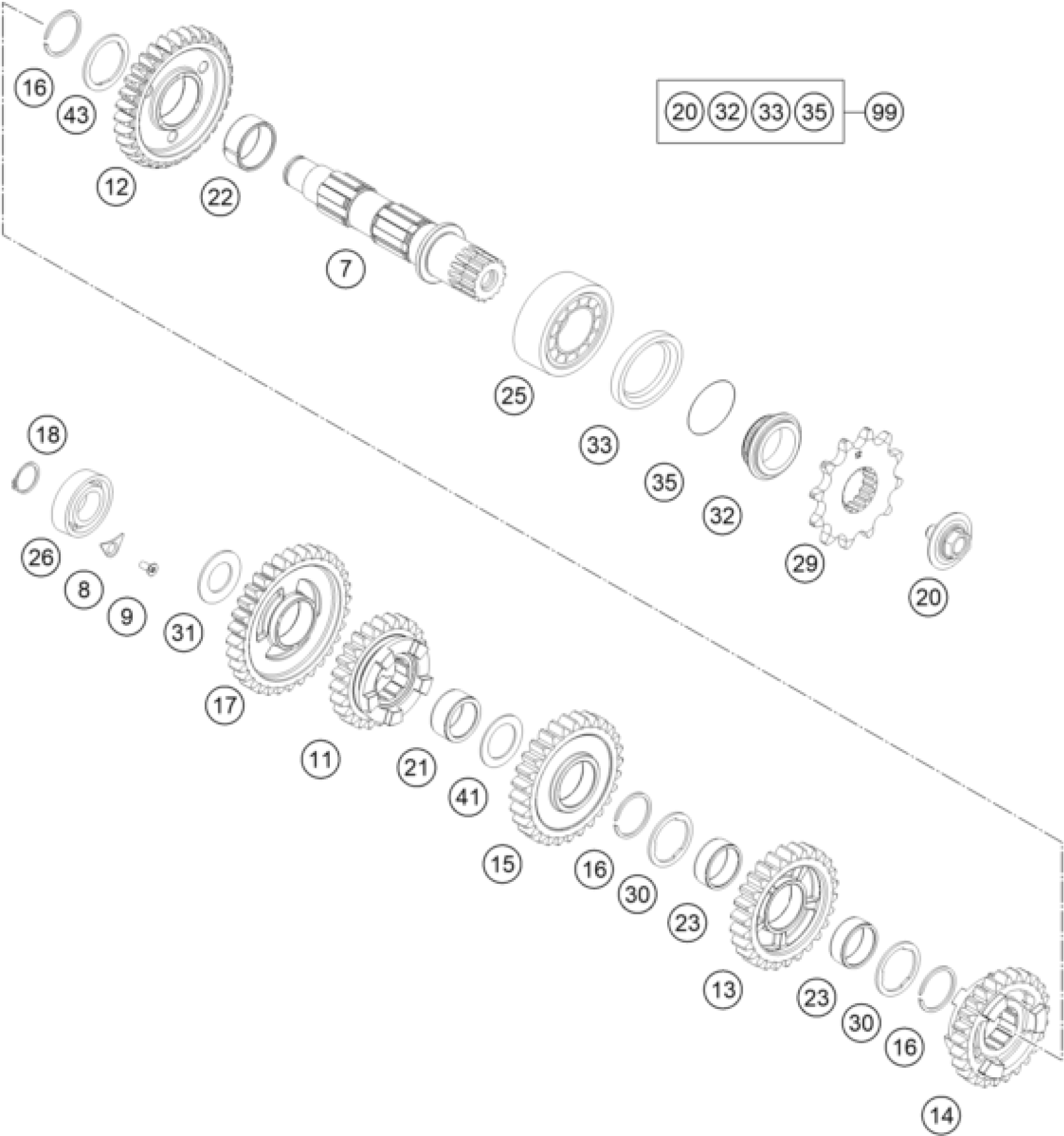

KTM Freeride 250 F 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

Countershaft

79133110000

Unavailable

8

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

9

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

Sliding gear, 6th gear, teeth=

79133216000

Unavailable

12

Idle gear, 2nd gear teeth=30

79133212000

Unavailable

13

Idle gear, 4th gear teeth=28

79133214000

Unavailable

14

Sliding gear, 5th gear, teeth=

79133215000

Unavailable

15

Idle gear, 3rd gear teeth=24

79133213000

Unavailable

16

CIRCLIP WS24

0417024000

Unavailable

17

Idle gear, 1st gear teeth=32

79133211000

Unavailable

18

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

25

cylindrical roller bearing NJ2

49030023000

Unavailable

26

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

29

FRONT SPROCKET 12-T

50033029012

Unavailable

30

STOP DISC 23,4X31X1,5

77733043000

Unavailable

31

STOP DISK 17,2X30X1,3

77233020000

Unavailable

32

SPACER SLEEVE COUNTER

78133014000

Unavailable

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

35

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

41

STOP DISC 20,2X30X1

54833080000

Unavailable

43

STOP DISC 24X32X1,5

77733044000

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
