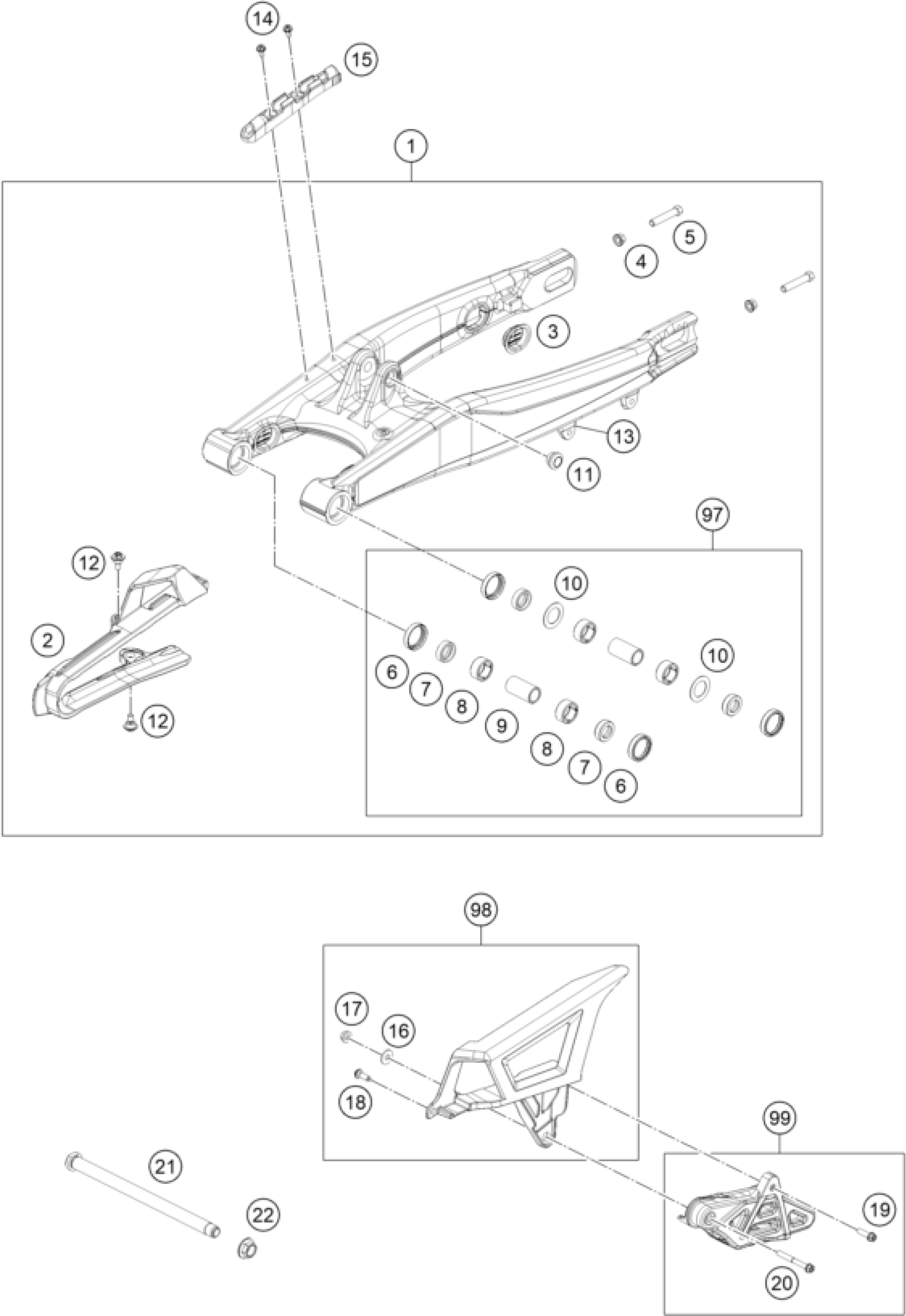

KTM Freeride 250 F 2020 SWING ARM Diagram

#

Description
Price

1

Swingarm cpl.

72104030044

Unavailable

2

Chain glide protector

72104066000

Unavailable

3

Locking cap swingarm

77204041000

Unavailable

4

flanged nut M8 WS10

46030045000

Unavailable

5

HH SCREW M8X40 WS=10

50203030090

Unavailable

6

radial shaft seal 25x32x7

0760253270

Unavailable

7

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

8

NEEDLE BUSH HK 2012

50203097000

Unavailable

9

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

10

Shim 20x31.9x1

59033080000

Unavailable

11

Threaded bush M12 d20

50180105

Unavailable

12

Special screw M6x15x5.5

83008100015

Unavailable

13

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

14

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

15

BRAKE HOSE GUIDE

70013047000

Unavailable

16

Washer DIN9021-A 6.4

0021060003

Unavailable

17

Self locking nut M6 - 10

56509064100

Unavailable

18

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

19

HH collar screw M6x20 TX30

0025060206

Unavailable

20

HH collar screw M6x50 TX30

0025060506

Unavailable

21

Swingarm pivot

70004037100

Unavailable

22

hex nut M14x1.5 WS17

77204087000

Unavailable

97

SWINGARM REP. KIT 105/85 SX

47004230010

Unavailable

98

CHAIN PROTECTION KIT FREERIDE

70004060110

Unavailable

99

Chain guide kit

77304070310

Unavailable
