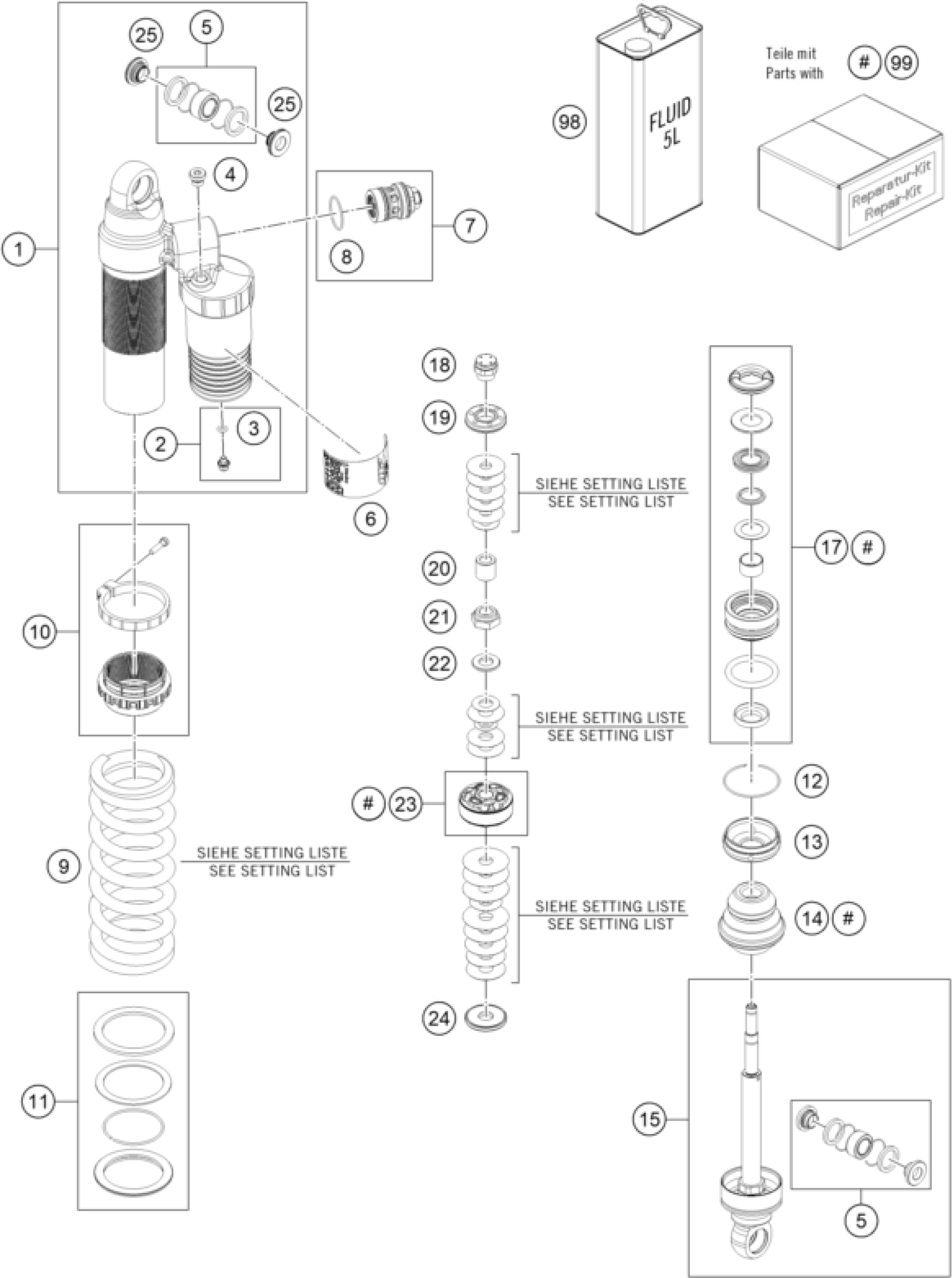

KTM Freeride 250 F 2020 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock housing M53x1 h56 cpl.

46181267S2

Unavailable

2

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

3

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Ball joint bearing kit top 12m

R12012

Unavailable

6

Sticker XPLOR PDS 90x40

52000233

Unavailable

7

Compression PDS cpl. 2020

50181101S42

Unavailable

8

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

10

Plastic Spring Retainer D46 cp

46181382S

Unavailable

11

SPRING CUP SET PDS 17

RP10005

Unavailable

12

Round-wire snap ring 49x1,5

46810010

Unavailable

13

Cover 46,12x15 h5,5 red

46181351

Unavailable

14

Rubber pad 17x48x55

46181237

Unavailable

15

Schock absorber bot. cpl.

46181301S2

Unavailable

17

Sealholder 46x28 cpl.

46180669S

Unavailable

18

Nut PDS M10x1 h17,2 WAF19 cpl.

46181365S

Unavailable

19

Piston 15,4x35,4x6

46181416

Unavailable

20

Bush 10x17x17

46181025

Unavailable

21

Piston rod nut M12x1

46810474

Unavailable

22

Washer 12x24x2,5

46811258

Unavailable

23

Piston 12x46x20 cpl.

46181328S

Unavailable

24

Rebound disc 12x36x4 h0

46181194

Unavailable

25

Ball joint bearing kit 12mm

RP10011

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repairing kit shock absorber P

RP10020

Unavailable

9

Mainspring (59) 58-66-74-200 d

91020027

Unavailable

9

Mainspring (59-61-59) 58/68/78

91020028

Unavailable

9

Spring I=200mm 69N/mm white

91010378

Unavailable
