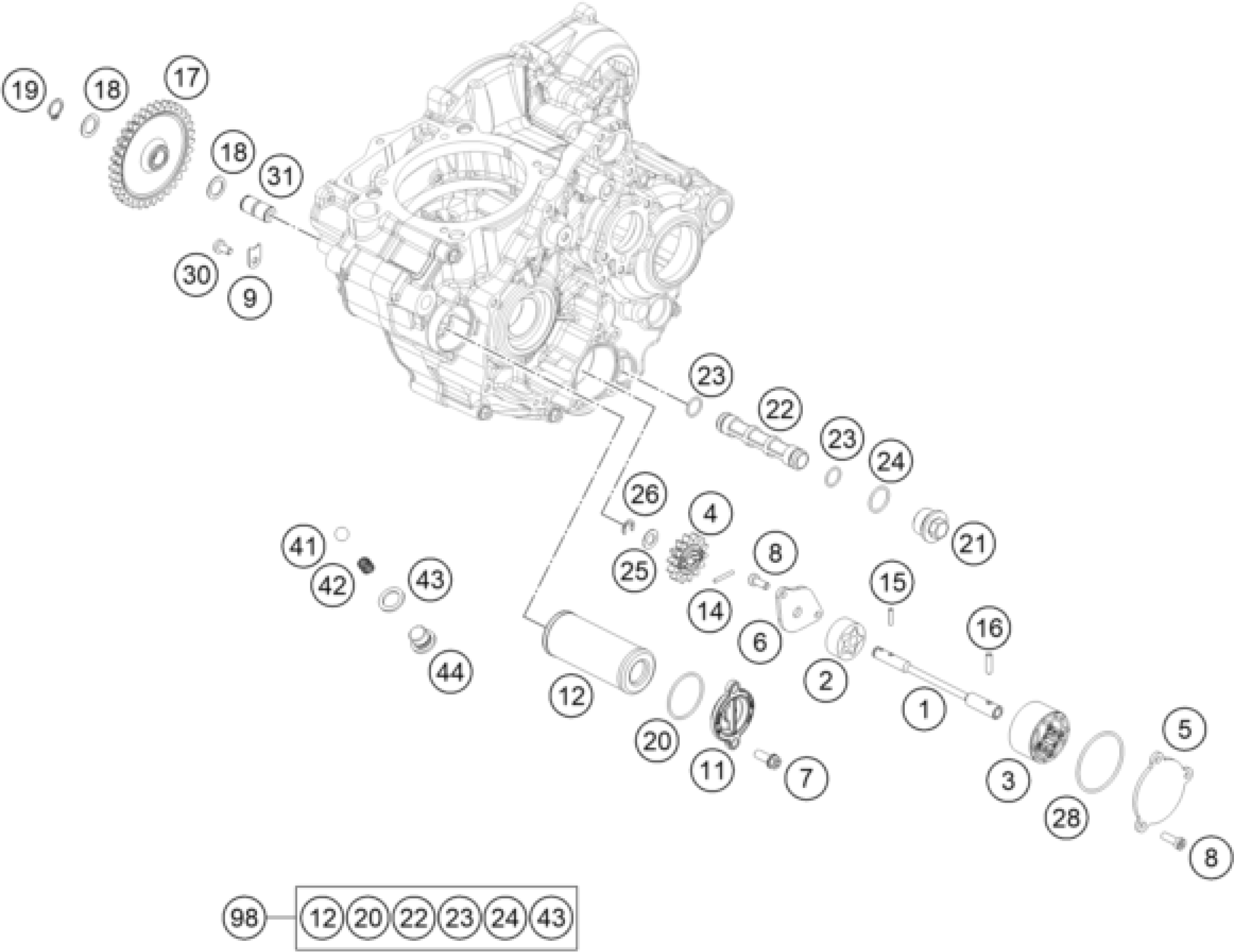

KTM Freeride 250 F 2020 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oil pump shaft

79238002100

Unavailable

2

OILPUMP ROTOR-SET 12MM CPL.

59038011112

Unavailable

3

ROTOR SET 22MM

61238011100

Unavailable

4

OIL PUMP GEAR 14T 08

77038001100

Unavailable

5

OIL PUMP COVER LEFT

79238004000

Unavailable

6

OIL PUMP COVER RIGHT

79238003000

Unavailable

7

HH collar screw M6x16 TX30

0025060166

Unavailable

8

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

9

AXIAL-CIRCLIP

77238061050

Unavailable

11

OIL FILTER COVER 08

77338041200

Unavailable

12

Oil Filter 07

77338005100

Unavailable

14

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

15

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

16

needle roller NRB 4x15.8 G2

0402041580

Unavailable

17

Oil pump idler-gear

79238006100

Unavailable

18

SHIM WASHER DIN0988-12X18X0,50

0988121805

Unavailable

19

retaining ring DIN 471 12x1

0471120010

Unavailable

20

O-RING 33,05X1,78

07703305178

Unavailable

21

PLUG M20X1,5 WS=13

59038017100

Unavailable

22

OIL SCREEN

59038016100

Unavailable

23

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

24

O-RING 17,17X1,78 GLO

0770020170

Unavailable

25

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

26

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

28

O-RING 44,00X2,00 VITON

0770440020

Unavailable

30

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

31

BUSHING PIN

77038013100

Unavailable

41

BALL DIN5401-9

0401090003

Unavailable

42

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

43

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

44

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

98

OILFILTER-GASKET SET 350 SX-F

00050000083

Unavailable
