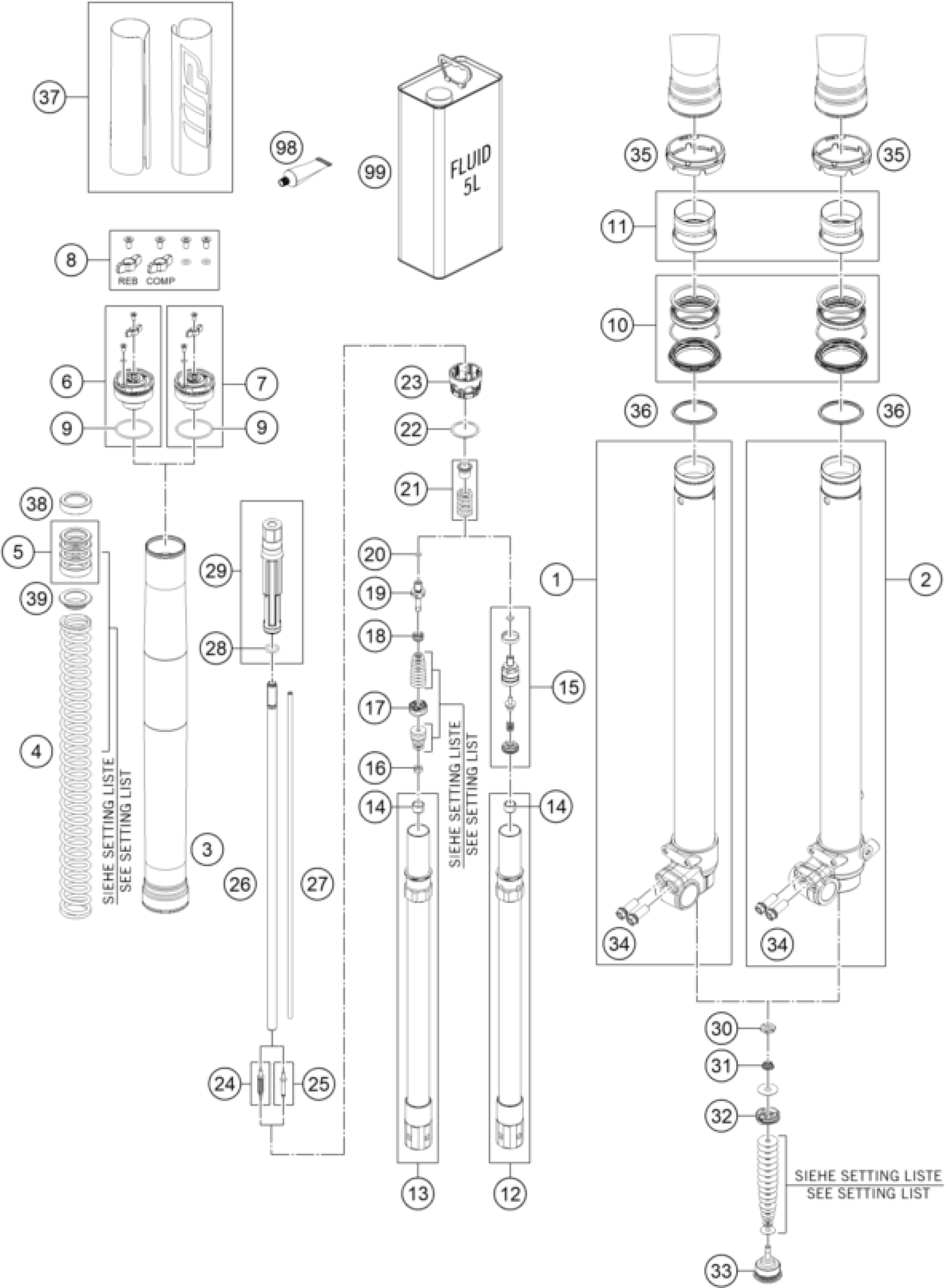

KTM Freeride 250 F 2020 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp right + tube cpl.

43570810S1

Unavailable

2

Axle clamp left + tube cpl.

43570809S1

Unavailable

3

Fork outer tube 44x510 dt49 db

43570935

Unavailable

5

REP. KIT SPACER

R14054

Unavailable

6

Screw cap M46x1,5 cpl.

43570928S

Unavailable

7

Screw cap M46x1,5 cpl.

43570951S

Unavailable

8

Adjuster kit screw cap

RP10021

Unavailable

9

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

10

GASKET SET

R513

Unavailable

11

GUIDE BUSHING SET

R14042

Unavailable

12

Cartridge tube 23x330 cmpl.

48600870S8

Unavailable

13

Cartridge tube 23x330 cmpl.

48600870S9

Unavailable

14

Guide bushing 12x14x10

48600430

Unavailable

15

Tap compression cpl.

48601843S

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

17

Midvalve piston assembly d23

48602002S

Unavailable

18

Spring (11,7) 1,5-8 valve

35480377

Unavailable

19

Tap 6x46 rebound

48600576

Unavailable

20

O-ring 6x1,2 NBR70

48600299

Unavailable

21

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

22

Shim 27,5x33x0,3

48601702

Unavailable

23

Spring retainer 27,3x59,6x26,5

43570808

Unavailable

24

Needle 4,5x43,6 cpl.

48600277S

Unavailable

25

Needle 4,5x38,2 cpl.

48601558S

Unavailable

26

Piston rod 12x483

48601822

Unavailable

27

Adjustment tube 6x453,6

43570941

Unavailable

28

O-ring 11x2,5 NBR70 PTFE yello

04500003

Unavailable

29

Stop 12.4x28.6x167 cmpl.

43570860S

Unavailable

30

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

31

Spring (8,5) l6,5 valve

48600202

Unavailable

32

Piston 6x27,3x9 compression cp

48601934S

Unavailable

33

Screw cap M29,3x1 OC split cpl

48601553S

Unavailable

34

HH collar screw M8x20

0025080206

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

36

Stroke indicator d43 red

43570926

Unavailable

35

Fork protection ring 55,1mm

43570915

Unavailable

37

Sticker set XPLOR OC 214x161

52000232SET

Unavailable

4

SPRING 4,6 N/MM SET

95010050S

Unavailable

4

SPRING 4,8 N/MM SET

95010054S

Unavailable

4

Spring l=415mm 5,0 N/mm

95010087

Unavailable

38

Preload bush 26x38x10

43570135

Unavailable

39

Spring retainer 26,2x40,5x2

43570869

Unavailable
