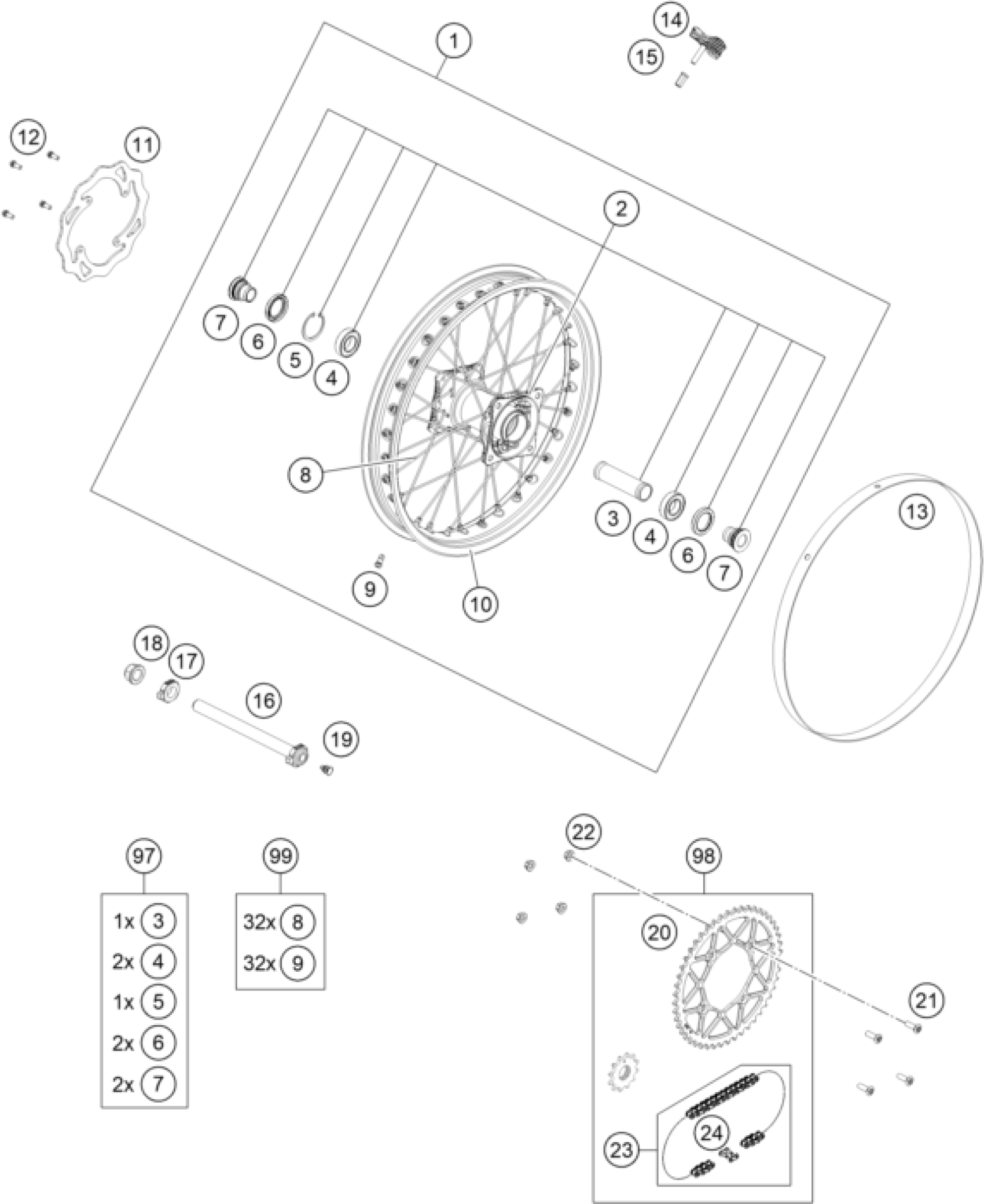

KTM Freeride 250 F 2018 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cpl. black 18

7211000104433

Unavailable

2

Rear wheel hub cpl.

70010010144

Unavailable

3

BEAR.SPACER TUBE ´12

70010011000

$26.17

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.39

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB 08

78010016000

$32.90

8

SPOKE REAR 193 MM BLACK

7001007119330

$4.24

9

Spoke nipple M4.5 AL

77109072000

$3.39

10

Rim back Freeride KTM

7211007000033

$236.27

11

BRAKE DISK REAR

72510060000

$131.17

12

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.54

13

Tube protector 18"

72010073000

$38.05

14

RIM LOCK 2,15''

78110090000

Unavailable

15

NUT FOR WHEEL HOLDER

77110090050

$5.23

16

WHEEL SPINDLE REAR CPL. 12

70010085044

$75.17

17

Chain tensioner right 12

70010084000

$16.07

18

Hexagon nut M20x1.5

50310099000

$11.30

19

Plug SFL16

50210086000

$3.39

20

SPROCKET 48-T BLACK

7201005104830

$51.60

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.39

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.54

23

CHAIN DID 118 LINKS

78010167118

Unavailable

24

CONNECTING LINK F. 78010167118

78010166000

Unavailable

98

Drive set 12 /48

00050002097

Unavailable

97

REAR WHEEL REP. KIT

70010015000

$72.27

99

SPOKE KIT REAR '18'

00050000962

$175.02
