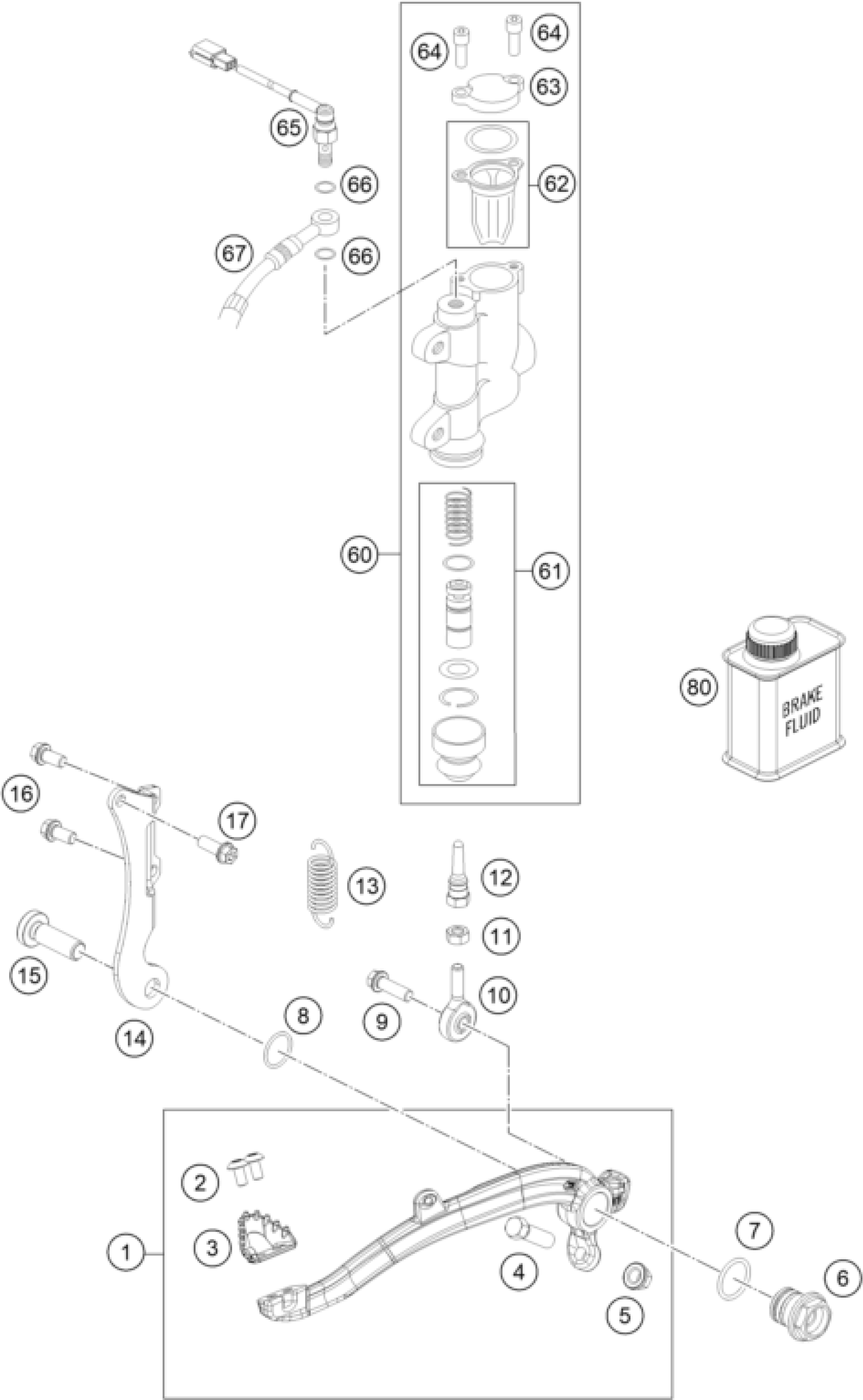

KTM Freeride 250 F 2018 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Rear brake lever cpl.

72113050044

Unavailable

2

SCREW TORX M5X10 05

58605083010

$2.54

3

Step brake lever 16

79413051000

Unavailable

4

SPECIAL SCREW M8X26 WS=10

59001037000

$3.39

5

flanged nut M8 WS10

46030045000

$7.85

6

NUT FOOT BRAKE LEVER SW19 '12

72013053000

$30.47

7

o-ring 18.00x2.00 NBR70

0770180020

$2.54

8

O-RING 12,5X1,5 NBR

0770125015

$2.54

9

HH collar screw M6x20 TX30

0025060206S

$2.54

10

SWIVEL HEAD KA6 03

54813055000

Unavailable

11

Hex. nut DIN 934 M6

0934060003

$1.69

12

PUSH ROD

46213056000

$12.61

13

RETURN SPRING FOR BRAKE LEVER

54603062100

Unavailable

14

SUP. PLATE BRAKECYL. REAR 12

72013065000

$17.66

15

AH collar screw M10x30 ISA45

0035100309S

$3.39

16

HH collar screw M6x12 TX30

0025060126

$3.39

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.54

60

FOOT BRAKE CYL. REAR CPL. D=12

4701306030001S

$189.14

61

Rep.set piston, rear D=12 2004

47013061100

$75.45

62

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

63

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

64

AH.SCREW DIN0912-M 4X10

0912040103

$2.54

65

BRAKE LIGHT SWITCH REAR

72011051000

$93.40

66

O-RING 8,00X1,00 FORMULA

0770080019

$2.54

67

REAR BRAKE HOSE L=540MM DOT

72013071100

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

$11.89
