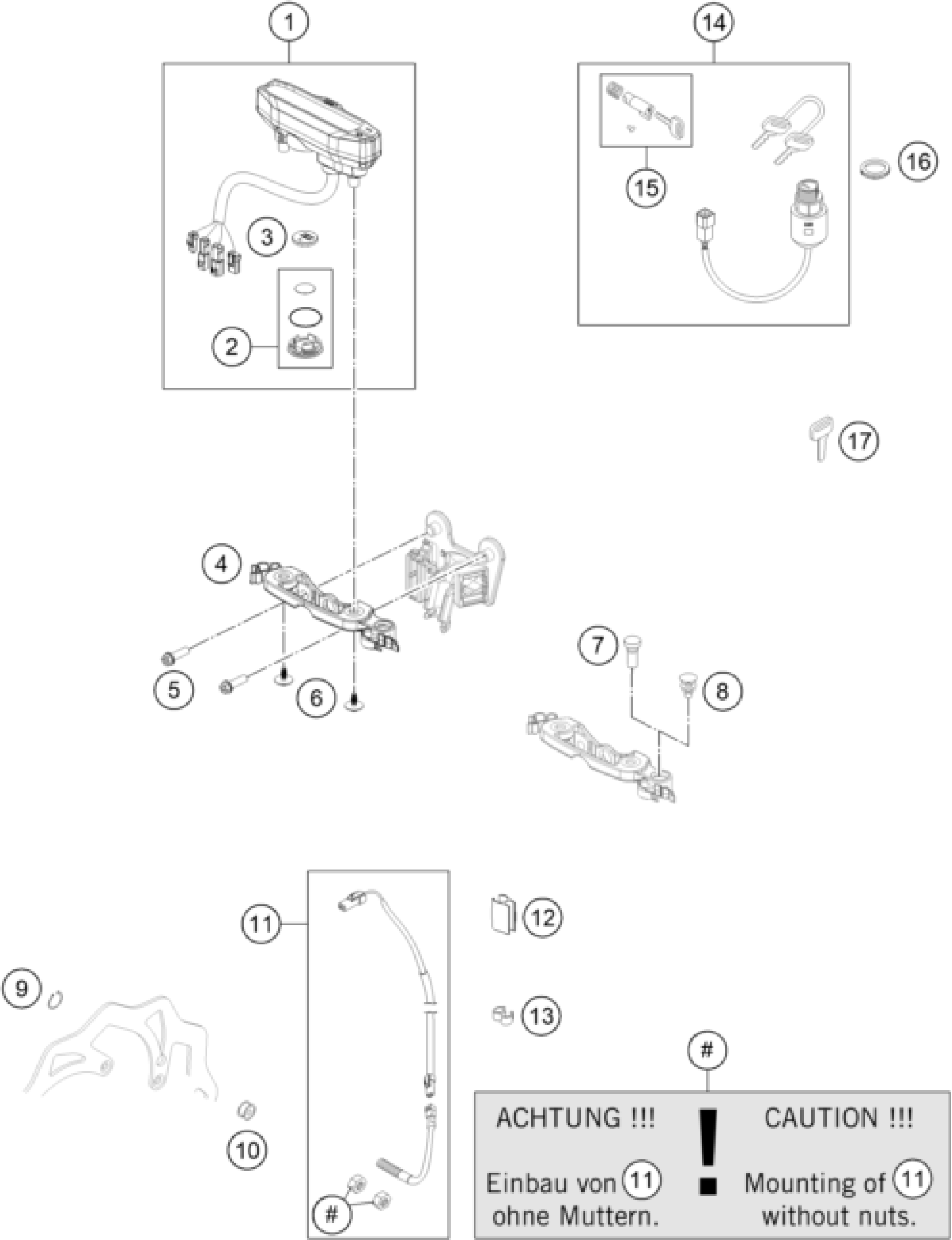

KTM Freeride 250 F 2018 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

Speedometer digital km/h f. 21

77714069600

Unavailable

2

BATTERY COVER F. SPEEDOMETER

77714069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

11

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

13

CLIP 5/7 MM 06

60111094000

Unavailable

10

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

9

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

4

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

Unavailable

6

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

5

HH collar screw M6x20 TX30

0024060206

Unavailable

7

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

8

Plug SFL16

50210086000

Unavailable

12

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

15

STEERING HEAD LOCK 08

78003035000

Unavailable

14

IGNITION LOCK SET STR.LE 08

78011065100

Unavailable

16

IGNITION LOCK NUT M24X1

50311066050

Unavailable

17

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable
