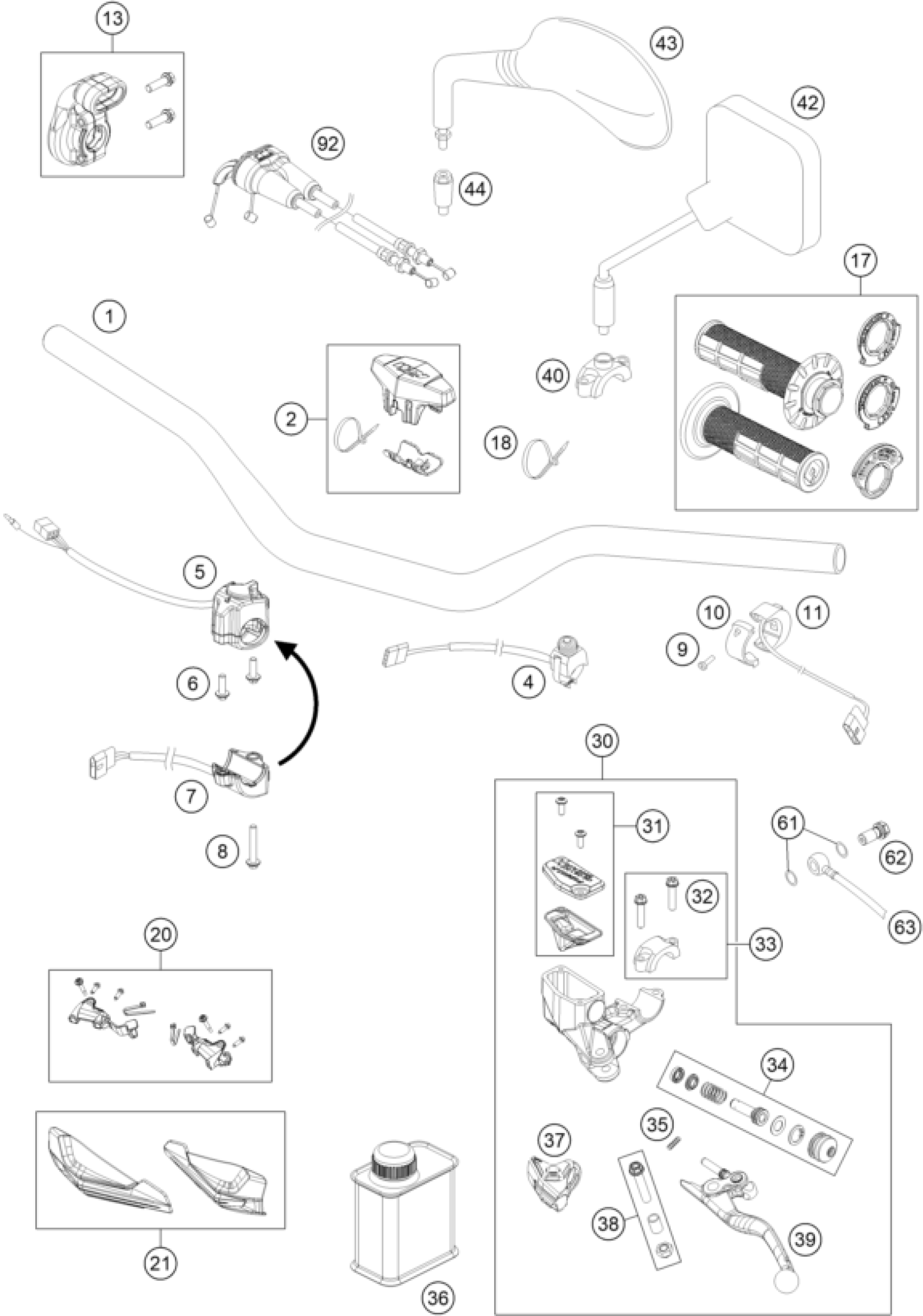

KTM Freeride 250 F 2018 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR

7800200100030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

5

LIGHT SWITCH

78111070000

Unavailable

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

7

FLASHER SWITCH

78111029000

Unavailable

8

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

9

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

10

CLAMP ENGINE STOP SWITCH

50311074050

Unavailable

11

ENGINE STOP SWITCH CEV

50311074000

Unavailable

13

THROTTLE CONTROL CASING CPL.

79002010025

Unavailable

17

GRIP SET

79002021100

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

20

Assembly kit

72102084044

Unavailable

21

Handguard

79602182044EB

Unavailable

30

HAND BRAKE CYL. CPL. E-SX

70013001300

Unavailable

31

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

32

HH collar screw M6x25 TX30

0025060256

Unavailable

33

CLAMP

72013005000

Unavailable

34

Reapair kit, piston

70013008000

Unavailable

35

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

38

LEVER SCREW CPL.

70002038000

Unavailable

39

Lever cmpl.

72013002000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

63

Clutch pipe

72132063000

Unavailable

92

THROTTLE CABLE CPL. 4STROKE

79002091000

Unavailable

62

Hollow screw, brake cylinder 0

47013025000

Unavailable

61

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable
