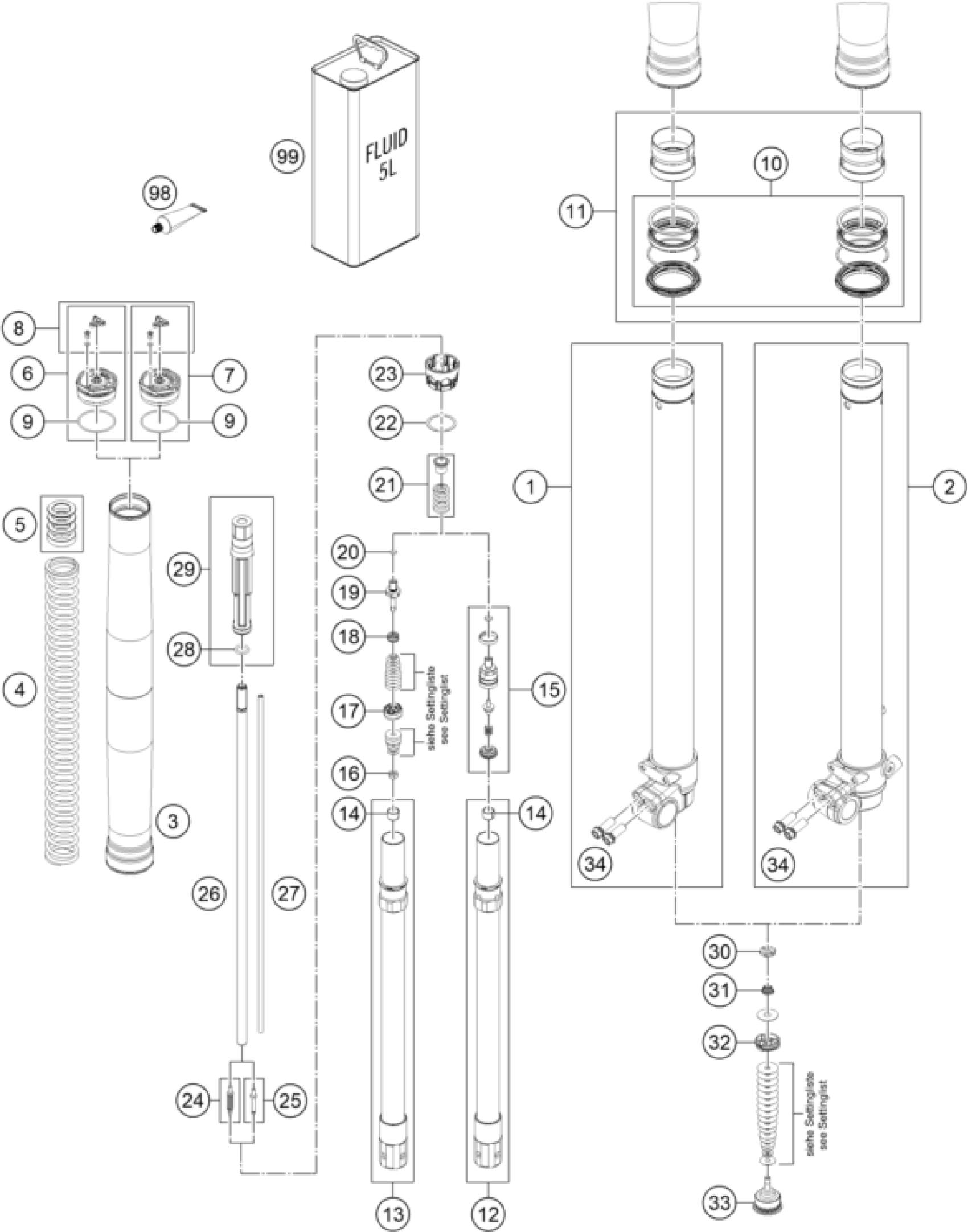

KTM Freeride 250 F 2018 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp right + tube cpl.

43570810S1

Unavailable

2

Axle clamp left + tube cpl.

43570809S1

Unavailable

3

Fork outer tube 44,14x510 dt49

43570614E

Unavailable

4

SPRING 4,6 N/MM SET

95010050S

Unavailable

4

Spring l=415mm 5,0 N/mm

95010087

Unavailable

4

SPRING 4,8 N/MM SET

95010054S

$145.85

5

REP. KIT SPACER

R14054

Unavailable

6

Screw cap M46x1,5 cpl.

43570807S

$90.97

7

Screw cap M46X1,5 cpl.

43570806S

Unavailable

8

SCREW CAP SMALL PART KIT

R14033

Unavailable

9

O-ring 41x2 NBR70 siliconized

43570023

$13.55

10

Fork sealing kit 43mm red

R516

Unavailable

11

Revision Kit 43mm

RP10017

Unavailable

12

Pipe incl. threaded sleeve wit

48600870S2

Unavailable

13

Pipe incl. threaded sleeve

48600870S1

Unavailable

14

Guide bushing 12x14x10

48600430

$6.44

15

Tap compression cpl.

48601843S

$63.38

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

17

Piston 6x23x13 cpl.

48600575S1

Unavailable

18

Spring (11,7) 1,5-8 valve

35480377

$2.05

19

Tap 6x46 rebound

48600576

$9.72

20

O-ring 6x1,2 NBR70

48600299

$1.49

21

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

22

Shim 27,5x33x0,3

48601702

$10.74

23

Spring retainer 27,3x59,6x26,5

43570808

$10.37

24

Needle 4,5x43,6 cpl.

48600277S

$8.97

25

Needle 4,5x38,2 cpl.

48601558S

$11.59

26

Piston rod 12x483

48601822

$208.31

27

Adjustment tube 6x450,6

48601839

Unavailable

28

O-ring 11x2,5 NBR70 PTFE yello

04500003

$1.49

29

Stop 12.4x28.6x167 cmpl.

43570860S

$68.15

30

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

31

Spring (8,5) l6,5 valve

48600202

$2.05

32

Piston 6x27,8x9 compression cp

48600047S

$15.04

33

Screw cap M29,3x1 OC split cpl

48601553S

$25.70

34

HH collar screw M8x20

0025080206

$2.05

98

Fuchs grease IPR (250g)

T14034

$34.59

99

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59
