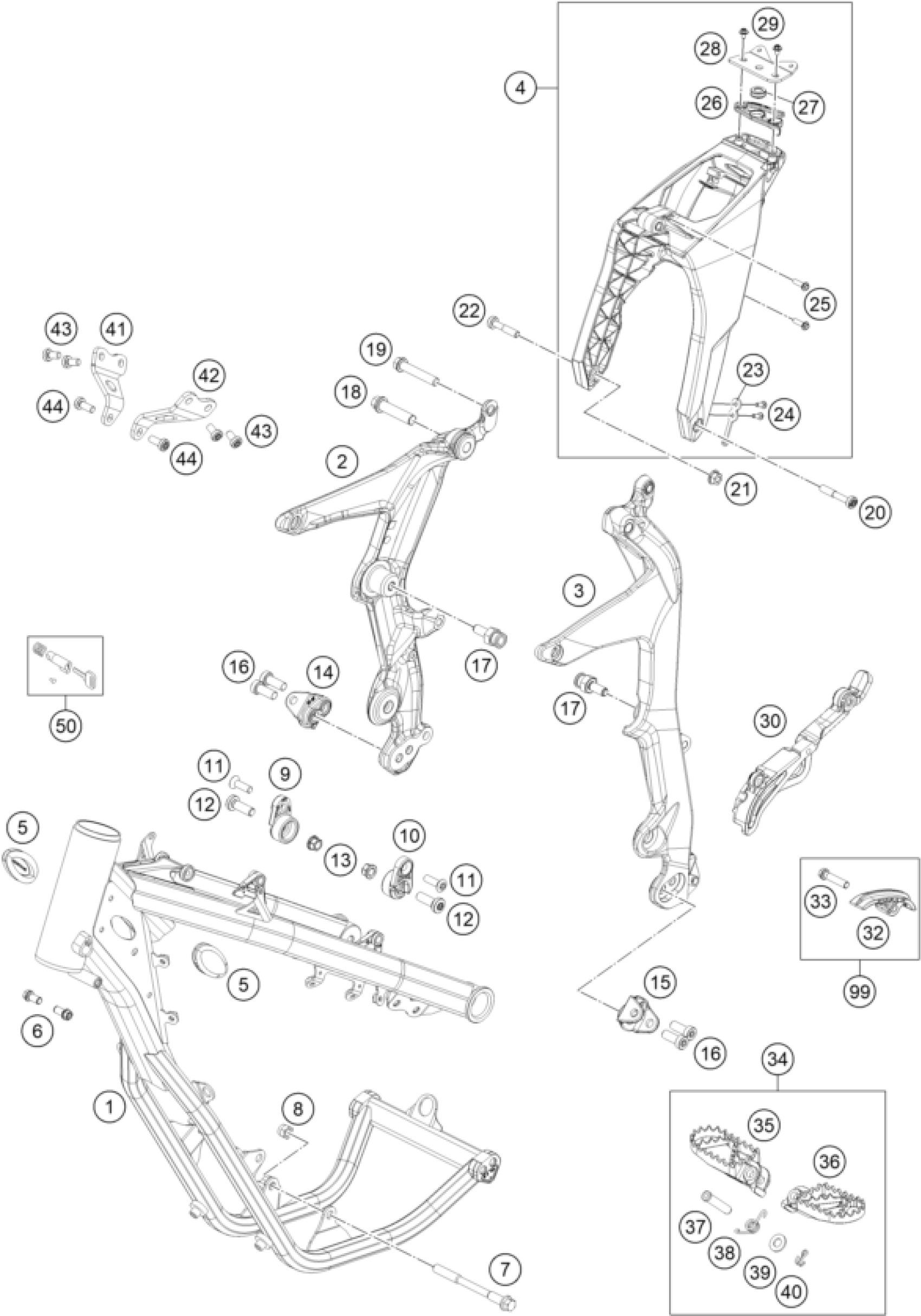

KTM Freeride 250 F 2018 FRAME Diagram

#

Description
Price

1

Frame "721R1" elec. orange

72103001000EB

Unavailable

2

Connection support right

72103001152

$297.98

3

Linkage bracket, left premount

72103101051

$330.14

4

SUBFRAME CPL.

70003002033

$285.63

5

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

6

HH collar screw M8x16 TX40 SL

0025080166S

$3.39

7

engine brac.scr. M10x115

77203014000

$8.97

8

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.54

9

FUEL TANK CARRIER R/S

72007015000

$9.81

10

FUEL TANK CARRIER L/S

72007014000

$9.81

11

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.69

12

AH collar screw M10x30 ISA45

0035100309S

$3.39

13

COLLAR NUT M10 WS=13

54630044000

Unavailable

14

FOOTREST MOUNTING R/S '12

70003039100

$45.34

15

FOOTREST MOUNTING L/S '12

70003038100

Unavailable

16

AH collar screw M10x25 ISA45

0032100256S

$4.24

17

SPECIAL SCREW M10 SW19

72003001059

Unavailable

18

MONOSHOCK SCREW TOP M12X80

70004016000

$29.44

19

HH COLLAR SCREW M10X56 WS13 08

69004094000

$5.23

20

AH collar screw M8x50 ISA45

0035080506S

$5.23

21

Self locking nut M8 10.9

54310086200

$3.39

22

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

23

SIDE STAND SPRING PLATE 12

70003024050

$14.67

24

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.54

25

PLASTIC SCREW K7X25 PT1447

0016070253

$3.39

26

SEAT LOCKING MECHANISM

70007039000

$15.42

27

BUSHING QUICK LOCK

70007039060

$11.77

28

BRACKET QUICK LOCK

70007039050

$32.62

29

HH COLLAR SCREW M6X10 TX30

0024060106

$3.39

30

Sprocket cover Freeride 350

72103096000

Unavailable

32

CHAIN SLIDING PIECE BELOW CPL.

70003053000

$5.23

33

HH collar screw M8x35 TX40

0025080356

$4.11

34

FOOTREST L/S + R/S CPL. 09

78003040033

$116.02

35

FOOTREST R/S 08

78003041050

$43.66

36

FOOTREST L/S 08

78003040050

$43.66

37

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

38

FOOTREST SPRING L/S & R/S

54603041000

$5.23

39

washer DIN 125 A 10.5

0125100003

$2.54

40

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

STEERING HEAD LOCK 08

78003035000

Unavailable

99

CHAIN SLIDING KIT BELOW

70003053010

Unavailable

41

Engine bracket right

72103014000

Unavailable

42

Engine bracket left

72103013000

Unavailable

43

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.54

44

SHCS M8x20 TX45

0035080206S

$5.32
