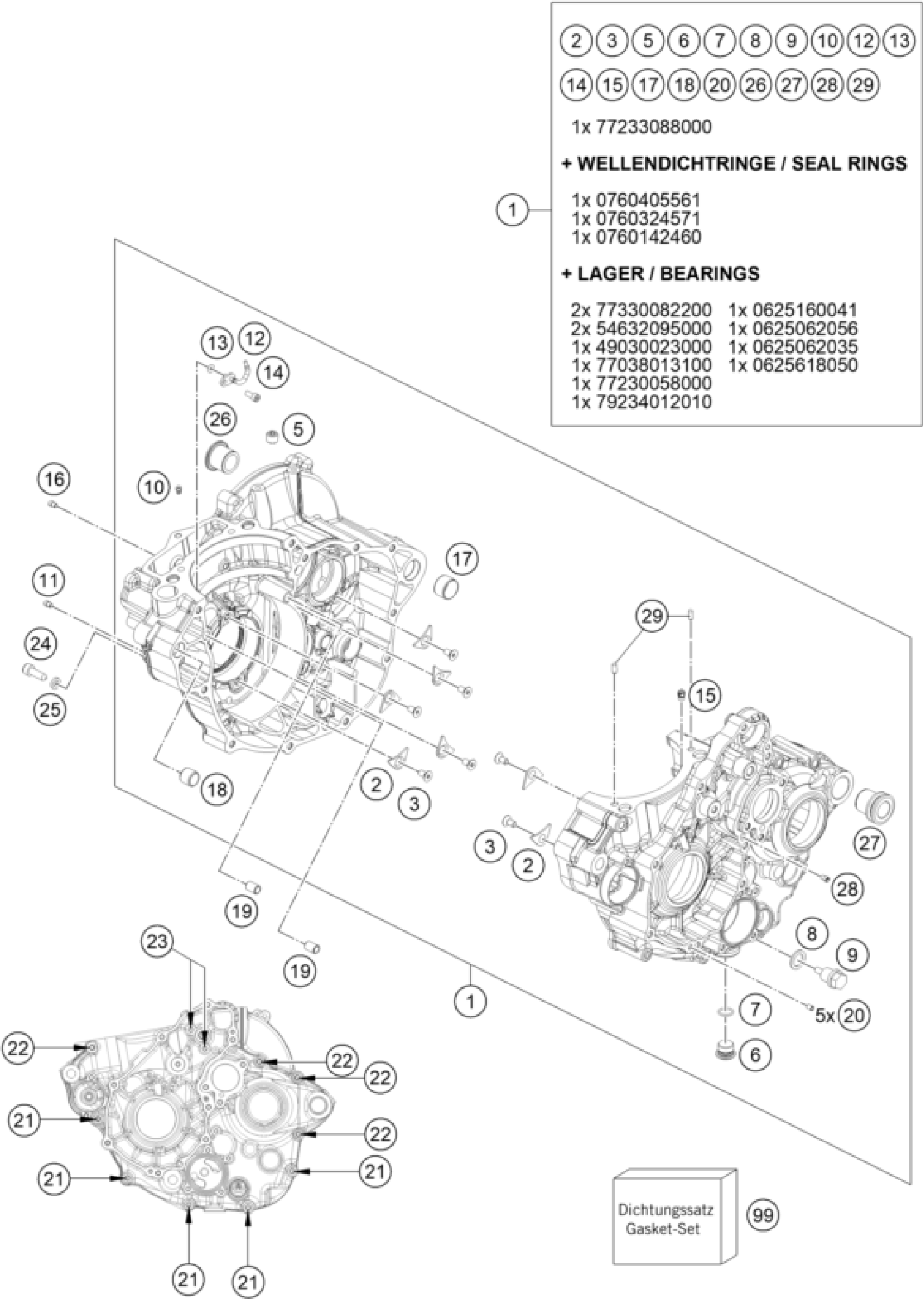

KTM Freeride 250 F 2018 ENGINE CASE Diagram

#

Description
Price

1

Engine case cpl.

79230200044

Unavailable

2

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

3

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.54

5

pipe plug DIN 906 M10x1

0906100100

$4.24

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

7

O-ring 11x1.5 VITON

0770110015

$5.23

8

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.54

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

10

OIL JET ''60'' M4

80030058060

$11.87

11

JET 44-031/150

77030058150

$4.24

12

OIL JET ANGLED 50

81230164050

$11.30

13

O-RING 3,5X2,00 NBR

0770035020

$1.69

14

AH.SCREW DIN0912-M 4X10

0912040103

$2.54

15

oil jet 50 M5

60030063050

$9.44

16

JET 100 BING(44-031/180) M4

59030058000

$4.24

17

DOWEL 17 X 19 X 12

59030024000

$5.23

18

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

19

dowel sleeve 6x8x11.5

59030023000

Unavailable

21

HH collar screw M6x55 TX30

0025060556

$3.39

22

HH COLLAR SCREW M6X65 TX30

0025060656

$2.54

23

HH COLLAR SCREW M6X70 TX30

0025060706

$3.39

24

LOCATING SCREW M8 L=25

77730080000

$4.24

25

CU-SEAL RING 8 X 14 X 3

58030081000

$2.54

26

Case bush right

72130110000

Unavailable

27

Case bush left

72130010000

Unavailable

99

GASKET KIT ENGINE 250 SX-F

79230099000

Unavailable

28

Oil jet "40" M4

80030058040

$3.39

29

CYLINDER ROLLER ZRO 5X8

0402050080

$2.54

20

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.39
