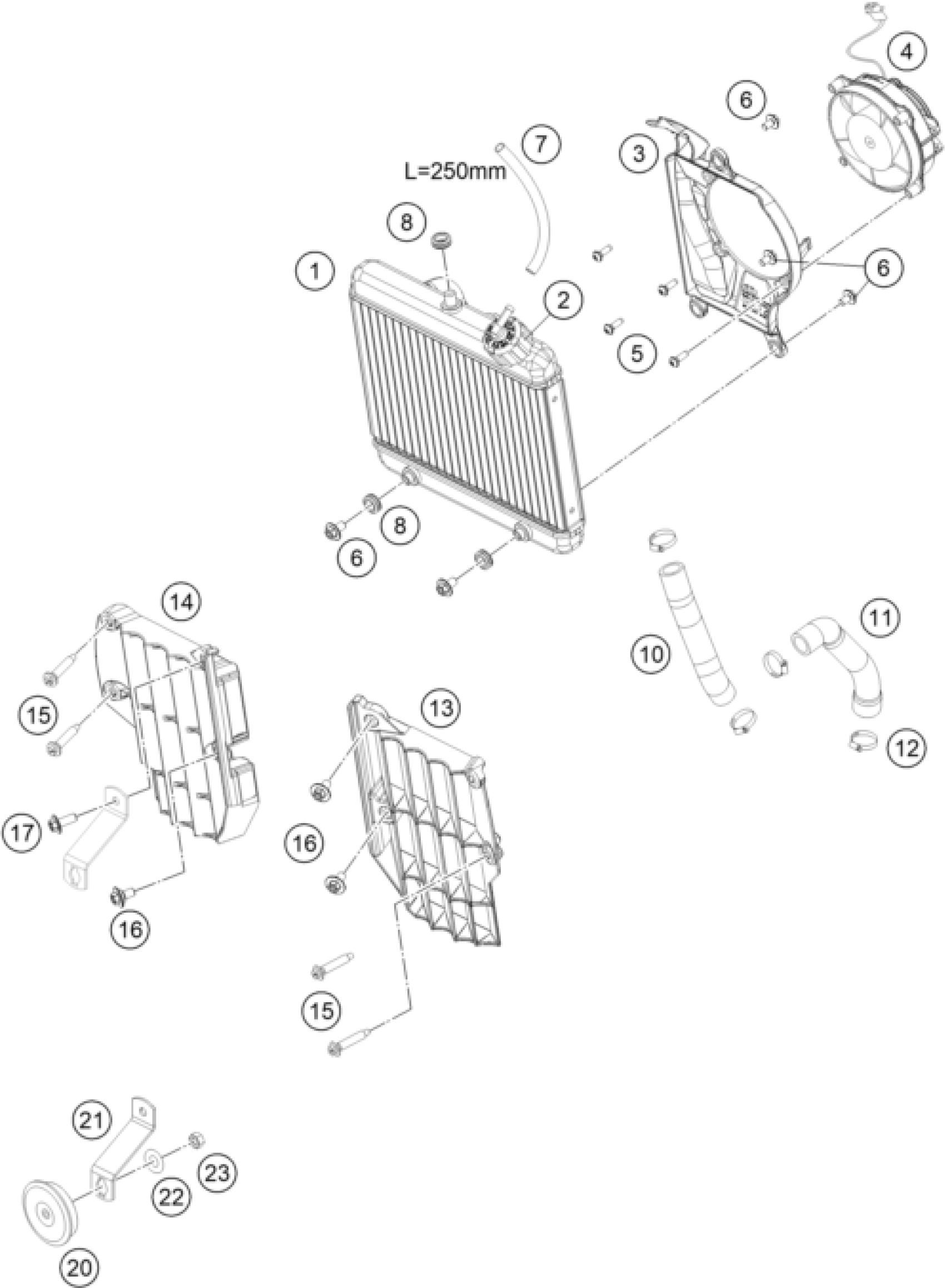

KTM Freeride 250 F 2018 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator 15710 UE

72135010000

Unavailable

2

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

3

FAN COWL

72035044000

Unavailable

4

FAN CPL. 12V LC4 2000

58435041000

Unavailable

5

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

6

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

7

PVC-HOSE 6X9

50335030001

Unavailable

8

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

Unavailable

10

Preformed hose cyl. - radiator

72135026000

Unavailable

11

Radiator hose right

72135025000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

RADIATOR PROTECTOR L/S BLACK

7203503400030

Unavailable

14

RADIATOR PROTECTOR R/S BLACK

7203503500030

Unavailable

15

Special screw K60X30 WS=6

0017060305

Unavailable

16

special screw M6x12x3

83008000012

Unavailable

17

HH collar screw M6x15 TX30

0024060156

Unavailable

20

DC HORN 12V 07

50311060200

Unavailable

21

HORN BRACKET EXC 08

78011061000

Unavailable

22

WASHER DIN0125-A 5,3

0125050003

Unavailable

23

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable
