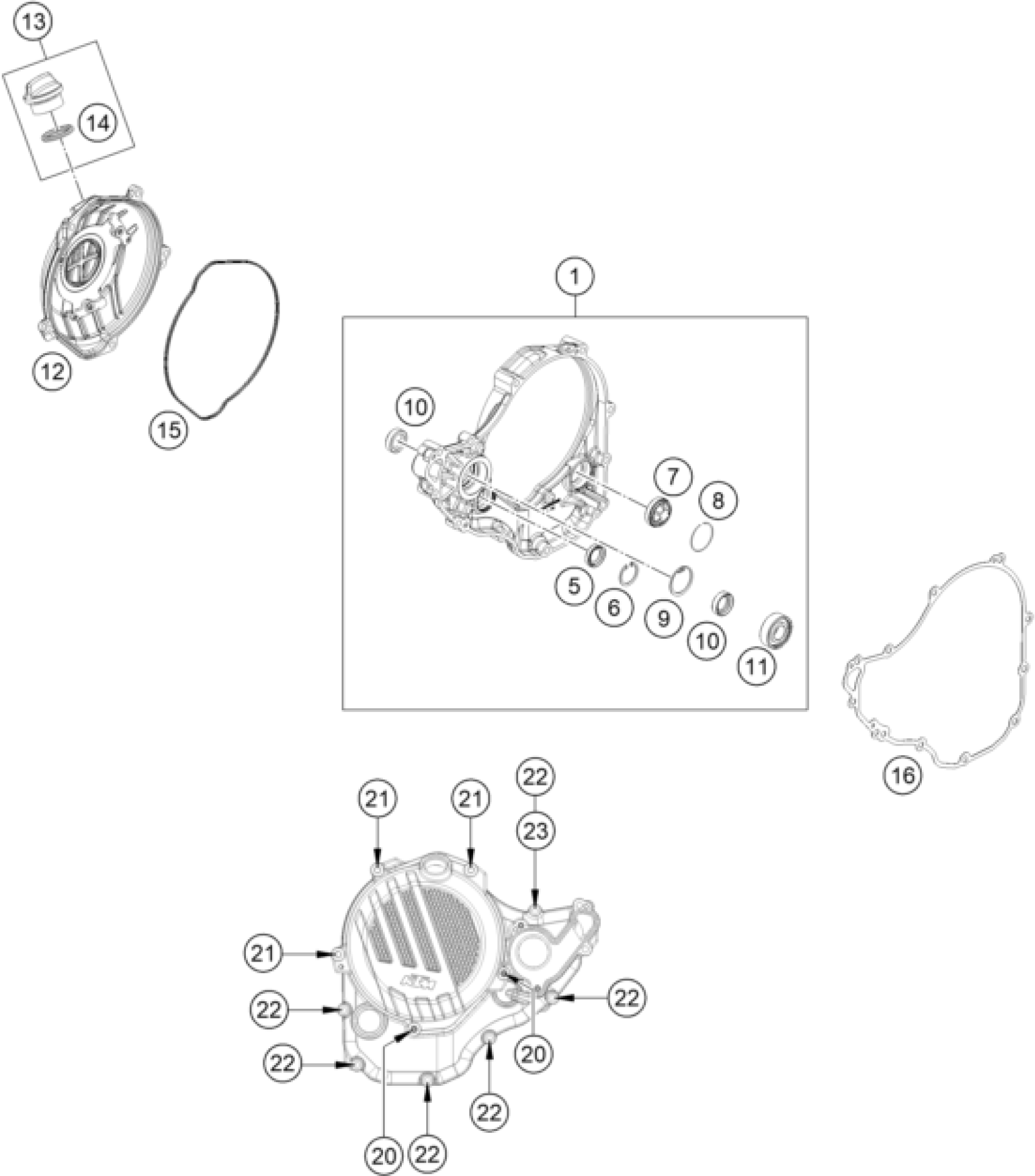

KTM Freeride 250 F 2018 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

79230001044

Unavailable

5

SHAFT SEAL RING 14X24X5 VITON

0760142450

Unavailable

6

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

7

OIL SIGHT GLASS

59030019200

Unavailable

8

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

9

CIRCLIP 30X1,2

0472300120

Unavailable

10

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

Unavailable

11

BALL BEARING 6202 C0 2

0625062022

Unavailable

12

OUTER CLUTCH COVER

7923012604415

Unavailable

13

Oil filler cap cmpl. M24x3

79430020033

Unavailable

14

O-RING 19,00X3,00 NBR

0770191015

Unavailable

15

CLUTCH COVER GASKET OUTSIDE

79230027000

Unavailable

16

CLUTCH COVER GASKET

79230025000

Unavailable

20

HH collar screw M6x20 TX30

0025060206

Unavailable

21

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

22

HH collar screw M6x25 TX30

0025060256

Unavailable

23

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
