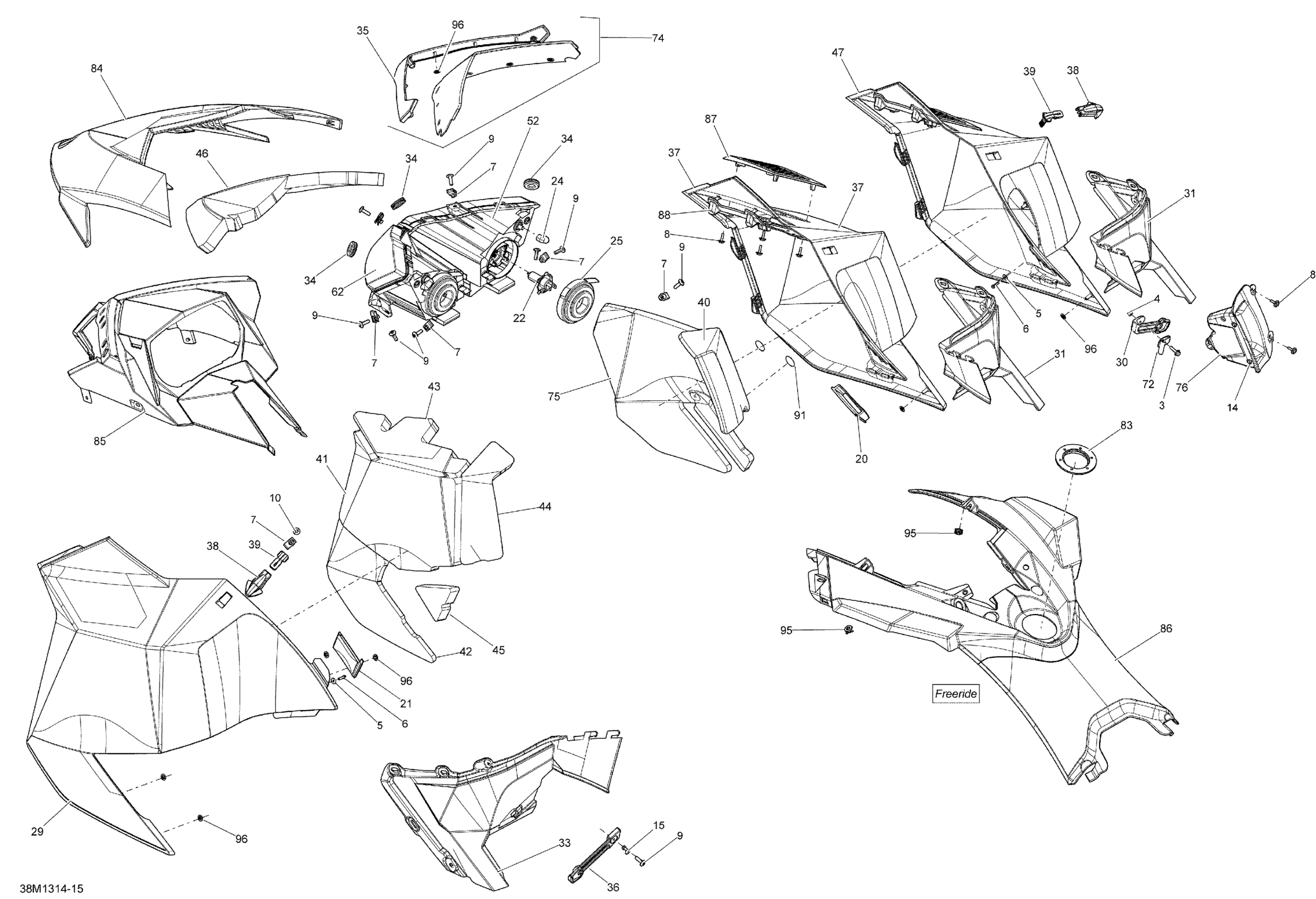

Ski-Doo FREERIDE 154R, 800RE XP, 2013 Hood, Windshield And Console Diagram

#

Description
Price

3

Torx Screw M5 X 20

250000792

$2.00

4

Hex. Flange Elastic Nut M5

233251414

$1.91

5

Flat Washer 4 mm, Stainless

234042600

$1.06

6

Hex. Flange Screw K40 X 16

241141660

$1.43

7

Panel Nut M6 X 1.0

250100198

$1.99

8

Screw M4 X 16

250000725

$3.30

9

Torx Screw M6 X 20

250000722

$1.54

10

Torx Truss Screw M6 X 16

250000721

$1.60

14

Black, Cap

275500241

$3.16

15

Pop Rivet 3/16”

293150108

$1.19

20

RH Panel Clip

513033471

$5.36

21

LH Panel Clip

513033472

$5.36

22

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

24

Cap

515176498

$11.82

25

Rubber Cap Protector

219800280

$17.13

29

PANEL_BODY LH B-346 - Call your local BRP dealership

517305219

Unavailable

30

RH Panel Latch

517303612

$9.21

31

Deep Black RH Moulding Panel

517303671

$26.09

33

Deep Black, LH Moulding Panel

517303673

$26.09

34

Grommet

517303756

$3.61

35

Windshield Support Kit

860200089

$23.85

36

LH Panel Latch

517303808

$9.61

37

PANEL_BODY RH B-346 - Call your local BRP dealership

517305217

Unavailable

38

Black Latch Kit | Includes 390 to 400

860200239

$15.64

39

Panel Latch

517303981

$9.49

40

RH Panel Rear Foam

517304884

$14.90

41

LH Panel Center Foam

517304887

$25.34

42

LH Panel Lower Foam

517304888

$20.12

43

LH Panel Upper Foam

517304889

$17.88

44

LH Panel Rear Foam

517304890

$13.54

45

Foam

517304891

$17.88

46

Hood Foam

517304913

$20.12

47

GREEN RH PANEL - Call your local BRP dealership

517305216

Unavailable

52

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

62

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

72

Latch Support

517304221

$6.30

74

Low Windshield Ass'y (140)

517304226

$99.22

75

RH Center Foam

517304883

$39.52

76

Black, RH Console | Includes 400 to 400b

517304322

$32.81

83

Console Nut

517304518

$13.37

84

Green Hood

517305210

$191.76

85

GAUGE SUPPORT - Call your local BRP dealership

517304581

Unavailable

86

CONSOLE - Call your local BRP dealership

517305211

Unavailable

87

EXTERNAL GRILL - Call your local BRP dealership

517304763

Unavailable

88

INTERNAL GRILL - Call your local BRP dealership

517304764

Unavailable

91

Adhesive Patch

518325560

$4.21

95

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

96

Push Nut

732610072

$1.97
