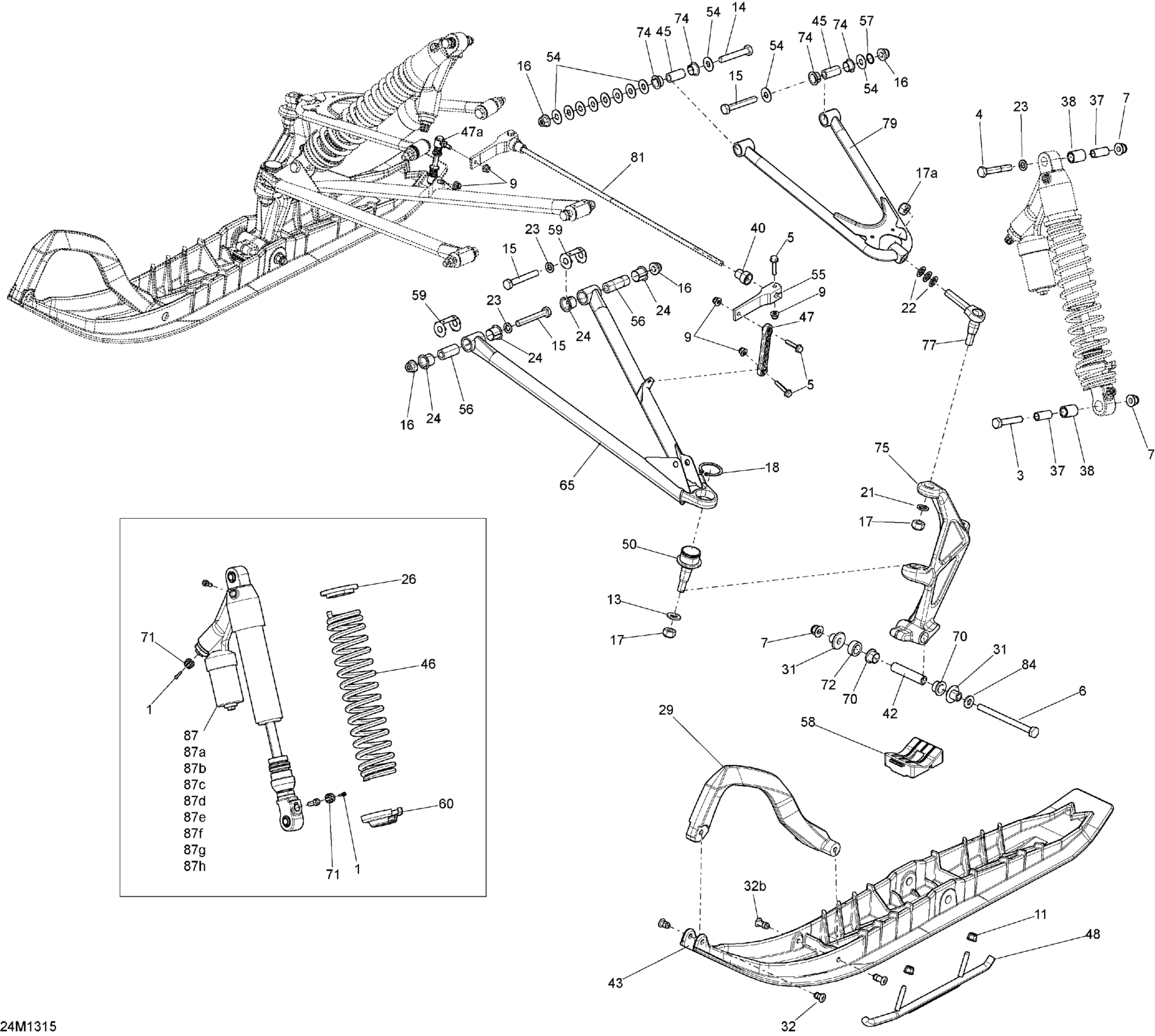

Ski-Doo FREERIDE 154R, 800RE XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Allen Screw M3 X 0.5 X 10

250000644

$2.00

3

Hex Screw M10 X 1.5 X 55

207005554

$7.09

4

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

5

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

6

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

7

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

9

Hex. Flange Elastic Nut M6

233261466

$1.91

11

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Washer

503192491

$4.25

14

Screw Hex. M10 X 60

250001023

$2.00

15

Screw Hex. M10 X 70

250001024

$2.00

16

Hex. Flange Elastic Nut M10

250100165

$0.81

17

Hex Elastic Nut M12 X 1.25

232521464

$2.00

17a

Hex. Elastic Hex. Nut M12

250100089

$0.45

18

Circlip

293370035

$2.48

21

Washer

503189276

$3.10

22

Washer

503189276

$3.10

23

Washer

503189564

$0.70

24

Cushion

503191766

$5.54

29

Black, Handle

505072976

$34.30

31

Ski Bushing

505071781

$14.90

32

Retainer 17mm long

505071812

$4.30

32b

Retainer 23mm Long

505072133

$4.88

40

Bushing

505072064

$2.15

42

Spacer

506133300

$19.37

43

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$170.12

45

Sleeve

505072143

$8.36

46

Deep Black Spring | North America Models

505073315

$85.79

47

Sway Bar Double Joint Link

505072204

$18.63

47a

DISCONNECT ROD - Call your local BRP dealership This part replaces 505073116.

860200667

Unavailable

48

Round Carbide Runner

860201043

$140.27

50

Ball Joint

505073636

$48.48

54

Washer

505072392

$4.51

55

Stabilisator Lever

505072394

$15.64

56

Aluminum Bushing

505072401

$15.64

57

O-Ring

505072448

$2.18

58

Ski Stopper

505072594

$17.13

59

Wear Plate

505072634

$4.31

60

Spring Stopper

503194270

$16.39

65

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

65

LH LOWER ARM - Call your local BRP dealership

505072655

$235.04

70

Leg Bushing

505072690

$5.75

71

Adjustment Knob

505072753

$2.01

72

Spacer

505072807

$17.13

74

Bushing

505073018

$7.18

75

Orange LH Ski Leg

505073275

Unavailable

75

Orange RH Ski Leg

505073276

Unavailable

77

Upper Ball Joint

505072257

$16.39

79

LH UPPER ARM - Call your local BRP dealership

505073188

Unavailable

79

RH UPPER ARM - Call your local BRP dealership

505073190

Unavailable

81

Stabilisator

505072602

$70.12

84

Washer

503192496

$0.73

87

LH FRONT SHOCK HPG, SS41-43 - Call your local BRP dealership | Includes 87 to 87h

505072937

Unavailable

87

RH FRONT SHOCK HPG, SS41-43 - Call your local BRP dealership | Includes 87 to 87h

505072938

Unavailable

87a

SHOCK ADJUSMENT DECAL - Call your local BRP dealership

516005548

Unavailable

87b

O-Ring

415093804

$4.25

87c

O-Ring

505070400

$4.25

87d

Screw | Not Shown

505070399

$3.88

87e

Air Valve

505070398

$17.13

87f

Piston Ring | Not Shown

415093806

$14.52

87g

O-Ring

415093807

$33.55

87h

Not Available As Spare Part - Friction Washer

Unavailable
