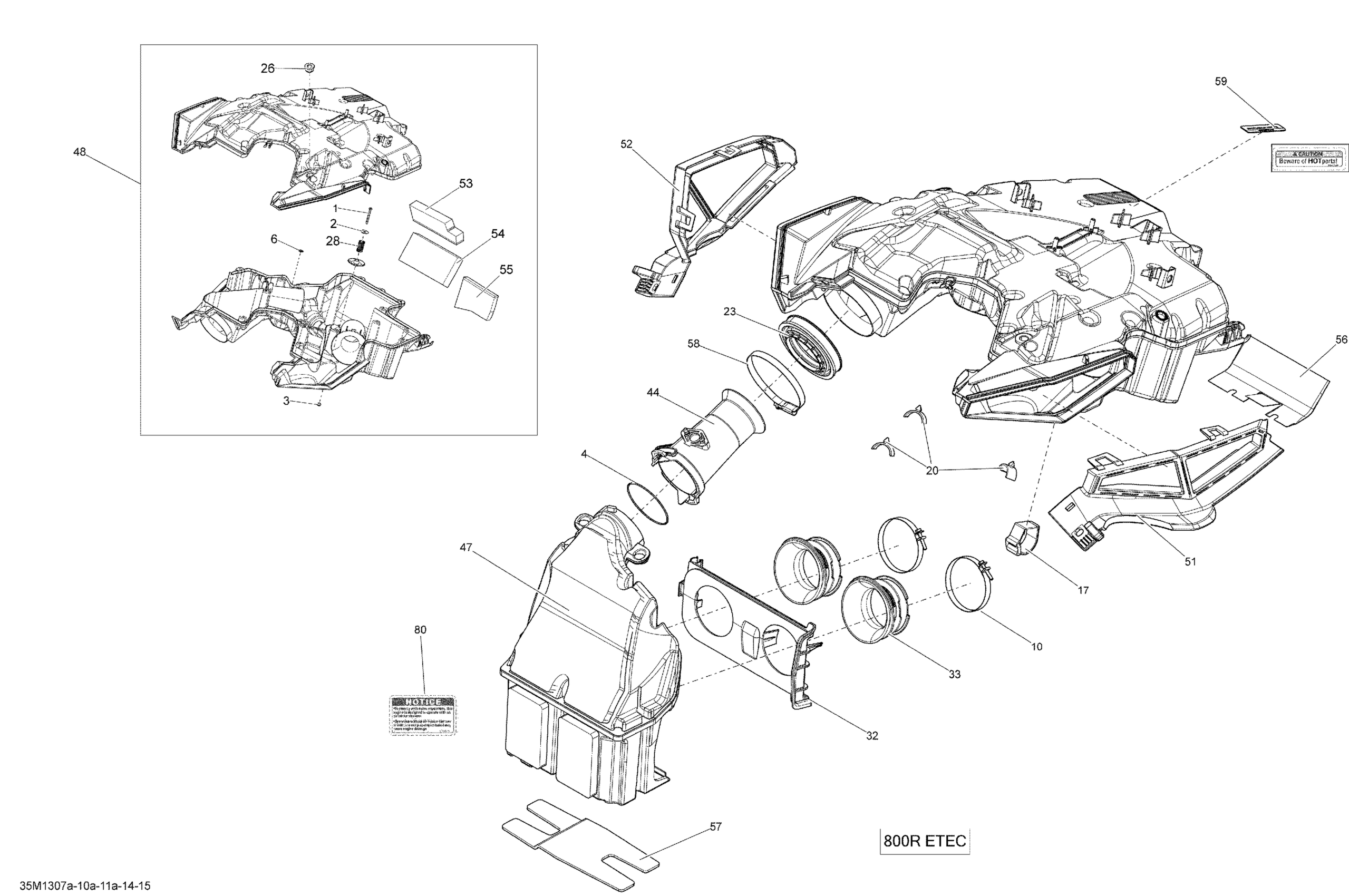

Ski-Doo FREERIDE 154R, 800RE XP, 2013 Air Intake System Diagram

#

Description
Price

1

Socket Head Screw M4 X 40 | X

205444086

$1.63

2

Flat Washer

224060201

$1.12

3

Elastic Stop Nut M4

232541414

$0.55

4

O-Ring

293300115

$3.01

6

Push Nut

389804300

$0.49

10

Gemi Clamp

508000346

$9.03

17

Velcro Strip

508000820

$7.13

20

Stopper

508000537

$7.13

23

Boot

508000567

$16.39

26

Grommet

508000574

$7.13

28

Spring

508000576

$7.13

32

Plate Adapter

508000613

$17.88

33

Air Intake Adapter

508000614

$17.88

44

Flute

508000662

$13.24

47

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

48

Secondary Chamber Ass'y | 800RE

508000683

$150.72

51

RH Intake Air Filter | 800RE

508000688

$26.09

52

LH Intake Air Filter | 800RE

508000689

$26.09

53

LH UPPER FOAM - Call your local BRP dealership | 800RE

508000696

Unavailable

54

LH LOWER FOAM - Call your local BRP dealership | 800RE

508000697

Unavailable

55

RH LOWER FOAM - Call your local BRP dealership | 800RE

508000706

Unavailable

56

HEAT SHIELD - Call your local BRP dealership | 800RE

508000720

Unavailable

57

Insulated Foam

508000739

$8.13

58

Norma Clamp

514052924

$12.15

59

Caution Decal Hot Parts

516005280

Unavailable

80

Notice Decal, Air Intake Silencer

516005876

$4.00
