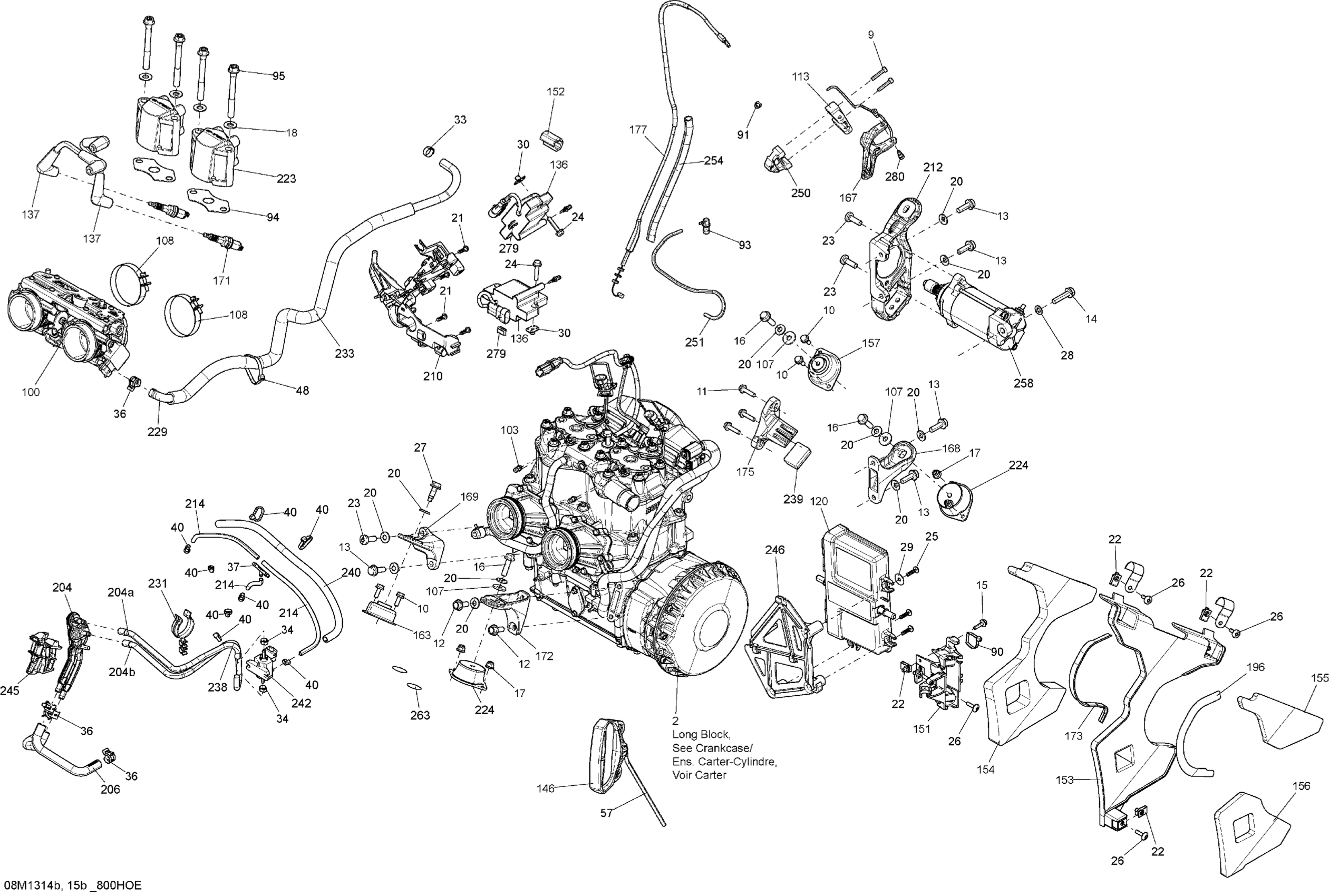

Ski-Doo FREERIDE 154R, 800RE XP, 2013 Engine And Engine Support 800 Diagram

#

Description
Price

2

Not Available As Spare Part - Friction Washer

Unavailable

9

Socket Screw M5 X 25

205052544

$1.34

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

11

Hex. Flange Screw M6 X 25

207562544

$1.39

12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

14

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

15

Hex.Flange Screw M5 X 20

207652044

$1.56

16

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Flat Washer 10 mm

234001410

$0.98

20

Conical Spring Washer M8

250200146

$0.83

21

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

22

Panel Nut M5 X 0.8

250000958

$3.48

23

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

23

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

24

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

25

Truss Head Torx Screw K50 X 20

250000297

$2.06

26

Torx Screw M5 X 20

250000528

$1.74

27

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

28

Flat Washer With Teflon 8 mm

250200008

$3.12

29

Flat Washer

250200040

$1.82

30

Nut Welded, M6

293100003

$6.32

33

Oetiker Clamp

293650046

$2.33

34

Oetiker Gear Clamp

293650043

$2.70

36

Norma Spring Clamp

293650214

$15.35

37

T-Fitting

293710068

$6.59

40

Tie Wrap 94 mm | 4X4

293750001

$0.83

48

Tie Wrap 368 mm

293750008

$0.85

90

Tie-Rap 180 mm

414115200

$0.09

91

Circlip

414274500

$0.74

93

Male Connector

414814100

$2.18

94

Gasket

420430930

$4.60

95

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

100

Throttle Body

420889202

$1,254.58

103

Hose Nipple

420924724

$12.29

107

Yellow, Washer

503183200

$3.00

108

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

113

Upper Housing | FREERIDE

512059969

$81.51

120

Calibrated Module

512060756

$769.99

136

Ignition Coil

512060953

$129.97

137

Ignition Cable, 177mm long

512061126

$27.66

146

Starter Grip

512060136

$14.54

151

Solenoid Support

512060298

$12.52

152

Protector

512060313

$9.31

153

NOISE SHIELD - Call your local BRP dealership

512060339

$14.95

154

Interior Noise Foam

512060343

$18.43

155

Upper Exterior Noise Foam

512060344

$9.31

156

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

157

Rubber Mount

512060387

$42.28

163

Rubber Mount

512060448

$42.28

167

Throttle Handle Ass'y

512061252

$117.66

168

Front Support, MAG

512060469

$31.51

169

Rear Support, PTO

512060478

$29.97

171

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$32.28

172

Rear Support, MAG

512060559

$29.97

173

Heat Shield

512060574

$7.35

175

Stopper Support

512060576

$28.43

177

Throttle Cable

512060667

$57.66

196

Heat Shield

512060575

$7.35

204

Manifold

512060692

$43.05

204a

SPRING - Call your local BRP dealership

512060814

$4.14

204b

SPRING - Call your local BRP dealership

512060807

$4.14

206

LH Formed Hose

512060695

$7.80

206

RH Formed Hose

512060694

$7.80

210

Ignition Coils Support

512060888

$10.52

212

Front Support, PTO

512060714

$85.35

214

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

223

Fuel Injector | Includes 13 to 16

512061054

$339.99

224

Rubber Mount

512060729

$69.97

229

FORMED HOSE, OUTPUT - Call your local BRP dealership | 800RE Except GSX

512060741

Unavailable

231

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

233

Tubing 16 Mm 1000Mm Long

219704408

$6.23

238

Polyurethane Hose 10000Mm Long

219704410

$46.12

240

Tubing 10 MM 1000MM Long

219704407

$2.20

242

Solenoid Valve

270600005

$39.62

245

Manifold Support

512060822

$10.52

246

Calibrated Module Support

512060858

$12.52

250

Lower Housing

512059537

$73.05

251

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

258

Starter

515178473

$319.49

263

Adhesive Patch

518325560

$4.34

279

Clip

710000992

$4.00

280

Flange Screw

732601143

$4.02
